Açıklama
Elektrik Verisi
Ratings per IEC/EN
| Ratings note | Electrical ratings are given by the fuse and blown fuse indication. |
| Anma gerilimi (III / 3) | 250 V |
| Nominal akım | 6,3 A |
| Note on rated current | Leakage current in case of a blown fuse: LED 2 mA |
| Çalışma göstergesi | 120 V |

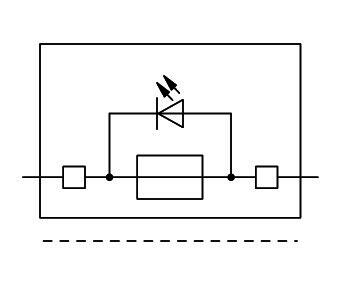

| Blown fuse indication | gösterge lambalı |
| Legend (ratings) |
Power loss
| Note on max. power loss P v max | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. |
General
| Fuse type | Cylindrical fuse; 5 x 20 mm |
Geometrical Data
| Width | 6,1 mm / 0.24 inches |
Mekanik Veri
| Etiketleme seviyesi | Ortaya etiketleme |
Material Data
| Note (material data) | Information on material specifications can be found here |
| Renk | gri |
| Malzeme grubu | I |
| İzolasyon malzemesi | Poliamid 66 (PA 66) |
| UL 94'e göre tutuşabilirlik değeri | V0 |
| Yangın yükü | 0,063 MJ |
| Ağırlık | 4,2 g |
Environmental Requirements
| Continuous operating temperature | -60 … +105 °C |
Ticari Veri
| Product Group | 22 (TOPJOB S) |
| eCl@ss 10.0 | 27-14-11-49 |
| eCl@ss 10.0 | 27-14-11-49 |
| ETIM 8.0 | EC002018 |
| ETIM 8.0 | EC002018 |
| Pack. unit | 50 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4050821214267 |
| SAP tesis 01'den gümrük tarifesi no. | 85366990990 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
| SCIP notification number (Austria) | 19c2e1a6-75f4-4779-9276-bed5e4dccae2 |
| SCIP notification number (Belgium) | 4ffe5728-ca4e-4922-b80e-24b2ca55b5a8 |
| SCIP notification number (Bulgaria) | a266c9df-d60b-43aa-a97f-2617f1004633 |
| SCIP notification number (Czech Republic) | dc948bdf-2102-49be-bbd8-da8d158d0048 |
| SCIP notification number (Denmark) | ddb7f637-dd9e-400e-9252-735696948481 |
| SCIP notification number (Finland) | 3a8c992d-9f3e-4446-8843-9df00b2fbc64 |
| SCIP notification number (France) | 86fd0b6a-aafe-453a-b677-90eef81d4a1f |
| SCIP notification number (Germany) | e66ac764-c3ff-4d1b-8195-d335256c4b17 |
| SCIP notification number (Hungary) | 84070a69-9775-4a6a-85eb-d6709123732e |
| SCIP notification number (Italy) | 31f9ace3-c28e-4f97-aab7-21bb002e7d02 |
| SCIP notification number (Netherlands) | 2bf5eaf3-e021-4eb4-9f5b-c4d5317818d5 |
| SCIP notification number (Poland) | a54a8faa-7da9-400d-91fd-81c9d37da699 |
| SCIP notification number (Romania) | 2b2e9748-9876-411e-8654-1aae183f4e55 |
| SCIP notification number (Sweden) | 9b70ef7b-90b9-4269-9883-2c787a332cd4 |
