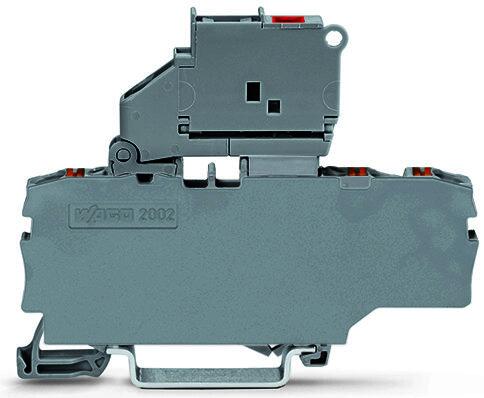

Açıklama

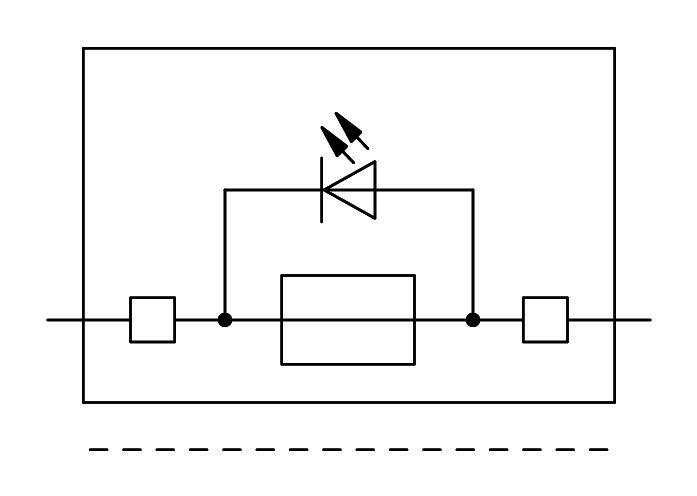

Elektrik Verisi
Ratings per IEC/EN
1'e göre derecelendirme
IEC/EN 60947-7-3
Overvoltage category
III
III
II
Pollution degree
3
2
2
Anma gerilimi
250 V
-
-
Şok gerilimi
6 kV
-
-
Nominal akım
6.3 A
-
-
Approvals per UL 1059
Approvals per
UL 1059
Use group
B
C
D
Rated voltage
250 V
Rated current
10 A
10 A
-
Approvals per CSA
Approvals per
CSA 22.2 No 158
Use group
B
C
D
Rated voltage
250 V
Rated current
10 A
Ex information
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
| Ratings per | ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc) |
| Anma gerilimi EN (Ex e II) | 275 V |
| Nominal akım (Ex e II) | 6,3 A |
Power loss
| Note on max. power loss P v max | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. |
| Power loss P l max. overload and short-circuit protection (individual arrangement) | 1,6 W |
| Power loss P l max. overload and short-circuit protection (group arrangement) | 1,6 W |
| Power loss P l max. short-circuit protection (individual arrangement) | 2,5 W |
| Power loss P l max. short-circuit protection (group arrangement) | 2,5 W |
General
| Fuse mounting | pivoting |
| Fuse type | Cylindrical fuse; 5 x 20 mm |
Bağlantı verisi
| Toplam bağlantı noktası sayısı | 3 |
| Toplam potansiyel sayısı | 1 |
| Seviye sayısı | 1 |
| Number of jumper slots | 2 |
Connection 1
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Actuation type | Basmalı buton |
| Connectable conductor materials | Bakır |
| Nominal kesit | 2,5 mm² |
| Tek damarlı boylar | 0,25 … 4 mm² / 22 … 12 AWG |
| tek damarlı, doğrudan takılabilir | 0,75 … 4 mm² / 18 … 12 AWG |
| İnce bükümlü kablolar | 0,25 … 4 mm² / 22 … 12 AWG |
| İnce bükümlü kablolar, yalıtımlı yüksüklü | 0,25 … 2,5 mm² / 22 … 14 AWG |
| min. ince bükümlü, yalıtımlı yüksüklü, bastırarak sonlandırma | 1 … 2,5 mm² / 18 … 14 AWG |
| Not (iletken kesiti) | İletken karakteristiğine bağlı olarak, daha küçük enine kesite sahip bir iletken de itmeli sonlandırma yoluyla yerleştirilebilir. |
| Sıyırma uzunluğu | 10 … 12 mm / 0.39 … 0.47 inches |
| Kablolama tipi | Önden girişli kablolama |

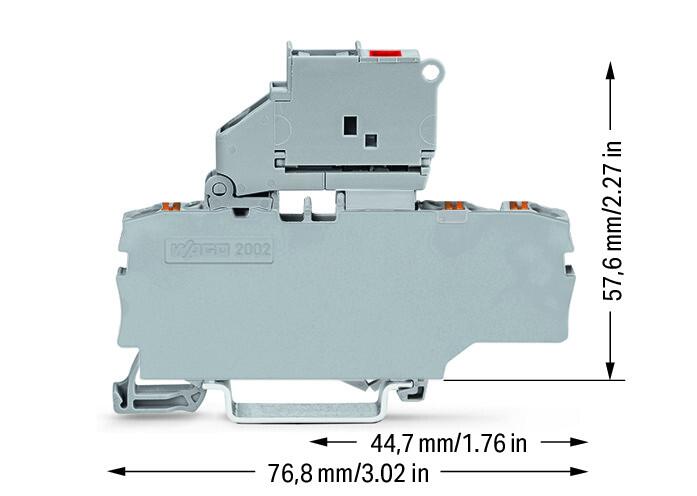

Geometrical Data
| Width | 6,2 mm / 0.244 inches |
| Height | 76,8 mm / 3.024 inches |
| Length from upper-edge of DIN-35 rail | 57,6 mm / 2.268 inches |
Mekanik Veri
| Montaj tipi | DIN-35 ray |
| Etiketleme seviyesi | Ortaya/yana etiketleme |
Material Data
| Note (material data) | Information on material specifications can be found here |
| Renk | gri |
| Malzeme grubu | I |
| İzolasyon malzemesi | Poliamid 66 (PA 66) |
| UL 94'e göre tutuşabilirlik değeri | V0 |
| Yangın yükü | 0,11 MJ |
| Ağırlık | 15,2 g |
Environmental Requirements
| İşlem sıcaklığı | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C |
Ticari Veri
| ETIM 8.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| Recupel Type | |
| Pack. unit | 50 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4055143962131 |
| SAP tesis 01'den gümrük tarifesi no. | 85369095000 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
