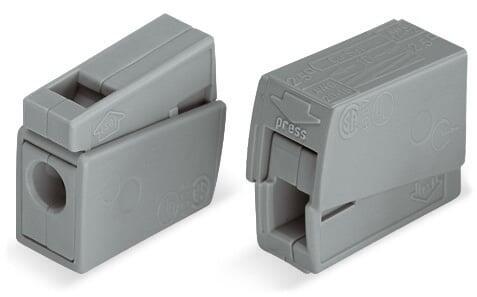

Açıklama
Notes
| Güvenlik bilgisi | topraklanmış elektrik hatlarında |
Elektrik Verisi
Ratings per IEC/EN
1'e göre derecelendirme
EN 60664
Overvoltage category
III
III
II
Pollution degree
3
2
2
Anma gerilimi
-
-
400 V
Şok gerilimi
-
-
4 kV
Nominal akım
-
-
24 A
Bağlantı verisi
| Toplam bağlantı noktası sayısı | 2 |
| Toplam potansiyel sayısı | 1 |
Connection 1
| Connection type (1) | Tesisat tarafı |
| Bağlantı teknolojisi | PUSH WIRE® |
| Connection type (1) | 1 |
| Actuation type | Bastırmalı |
| Connectable conductor materials | Bakır Alüminyum |
| Connectable conductor materials | Terminating Aluminum Conductors WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination. “Alu-Plus” Contact Paste Advantages:
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste. For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste. It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination. Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:: 2.5 mm² = 16 A 4 mm² = 22 A |
| Tek damarlı boylar | 1 … 2,5 mm² / 14 … 12 AWG |
| Sıyırma uzunluğu | 9 … 11 mm / 0.35 … 0.43 inches |
| Kablolama tipi | Yandan girişli kablolama |
Connection 2
| Connection type (2) | Aydınlatma tarafı |
| Bağlantı tipi 2 | CAGE CLAMP® |
| Connection type (2) | 1 |
| tek damarlı, bağlanabilir | 0,5 … 2,5 mm² / 20 … 16 AWG |
| ince bükümlü, bağlanabilir | 0,5 … 2,5 mm² / 20 … 16 AWG |
Geometrical Data
| Width | 8 mm / 0.315 inches |
| Height | 15,5 mm / 0.61 inches |
| Depth | 20,4 mm / 0.803 inches |
Material Data
| Note (material data) | Information on material specifications can be found here |
| Renk | gray |
| Yangın yükü | 0,04 MJ |
| Ağırlık | 1,8 g |
Environmental Requirements
| Surrounding air (operating) temperature | +60 °C |
| Continuous operating temperature | 105 °C |
Ticari Veri
| eCl@ss 10.0 | 27-14-11-03 |
| eCl@ss 10.0 | 27-14-11-03 |
| ETIM 8.0 | EC000447 |
| ETIM 8.0 | EC000447 |
| Pack. unit | 1000 (100) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | CH |
| GTIN | 4044918583817 |
| SAP tesis 01'den gümrük tarifesi no. | 85369010000 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
