Açıklama
Notes
| Güvenlik bilgisi | topraklanmış elektrik hatlarında |
Elektrik Verisi
Ratings per IEC/EN
1'e göre derecelendirme
IEC/EN 60998
Overvoltage category
III
III
II
Pollution degree
3
2
2
Anma gerilimi
-
-
450 V
Şok gerilimi
-
-
4 kV
Nominal akım
-
-
24 A
Approvals per UL 1059
Approvals per
UL 486C
Use group
B
C
D
Rated voltage
-
Rated current
-
Bağlantı verisi
| Toplam bağlantı noktası sayısı | 2 |
| Toplam potansiyel sayısı | 1 |
Connection 1
| Bağlantı teknolojisi | PUSH WIRE® |
| Actuation type | Bastırmalı |
| Connectable conductor materials | Bakır Alüminyum |
| Connectable conductor materials | Terminating Aluminum Conductors WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination. “Alu-Plus” Contact Paste Advantages:
For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste. It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination. Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:: 2.5 mm² = 16 A 4 mm² = 22 A |
| Tek damarlı boylar | 0,5 … 2,5 mm² / 20 … 16 AWG |
| Sıyırma uzunluğu | 11 mm / 0.43 inches |
| Kablolama tipi | Yandan girişli kablolama |

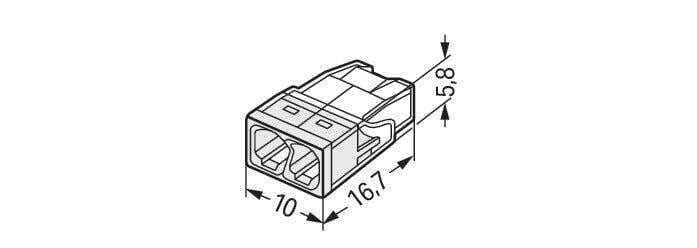

Geometrical Data
| Width | 10 mm / 0.394 inches |
| Height | 5,8 mm / 0.228 inches |
| Depth | 16,7 mm / 0.657 inches |
Material Data
| Note (material data) | Information on material specifications can be found here |
| Renk | şeffaf |
| Renk | beyaz |
| UL 94'e göre tutuşabilirlik değeri | V2 |
| Yangın yükü | 0,022 MJ |
| Ağırlık | 0,7 g |
Environmental Requirements
| Surrounding air (operating) temperature | +60 °C |
| Continuous operating temperature | 105 °C |
| T-Marking per EN 60998 | T60 |
Ticari Veri
| Product Group | 7 (Push Wire Conn.) |
| eCl@ss 10.0 | 27-14-11-04 |
| eCl@ss 10.0 | 27-14-11-04 |
| ETIM 8.0 | EC000446 |
| ETIM 8.0 | EC000446 |
| Pack. unit | 1000 (100) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4050821027843 |
| SAP tesis 01'den gümrük tarifesi no. | 85369010000 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
