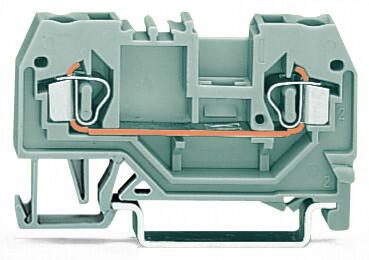

Açıklama
Elektrik Verisi
Ratings per IEC/EN
1'e göre derecelendirme
IEC/EN 60947-7-1
Overvoltage category
III
III
II
Pollution degree
3
2
2
Anma gerilimi
800 V
-
-
Şok gerilimi
8 kV
-
-
Nominal akım
24 A
-
-
Approvals per UL 1059
Approvals per
UL 1059
Use group
B
C
D
Rated voltage
-
600 V
-
Rated current
-
20 A
-
Approvals per CSA
Approvals per
CSA 22.2 No 158
Use group
B
C
D
Rated voltage
-
600 V
-
Rated current
-
24 A
-
Power loss
| Power loss, per pole (potential) | 0,766 W |
| Rated current I N for specified power loss | 24 A |
| Resistance value for specified, current-dependent power loss | 0,001 Ω |

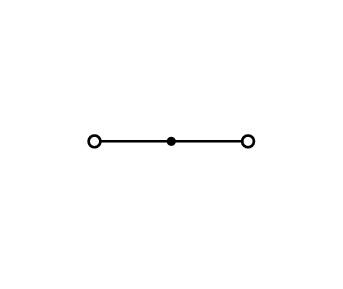

Bağlantı verisi
| Toplam bağlantı noktası sayısı | 2 |
| Toplam potansiyel sayısı | 1 |
| Seviye sayısı | 1 |
Connection 1
| Bağlantı teknolojisi | CAGE CLAMP® |
| Actuation type | El aleti |
| Connectable conductor materials | Bakır Alüminyum Copper Aluminum |
| Connectable conductor materials | Terminating Aluminum Conductors WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination. “Alu-Plus” Contact Paste Advantages:
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste. It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination. Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:: 2.5 mm² = 16 A 4 mm² = 22 A |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Not (iletken kesiti) | 12 AWG: THHN, THWN |
| Sıyırma uzunluğu | 8 … 9 mm / 0.31 … 0.35 inches |
| Kablolama tipi | Önden girişli kablolama |

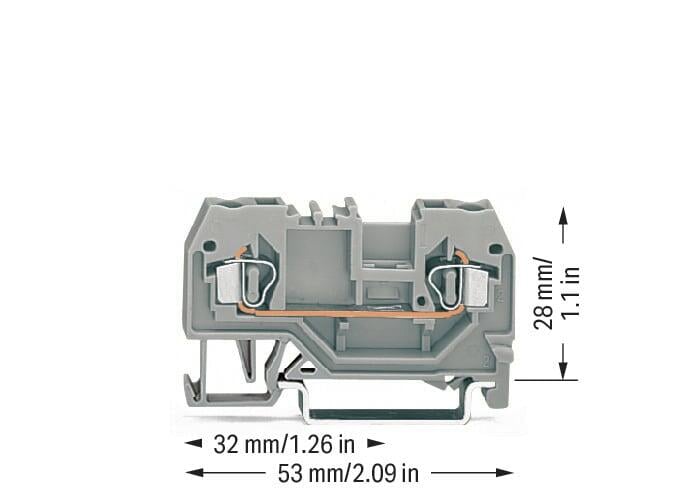

Geometrical Data
| Width | 5 mm / 0.197 inches |
| Height | 53 mm / 2.087 inches |
| Length from upper-edge of DIN-35 rail | 28 mm / 1.102 inches |
Mekanik Veri
| Montaj tipi | DIN-35 ray DIN 35 ray |
| Etiketleme seviyesi | Ortaya etiketleme |
Material Data
| Note (material data) | Information on material specifications can be found here |
| Renk | gri |
| Malzeme grubu | I |
| İzolasyon malzemesi | Poliamid 66 (PA 66) |
| UL 94'e göre tutuşabilirlik değeri | V0 |
| Yangın yükü | 0,096 MJ |
| Ağırlık | 5,4 g |
Environmental Requirements
| İşlem sıcaklığı | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C |
Ticari Veri
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 10.0 | 27-14-11-20 |
| ETIM 8.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| Pack. unit | 100 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | PL |
| GTIN | 4044918391726 |
| SAP tesis 01'den gümrük tarifesi no. | 85369010000 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
