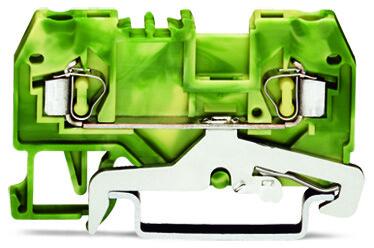

Açıklama
Elektrik Verisi
Ratings per IEC/EN
1'e göre derecelendirme
IEC/EN 60947-7-2
Overvoltage category
III
III
II
Pollution degree
3
2
2
Anma gerilimi
-
Şok gerilimi
-
Nominal akım
-

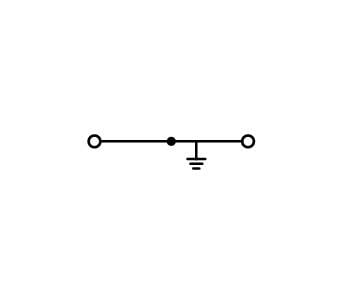

Bağlantı verisi
| Toplam bağlantı noktası sayısı | 2 |
| Toplam potansiyel sayısı | 1 |
| Seviye sayısı | 1 |
Connection 1
| Bağlantı teknolojisi | CAGE CLAMP® |
| Actuation type | El aleti |
| Connectable conductor materials | Bakır Alüminyum |
| Connectable conductor materials | Terminating Aluminum Conductors WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination. “Alu-Plus” Contact Paste Advantages:
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste. It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination. Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:: 2.5 mm² = 16 A 4 mm² = 22 A |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Not (iletken kesiti) | 12 AWG: THHN, THWN |
| Sıyırma uzunluğu | 8 … 9 mm / 0.31 … 0.35 inches |
| Kablolama tipi | Önden girişli kablolama |
Geometrical Data

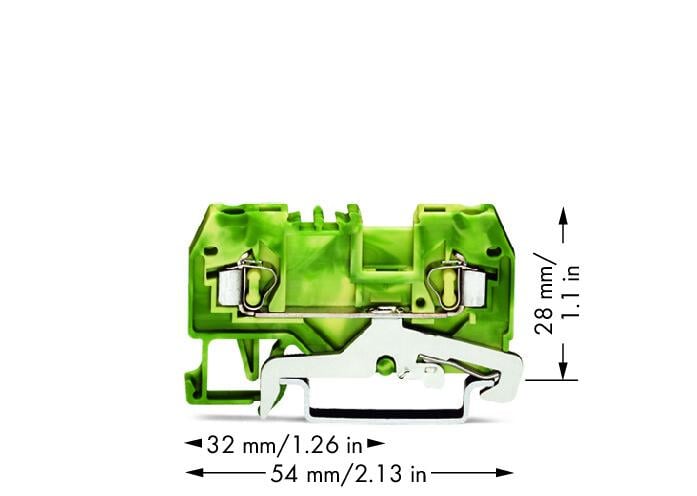

| Width | 5 mm / 0.197 inches |
| Height | 54 mm / 2.126 inches |
| Length from upper-edge of DIN-35 rail | 28 mm / 1.102 inches |
Mekanik Veri
| Tasarım | yatay tip |
| Montaj tipi | DIN-35 ray |
| Etiketleme seviyesi | Ortaya etiketleme |
Material Data
| Note (material data) | Information on material specifications can be found here |
| Renk | yeşil-sarı |
| Malzeme grubu | I |
| İzolasyon malzemesi | Poliamid 66 (PA 66) |
| UL 94'e göre tutuşabilirlik değeri | V0 |
| Yangın yükü | 0,09 MJ |
| Ağırlık | 9,2 g |
Environmental Requirements
| İşlem sıcaklığı | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C |
Ticari Veri
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 10.0 | 27-14-11-41 |
| ETIM 8.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| Pack. unit | 100 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454100179 |
| SAP tesis 01'den gümrük tarifesi no. | 85369010000 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) 7(a) 7(c)-I 7(c)-II |
| SCIP notification number (Austria) | bf7046ce-a6fc-4eab-8e1b-63e90832a6d7 |
| SCIP notification number (Belgium) | df2bd28f-2638-4799-ba01-5ee4d9c3e90a |
| SCIP notification number (Bulgaria) | c556ee9f-3422-4186-a437-e8a9d39b1c7d |
| SCIP notification number (Czech Republic) | 45994d68-f8fd-4982-a563-04c02b29eb11 |
| SCIP notification number (Denmark) | ab3d5870-dd35-4764-ba30-a538340b448e |
| SCIP notification number (Finland) | 0aac37ec-f5ce-4bda-86dc-7f0776e49920 |
| SCIP notification number (France) | 18fa67fb-4918-4070-b339-9c53a1451290 |
| SCIP notification number (Germany) | deac4deb-204d-4b5a-a2ae-68dd97f23e9c |
| SCIP notification number (Hungary) | 6f72c06a-9fa1-4b06-a431-d2c05e130bed |
| SCIP notification number (Italy) | b46782d0-0380-400e-80df-275d993c2805 |
| SCIP notification number (Netherlands) | 459a5400-618a-4907-bb30-c486a099cb64 |
| SCIP notification number (Poland) | a44e26e9-21c3-4ab4-a6a7-f52fcfe72219 |
| SCIP notification number (Romania) | f264df07-7645-407e-b94b-9a14c106c21c |
| SCIP notification number (Sweden) | fb644440-3cea-468a-a4a0-597602f7512a |
