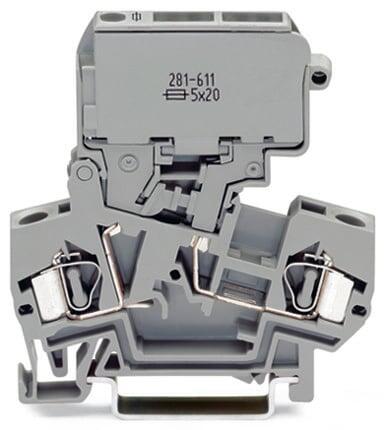

Açıklama
Elektrik Verisi
Ratings per IEC/EN
1'e göre derecelendirme
IEC/EN 60947-7-3
Overvoltage category
III
III
II
Pollution degree
3
2
2
Anma gerilimi
800 V
-
-
Şok gerilimi
8 kV
-
-
Nominal akım
10 A
-
-
Power loss
| Note on max. power loss P v max | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. |
| Power loss P l max. overload and short-circuit protection (individual arrangement) | 2,5 W |
| Power loss P l max. overload and short-circuit protection (group arrangement) | 1,6 W |
| Power loss P l max. short-circuit protection (individual arrangement) | 4 W |
| Power loss P l max. short-circuit protection (group arrangement) | 4 W |

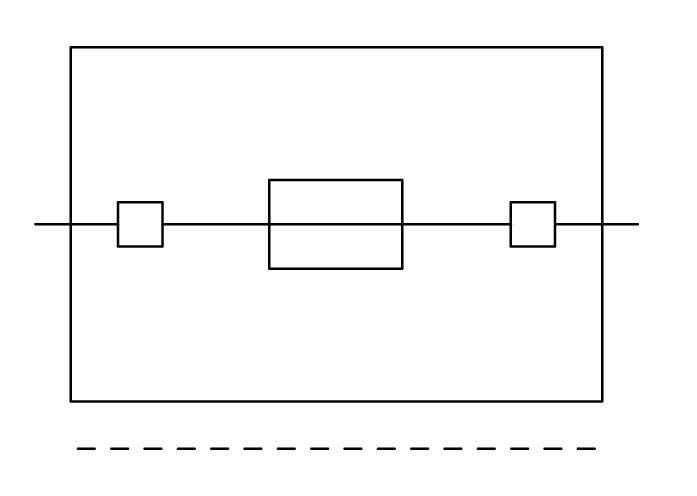

General
| Fuse mounting | pivoting |
| Fuse type | Cylindrical fuse; 5 x 20 mm |
Bağlantı verisi
| Toplam bağlantı noktası sayısı | 2 |
| Toplam potansiyel sayısı | 2 |
| Seviye sayısı | 1 |
Connection 1
| Bağlantı teknolojisi | CAGE CLAMP® |
| Actuation type | El aleti |
| Connectable conductor materials | Bakır Alüminyum |
| Connectable conductor materials | Terminating Aluminum Conductors WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination. “Alu-Plus” Contact Paste Advantages:
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste. It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination. Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:: 2.5 mm² = 16 A 4 mm² = 22 A |
| Tek damarlı boylar | 0,08 … 4 mm² / 28 … 12 AWG |
| İnce bükümlü kablolar | 0,08 … 4 mm² / 28 … 12 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
| Kablolama tipi | Önden girişli kablolama |
Geometrical Data
| Width | 8 mm / 0.315 inches |
| Height | 60 mm / 2.362 inches |
| Length from upper-edge of DIN-35 rail | 60 mm / 2.362 inches |
Mekanik Veri
| Tasarım | köşeli |
| Montaj tipi | DIN-35 ray |
| Etiketleme seviyesi | Ortaya etiketleme |
Material Data
| Note (material data) | Information on material specifications can be found here |
| Renk | gri |
| Malzeme grubu | I |
| İzolasyon malzemesi | Poliamid 66 (PA 66) |
| UL 94'e göre tutuşabilirlik değeri | V0 |
| Yangın yükü | 0,318 MJ |
| Ağırlık | 17 g |
Environmental Requirements
| İşlem sıcaklığı | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C |
Ticari Veri
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-16 |
| eCl@ss 10.0 | 27-14-11-16 |
| ETIM 8.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| Pack. unit | 50 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | IN |
| GTIN | 4045454614591 |
| SAP tesis 01'den gümrük tarifesi no. | 85369095000 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
