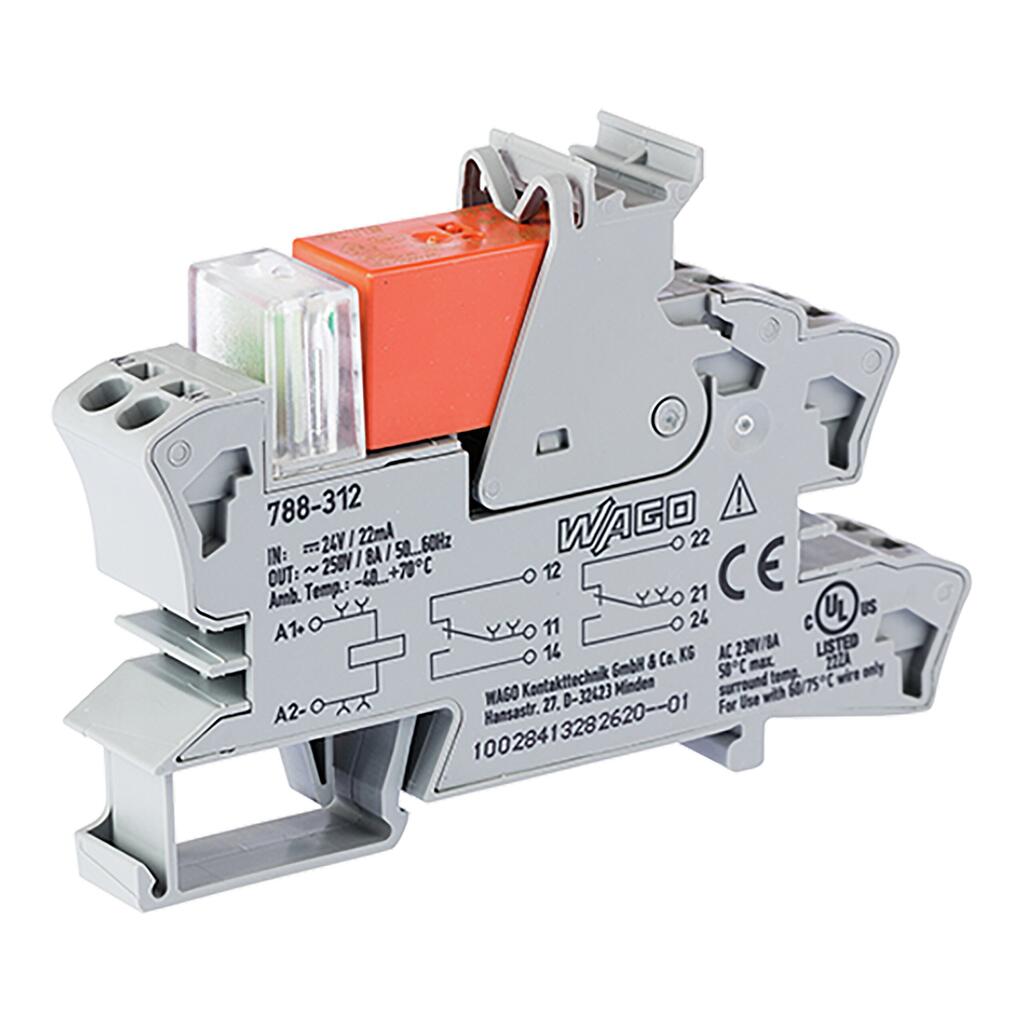

Açıklama
Notes
| Güvenlik bilgisi | A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. |
| Note |
|
Technical Data

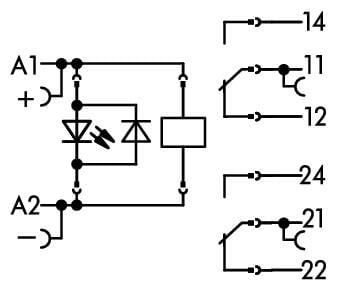

Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | ±10 % |
| Nominal input current at U N | 19 mA |
Load circuit

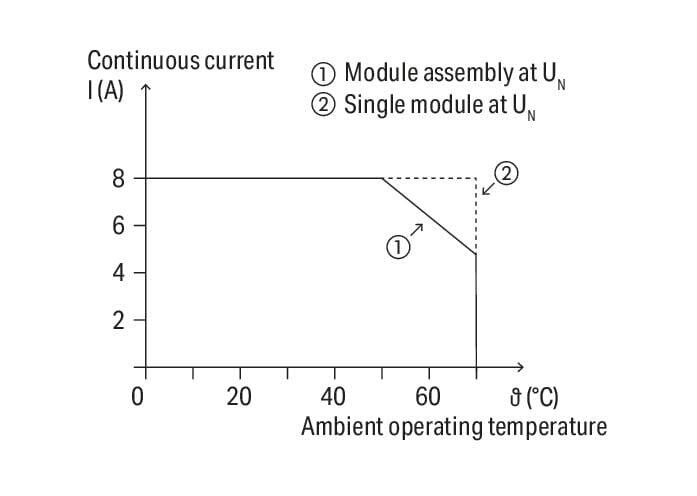

| Number of changeover/switchover contacts | 2 |
| Contact material (relay) | AgNi 90/10 |
| Limiting continuous current | 8 A |
| Max. make current (resistive) | (AC) 15 A / 4 s |
| Max. switching voltage | AC 250 V |
| Max. switching power (resistive) | AC 2000 VA; DC (yük limit eğrisine bakın) |
| Switching capacity | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Recommended minimum load | 12 V / 10 mA |
| Çekme süresi (tip.) | 8 ms |
| Bırakma süresi | 13 ms |
| Sıçrama süresi (tip.) | 10 ms |
| Electrical life (N.O.; resistive load; 23 °C) | 10 x 10³ switching operations |
| Mekanik ömür | 30 x 10⁶ switching operations |
| Max. switching load with load/without load | 6 min -1 / 1200 min -1 |
Signaling
| Durum göstergesi | Kırmızı LED |
Safety and protection
| Anma gerilimi | 250 V |
| Nominal ani dalgalanma gerilimi | 4 kV |
| Kirlilik derecesi | 3 |
| Dielectric strength, control/load circuit (AC, 1 min) | 5 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Dielectric strength, load/load circuit (AC, 1 min) | 2,5 kVrms |
| Güvenlik bilgisi | A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. |
| Koruma sınıfı | IP20 |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |

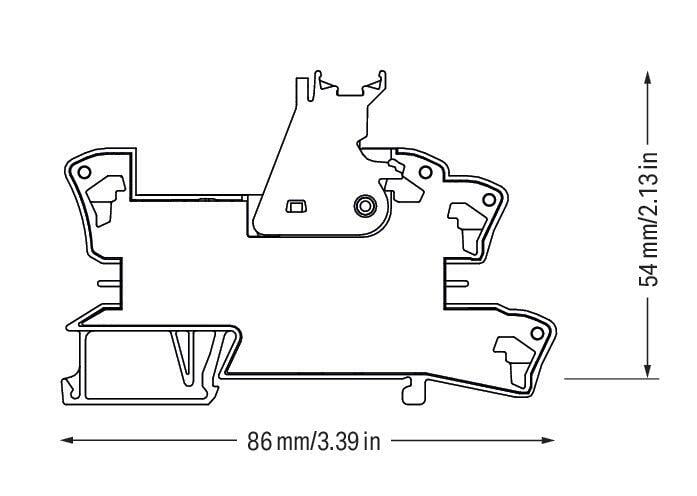

Geometrical Data
| Width | 15 mm / 0.591 inches |
| Height | 86 mm / 3.386 inches |
| Depth | 54 mm / 2.126 inches |
Mechanical data
| Montaj | DIN-35 ray |
Material Data
| Renk | gri |
| Yangın yükü | 1,357 MJ |
| Ağırlık | 45,5 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -40 … +70 °C |
| Surrounding air (operating) temperature for UL | -40 … +50 °C |
| Surrounding air (storage) temperature | -40 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T ambient + 20 K) |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 EN 61810-1 EN 61373 UL 508 |
Elementary relay
| WAGO elementary relay | 788-156 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 10.0 | 27-37-16-01 |
| ETIM 8.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| Recupel Type | |
| Pack. unit | 20 (1) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | CN |
| GTIN | 4055143184137 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
