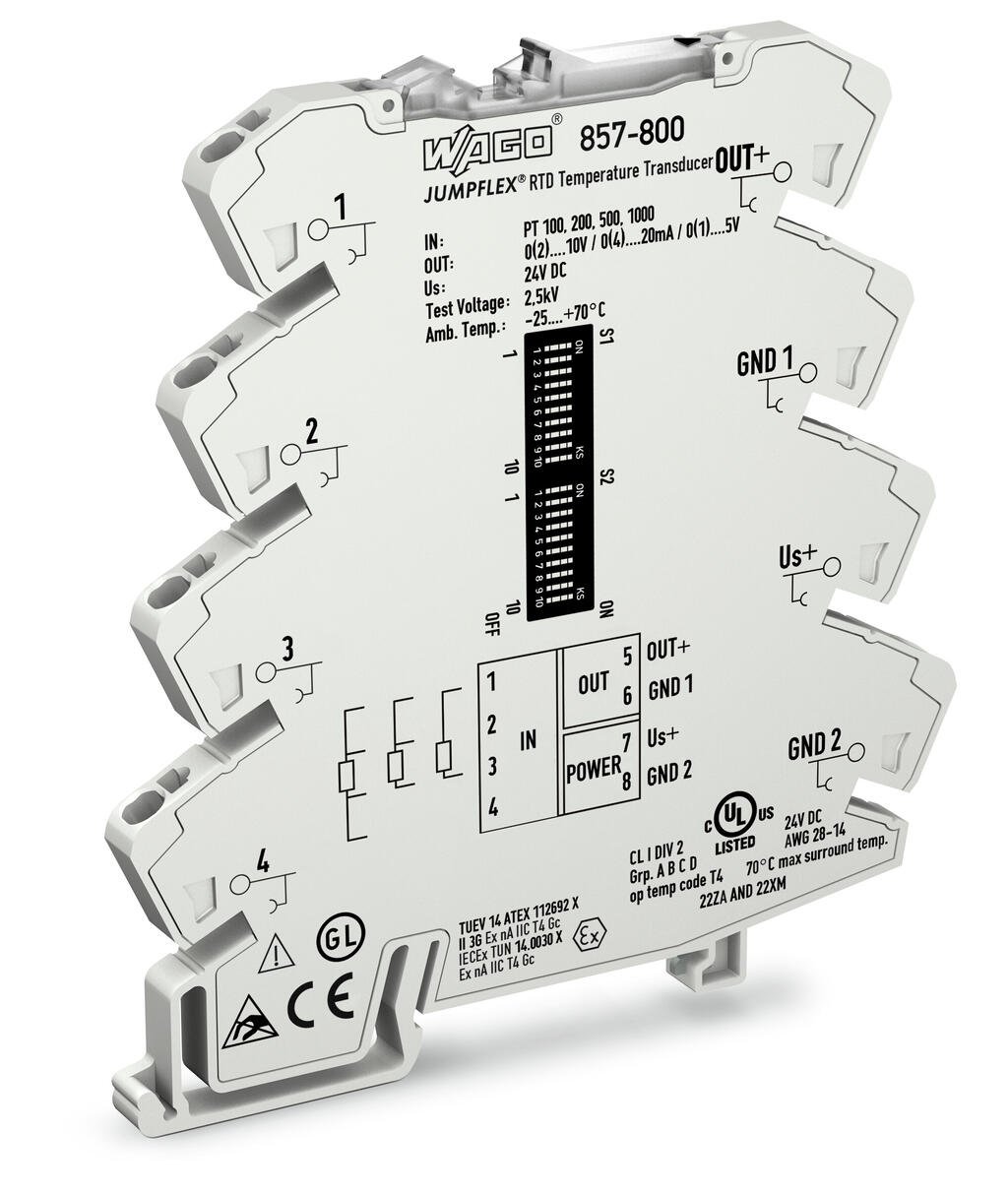

Açıklama
Technical Data
Configuration

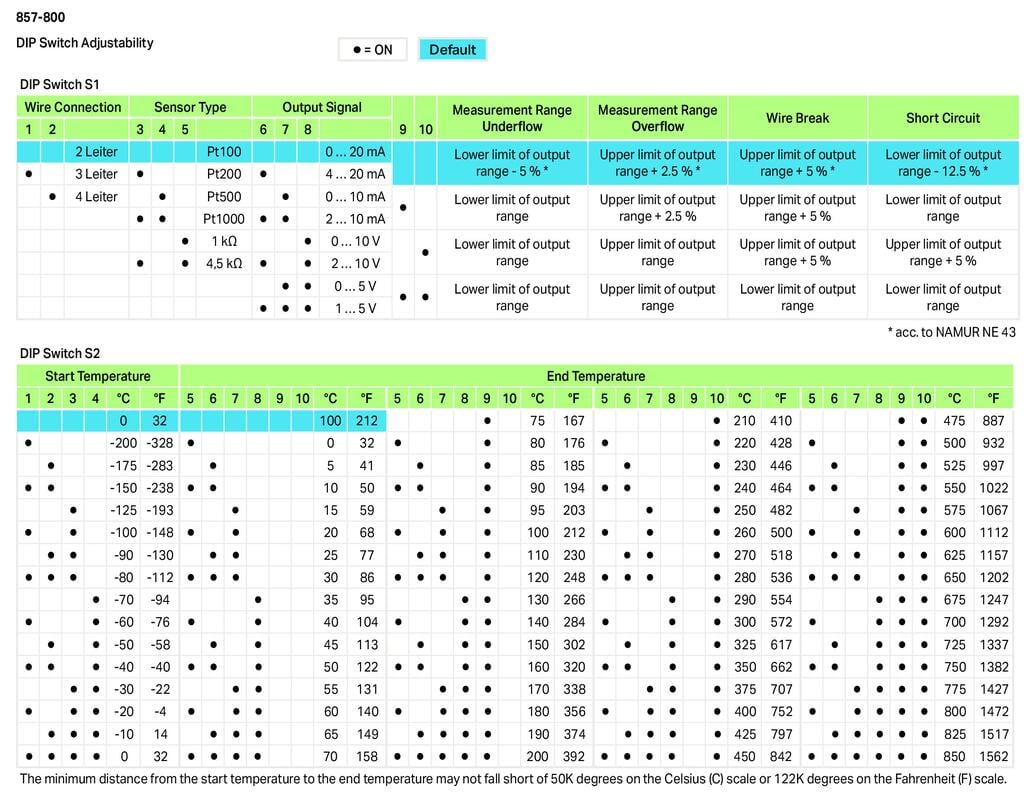

| Configuration options | DIP switch |

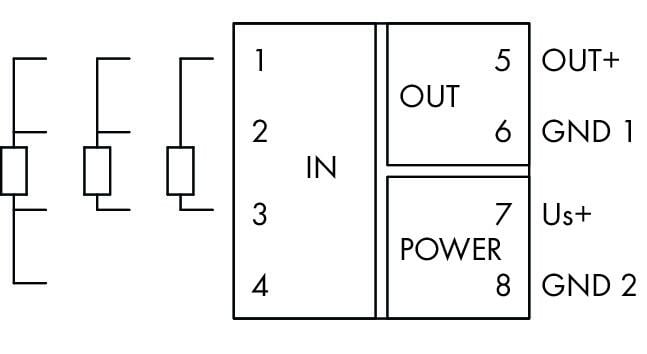

Input
| Input signal type | Pt sensörleri Direnç Pt sensors Resistance |
Input – RTD sensors
| Sensor types (RTD) | Pt100 Pt200 Pt500 Pt1000 |
| Max. sensor supply current (RTD) | ≤ 0,5 mA |
| Measurement range temperature (RTD) | -200 … 850°C |
Input (resistors)
| Input range resistance | 0 … 1 kΩ; 0 … 4,5 kΩ |
Output
| Output signal type | Akım Gerilim Current Voltage |
| Output signal voltage | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V |
| Output signal current | 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA |
| Load impedance (output/voltage) | ≥ 2 kΩ |
| Load impedance (output/current) | ≤ 600 Ω |
Signal processing
| Step response typ. | 180 ms (2 telli); 360 ms (3 telli) |
Measurement error
| İletim hatası | tam ölçüm aralığında ≤ %0,1 |
| Ayarlı ölçüm aralığı iletim hatası | ≤ ((10 K/set ölçüm aralığı [K]) + 0.1) % |
| Sıcaklık katsayısı | ≤ %0,02 /K |
Power supply
| Type of power supply | 24 VDC |
| Nominal supply voltage U S | DC 24 V |
| Supply voltage range | ±30 % |
| Current consumption at supply voltage | ≤ 40 mA |
Safety and protection
| Koruma sınıfı | IP20 |
Test voltage
| Test voltage | AC 2,5 kV; 50 Hz; 1 min |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 97,8 mm / 3.85 inches |
Mekanik Veri
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Renk | açık gri |
| Yangın yükü | 0,418 MJ |
| Ağırlık | 35,3 g |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +70 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
| EMC immunity to interference | EN 61000-6-2 |
| EMU: | EN 61000-6-4 |
| Standartlar/spesifikasyonlar | DNV |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-21-01-29 |
| eCl@ss 10.0 | 27-20-02-06 |
| ETIM 8.0 | EC002919 |
| ETIM 8.0 | EC002919 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | bag |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454470128 |
| SAP tesis 01'den gümrük tarifesi no. | 85437090300 |
