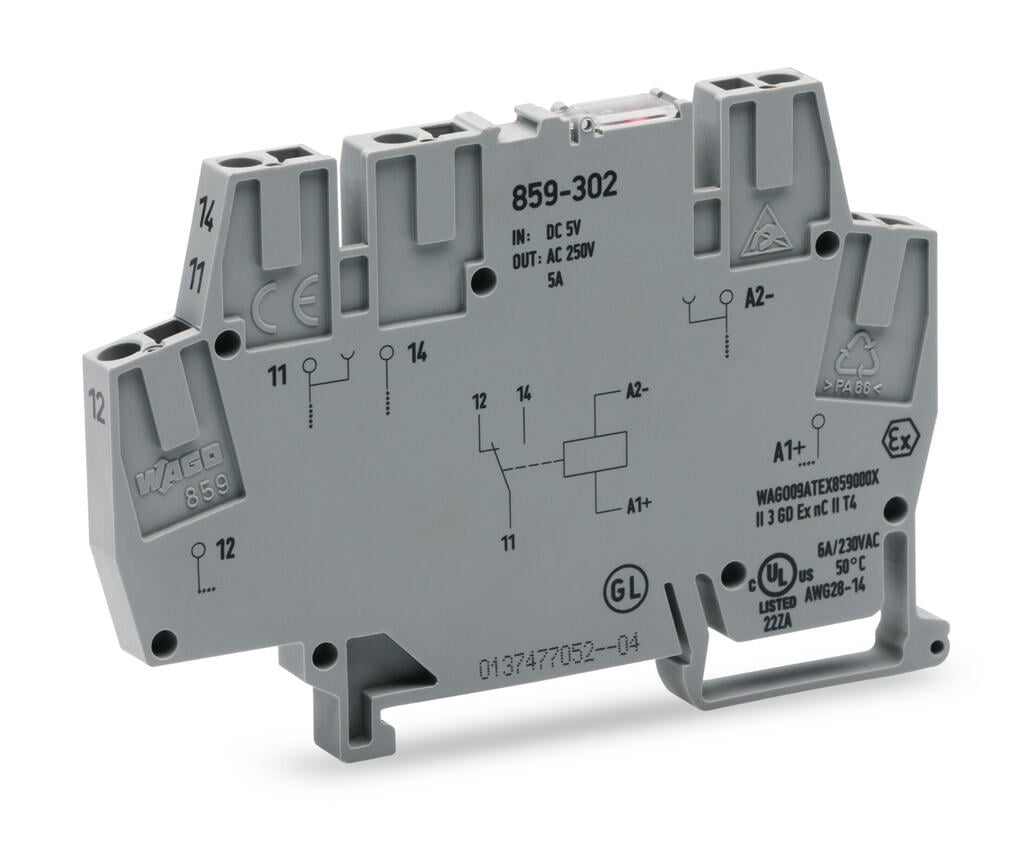

Açıklama
Notes
| Note | Röle bobinlerini ve kontakları korumak için endüktif yükler etkin bir koruyucu devre ile bastırılmalıdır. |
Technical Data

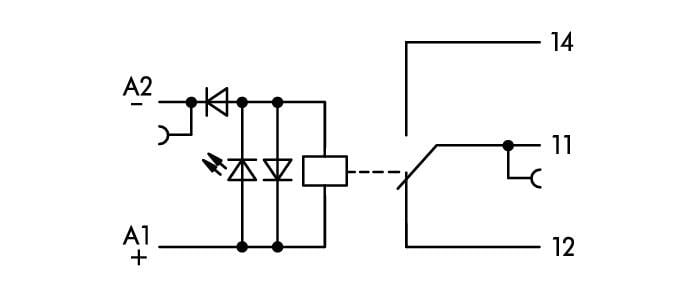

Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | -15 … +20 % |
| Nominal input current at U N | 10 mA |
Load circuit
| Number of changeover/switchover contacts | 1 |
| Contact material (relay) | AgSnO 2 |
| Limiting continuous current | 5 A |
| Max. make current (resistive) | (AC) 20 A / 0,02 s |
| Max. switching voltage | AC 250 V |
| Max. switching power (resistive) | AC 1250 VA; DC (yük limit eğrisine bakın) |
| Switching capacity | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Recommended minimum load | 10 V / 10 mA; 24 V / 1 mA |
| Çekme süresi (tip.) | 6 ms |
| Bırakma süresi | 6 ms |
| Sıçrama süresi (tip.) | 3,5 ms |
| Electrical life (N.O.; resistive load; 23 °C) | 50 x 10³ switching operations |
| Mekanik ömür | 5 x 10⁶ switching operations |
| Max. switching load with load/without load | 6 min -1 / 180 min -1 |
Signaling
| Durum göstergesi | Kırmızı LED |
Safety and protection
| Anma gerilimi | 300 V |
| Nominal ani dalgalanma gerilimi | 4 kV |
| Aşırı gerilim kategorisi | III |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 4 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Koruma sınıfı | IP20; in connected state or when using 859-525 end plate |
Bağlantı verisi
| Bağlantı teknolojisi | CAGE CLAMP® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar, yalıtımlı yüksüklü | 0,08 … 1,5 mm² / 28 … 16 AWG |
| Sıyırma uzunluğu | 5 … 6 mm / 0.2 … 0.24 inches |

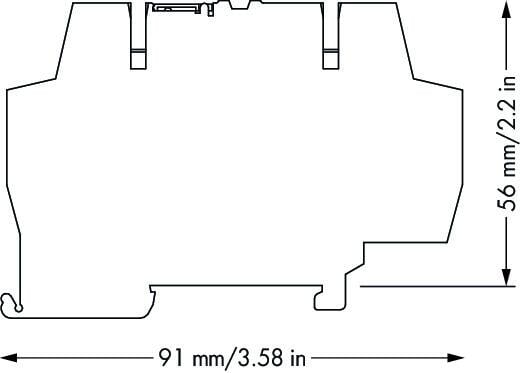

Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 91 mm / 3.583 inches |
| Depth | 56 mm / 2.205 inches |
Mechanical data
| Montaj | DIN-35 ray |
| Montaj pozisyonu | yatay (ayakta / yatarken); dikey |
Material Data
| Renk | gri |
| Yangın yükü | 0,528 MJ |
| Ağırlık | 22,9 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -40 … +50 °C |
| Surrounding air (storage) temperature | -40 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T ambient + 20 K) |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 EN 61810-1 EN 61373 UL 508 DNV |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 10.0 | 27-37-16-01 |
| ETIM 8.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| Recupel Type | |
| Pack. unit | 10 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | CN |
| GTIN | 4055143606769 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
