Short Specifications

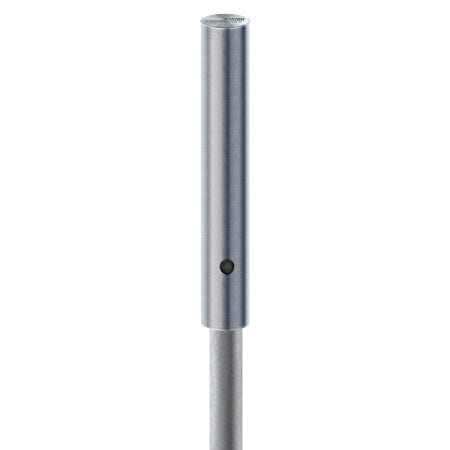

DW-AD-711-04
| Operating range | 3 mm |
| Switching frequency max. | 1200 Hz |
| Supply voltage | 10…30 |
| Operating pressure [bar] | ≤ 150 bar |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | Ø 4 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25…+85°C |
| Sensor Height | 30 mm |
| Mounting | Non-embeddable |
| Interface | Standard output |
