Short Specifications

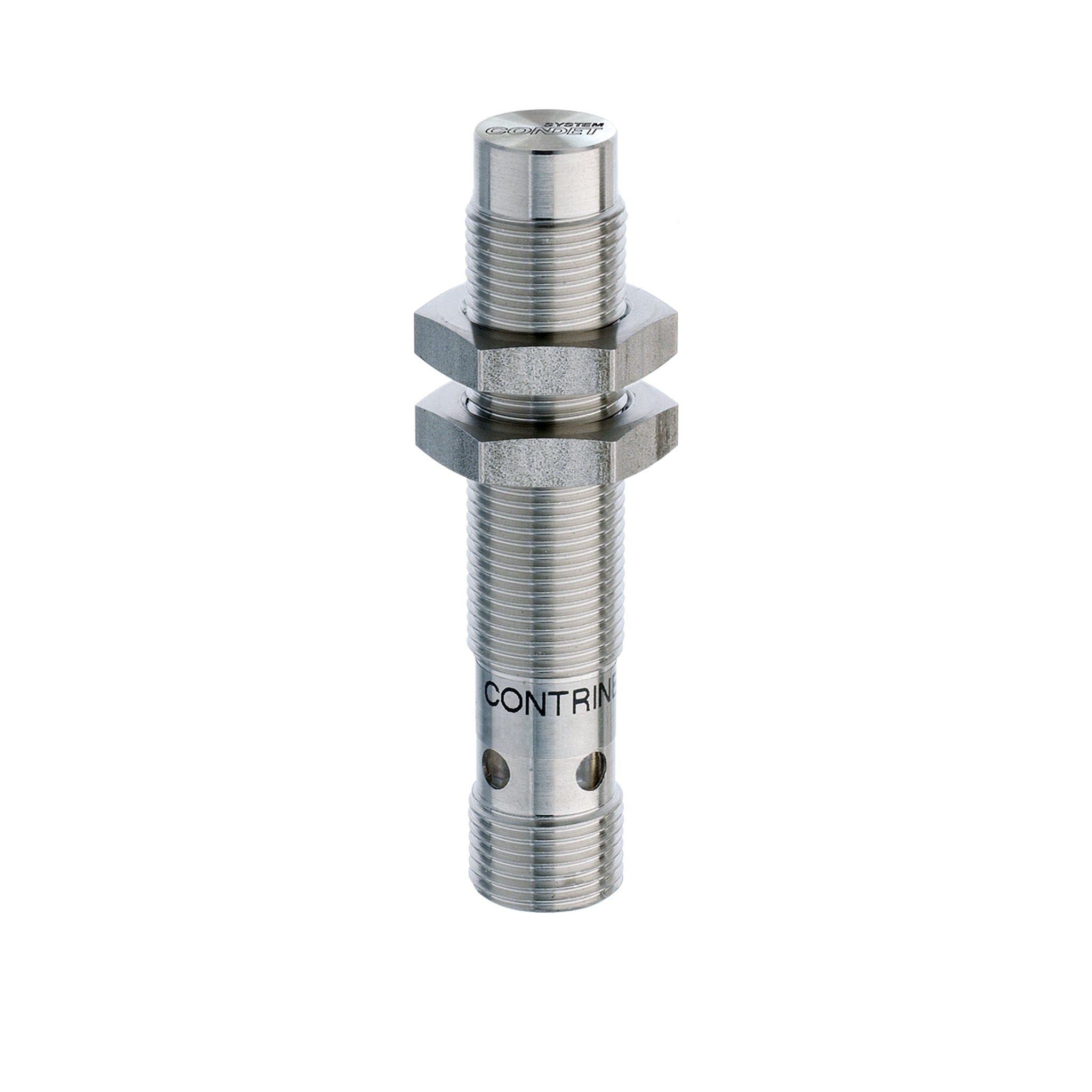

DW-AS-711-M12-967
| Operating range | 3 mm |
| Switching frequency max. | 400 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 80 bar |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | M12 4-pin |
| Housing size [mm] | M12 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 60 mm |
| Mounting | Non-embeddable |
| Interface | Standard output |
