Short Specifications

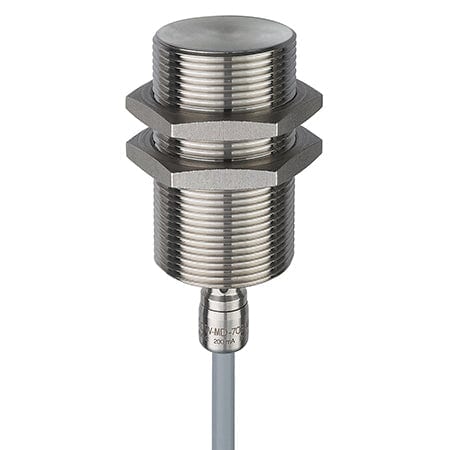

DW-MD-703-M30
| Operating range | 20 mm |
| Switching frequency max. | 125 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 40 bar |
| Polarity | PNP |
| Output | Normally Open (NO) |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M30 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V4A |
| Temperature range | -25...+85°C |
| Sensor Height | 70.2 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
