Short Specifications
Preliminary

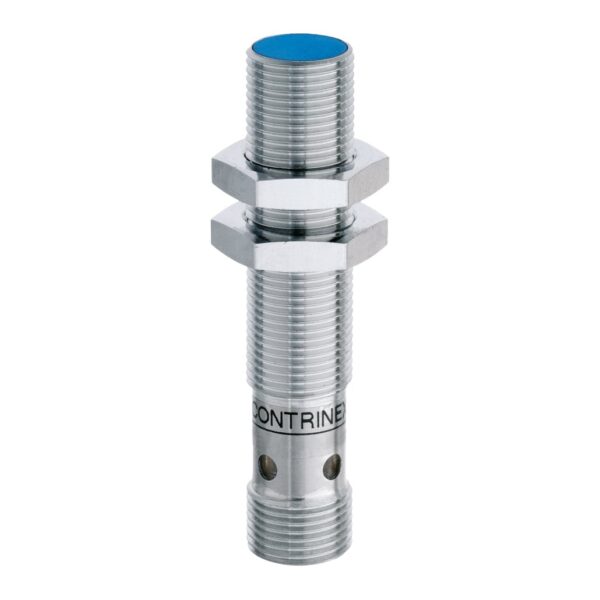

IAWE-M12MP-NMS-A2
| Operating range | 0…6 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 18…32 |
| Polarity | PNP/Analog |
| Output | IO-Link + Voltage |
| Repeatability | |
| Connection | M12 4-pin |
| Housing size [mm] | M12 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Resolution | 2 µm |
| Temperature range | -25…+70°C |
| Mounting | Quasi-embeddable |
| Interface | IO-Link |
| Sensing range max. | 0…6.6 mm |
