Short Specifications

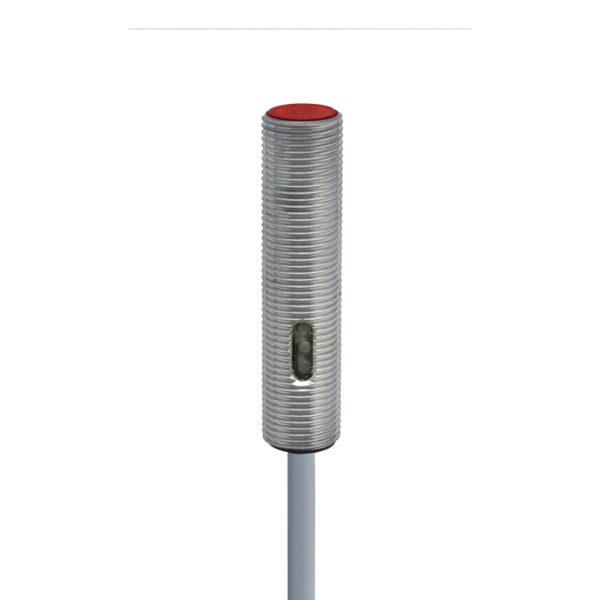

LLR-M12MA-NMK-101
| Operating range | 0...8000 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Sensitivity adjustment | No |
| Connection | PVC, 2 m, 4 wire + 0 |
| Housing size [mm] | M12 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+65°C |
| Light source | LED, red 630 nm |
| Interface | Standard output |
| Operating principle | Through-beam receiver |
| Sensing range max. | 0...10000 mm |
