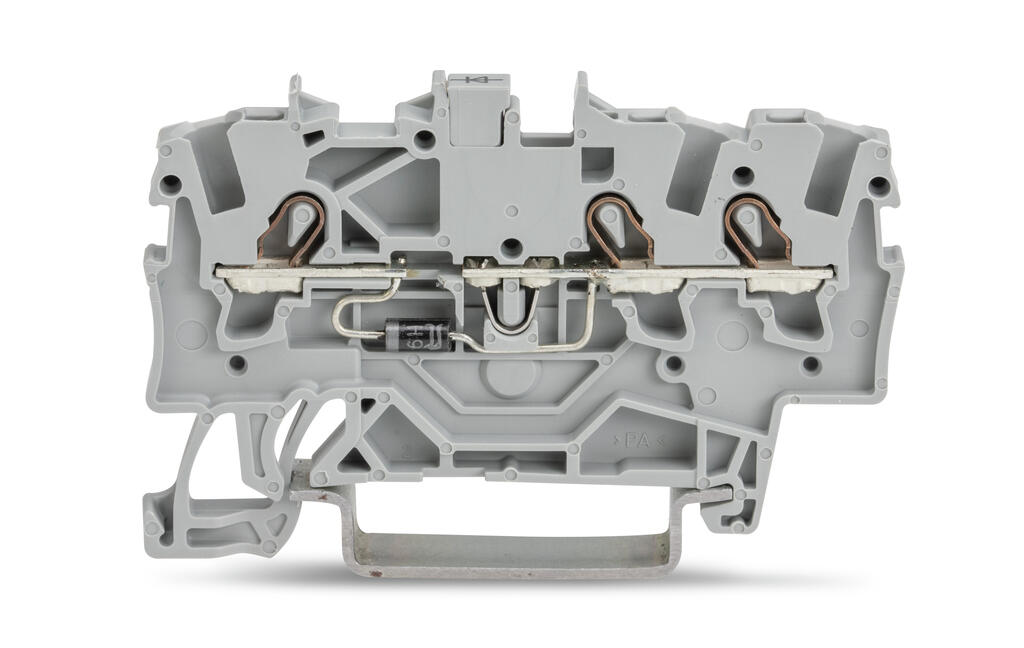

Açıklama
Elektrik Verisi
Ratings per IEC/EN
1'e göre derecelendirme
IEC/EN 60947-7-1
Overvoltage category
III
III
II
Pollution degree
3
2
2
Anma gerilimi
-
Şok gerilimi
-
Nominal akım
-
Approvals per UL 1059
Approvals per
UL 1059
Use group
B
C
D
Rated voltage
-
General
Nominal gerilim | 250 V |
Ters gerilim | 1.000 V |

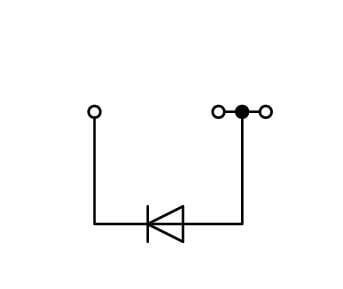

Bağlantı verisi
Toplam bağlantı noktası sayısı | 3 |
Toplam potansiyel sayısı | 1 |
Seviye sayısı | 1 |
Number of jumper slots | 1 |
Connection 1
Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
Actuation type | El aleti |
Connectable conductor materials | Bakır |
Nominal kesit | 1,5 mm² |
Tek damarlı boylar | 0,25 … 2,5 mm² / 22 … 14 AWG |
tek damarlı, doğrudan takılabilir | 0,75 … 2,5 mm² / 18 … 14 AWG |
İnce bükümlü kablolar | 0,25 … 2,5 mm² / 22 … 14 AWG |
İnce bükümlü kablolar, yalıtımlı yüksüklü | 0,25 … 1,5 mm² / 22 … 16 AWG |
min. ince bükümlü, yalıtımlı yüksüklü, bastırarak sonlandırma | 0,75 … 1,5 mm² / 18 … 16 AWG |
Not (iletken kesiti) | İletken karakteristiğine bağlı olarak, daha küçük enine kesite sahip bir iletken de itmeli sonlandırma yoluyla yerleştirilebilir. |
Sıyırma uzunluğu | 9 … 11 mm / 0.35 … 0.43 inches |
Kablolama tipi | Önden girişli kablolama |
Geometrical Data

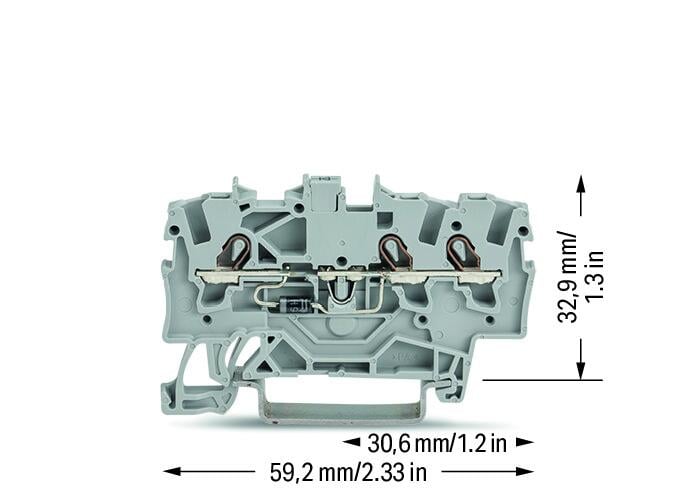

Width | 4,2 mm / 0.165 inches |
Height | 59,2 mm / 2.33 inches |
Length from upper-edge of DIN-35 rail | 32,9 mm / 1.295 inches |
Mekanik Veri
Montaj tipi | DIN-35 ray |
Etiketleme seviyesi | Ortaya/yana etiketleme |
Material Data
Note (material data) | Information on material specifications can be found here |
Renk | gri |
Malzeme grubu | I |
İzolasyon malzemesi | Poliamid 66 (PA 66) |
UL 94'e göre tutuşabilirlik değeri | V0 |
Yangın yükü | 0,128 MJ |
Ağırlık | 5 g |
Environmental Requirements
İşlem sıcaklığı | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C |
Ticari Veri
Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 10.0 | 27-14-11-27 |
ETIM 8.0 | EC000903 |
ETIM 8.0 | EC000903 |
Pack. unit | 100 Adet |
SAP'den ambalaj tipi | box |
SAP tesis 01'den menşei | CN |
GTIN | 4045454537579 |
SAP tesis 01'den gümrük tarifesi no. | 85369010000 |
Environmental Product Compliance
CAS-No. | 7439-92-1 79-94-7 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Lead |
RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
SCIP notification number (Austria) | d1662d97-6b66-4239-8980-687fcf29de9a |
