Açıklama
Technical Data
Input
| Nominal input voltage U i nom | DC 5 V (SELV) |
| Input voltage range | DC 4,5 … 5,5 V(SELV) |
| Input current I i | ≤ 0,04 A |
Signaling and communication
| Göstergeler | 1 x LED PWR (green) 1 x LED RxD (yellow) 1 x LED TxD (yellow) |
| İletişim | Modbus RTU via RS-485 |
| Baud rate | 4,8 kBd … 115,2 kBd |
| Adresleme | 247 |
| Transmission medium (communication/fieldbus) | Shielded copper cable |
Safety and protection
| Test voltage (input/output) | AC 2 kV; 50 Hz; 1 min |
| Test voltage (input/output/shield) | 1 kVAC; 50 Hz; 1 min |
| Koruma sınıfı | III |
| Insulation type | Functional insulation |
| Koruma sınıfı | IP20; per EN 60529 |
| Kirlilik derecesi | 2 |
Bağlantı verisi
| Konnektör | 2 x RJ-45 |
| Transmission medium | Shielded copper cable |
Geometrical Data
| Width | 35 mm / 1.378 inches |
| Height | 80 mm / 3.15 inches |
| Depth | 22 mm / 0.866 inches |
| Note on dimensions | Depth in mounted state |
Mekanik Veri

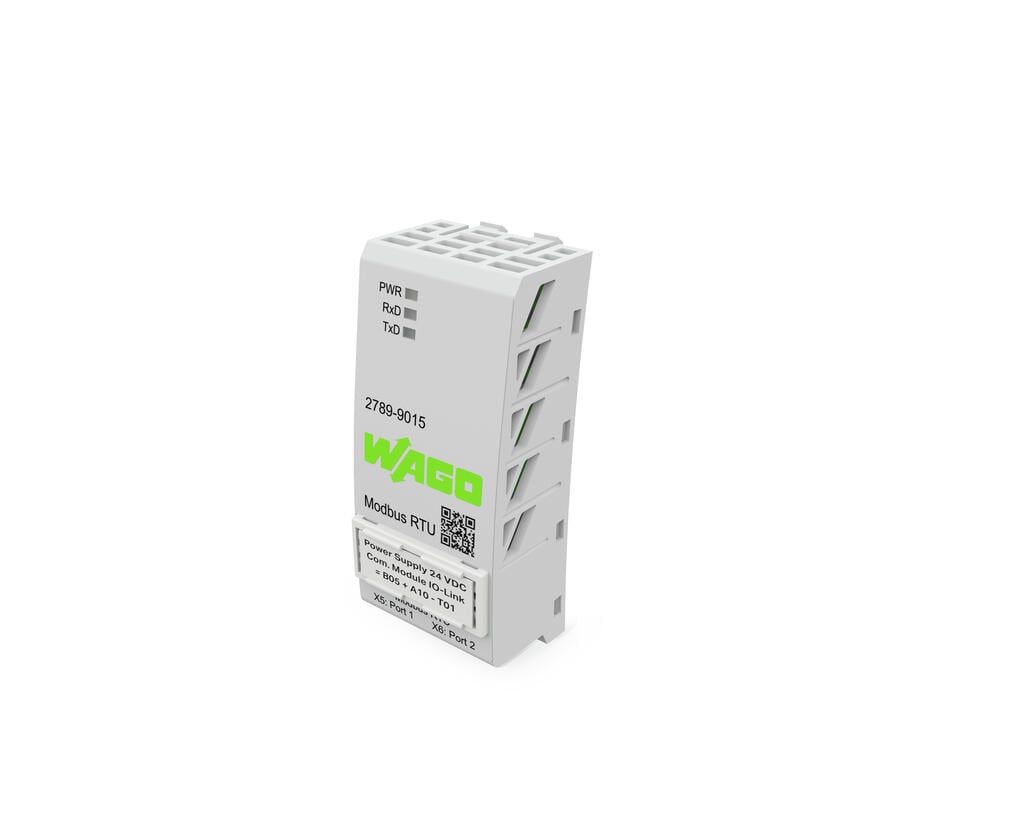

| Montaj | Pro 2 Güç Kaynaklarının iletişim arayüzüne (X4) takılır |
Material Data
| Ağırlık | 35 g |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +70 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 5000 m |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
| Standartlar/spesifikasyonlar | EN 61010-1 EN 61010-2-201 EN 61204-3 UL 61010-1 UL 61010-2-201 UL HazLoc |
Ticari Veri
| ETIM 8.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP tesis 01'den menşei | CN |
| GTIN | 4055144020281 |
| SAP tesis 01'den gümrük tarifesi no. | 85176200000 |
Environmental Product Compliance
| CAS-No. | 1303-86-2 1317-36-8 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide Lead Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
