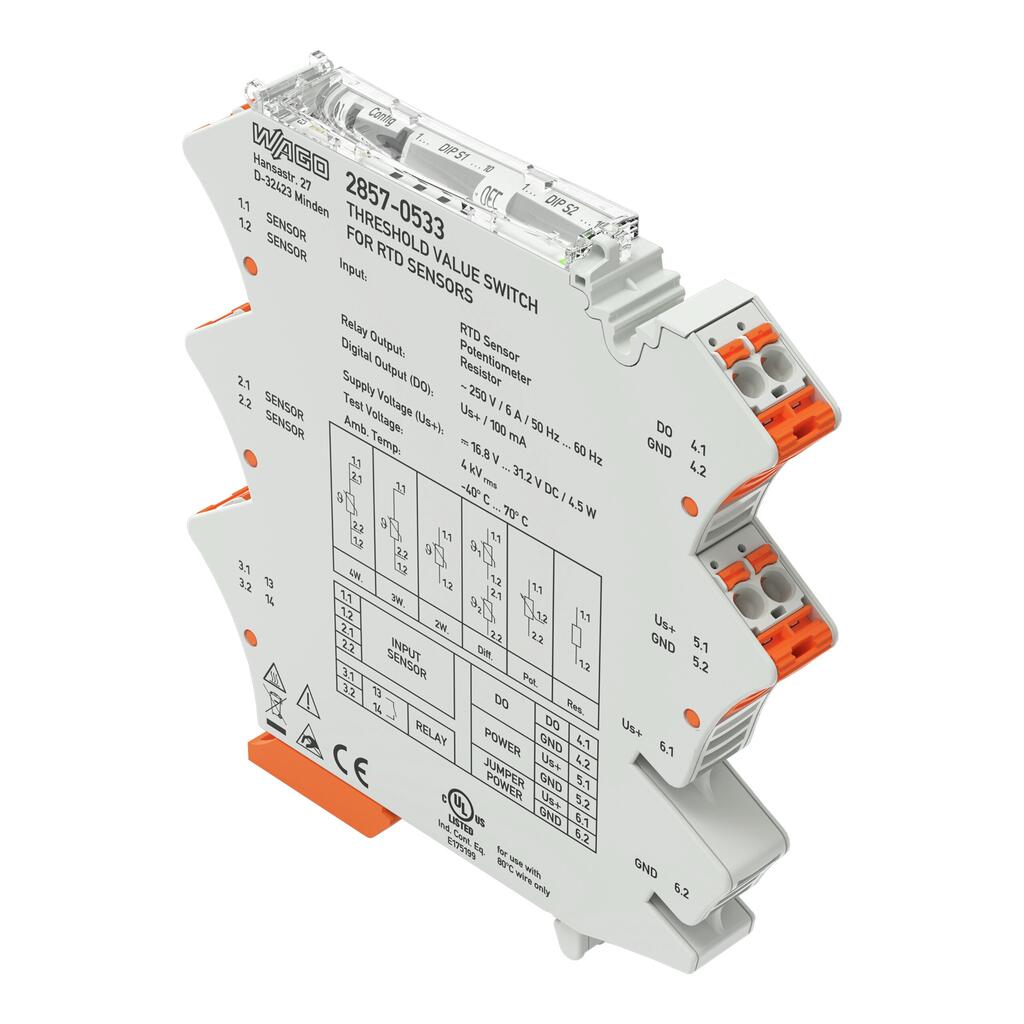

2857-533

Açıklama

Note

This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) U _S + (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 2 A is not exceeded.
Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App

Configuration options

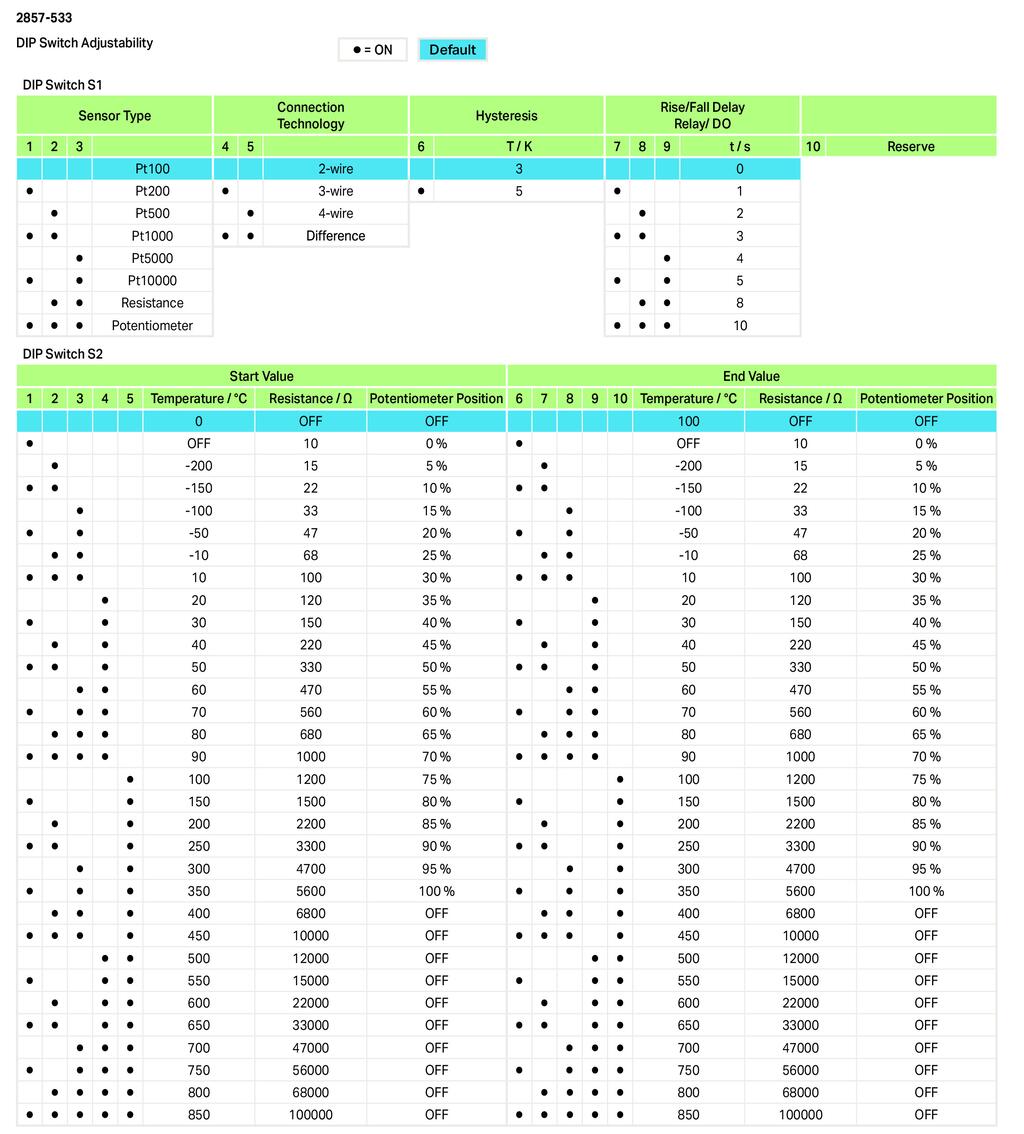

DIP switch
WAGO Arayüz Konfigürasyon Yazılımı
WAGO Arayüz Yapılandırma Uygulaması
WAGO Yapılandırma Ekranı

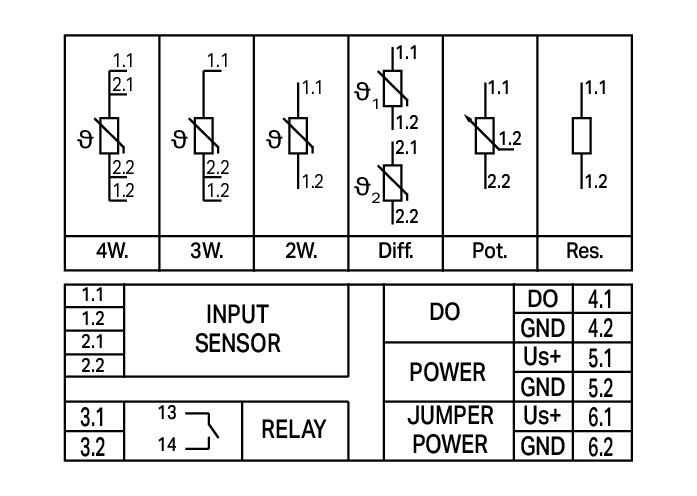

Input signal type

RTD sensörleri
Potansiyometreler
Direnç
RTD sensors
Potentiometers
Resistance

Sensor types (RTD)	Pt100 Pt200 Pt500 Pt1000 Pt5000 Pt10000 Pt10 … Pt20000
Max. sensor supply current (RTD)	≤ 0,5 mA
Measurement range temperature (RTD)	-200 … 850°C

Input range resistance	0 … 100 kΩ
Input range potentiometer	0 … 100 kΩ

Max. switching voltage (DO)	Uygulanan besleme gerilimi : −0.3 V
Max. continuous current (DO)	100 mA (dahili kısıtlama yok)
Number of switching tresholds (DO)	1 veya 2 (ayarlanabilir)
Configurable rise/fall delay time (DO)	0 … 60 s (yazılım aracılığıyla)

Dielektrik dayanımı, açık kontak (AC, 1 dak)	1 kV _eff
Number of make contacts/switch on contacts	1
Contact material (relay)	AgNi + Au
Max. switching voltage	AC 250 V
Dielectric strength open contact (AC, 1 min)	1 kVrms
Çekme süresi (tip.)	8 ms
Bırakma süresi	4 ms
Sıçrama süresi (tip.)	8 ms
Number of switching tresholds (relay)	1 veya 2 (ayarlanabilir)
Configurable rise/fall delay time (relay)	0 … 60 s (yazılım aracılığıyla)

Filtre (T _10-90 )	Hareketli ortalama değer (filtre seviyesi: 30)
Hysteresis	DIP anahtarı veya yazılım ile ayarlanabilir
Step response typ.	60 ms (2 telli); 360 ms (3 telli); 540 ms (4 telli); 360 ms (Potansiyometre)

İletim hatası (tam skala)	± 1 K
Sıcaklık katsayısı	≤ %0,01 /K

Type of power supply	24 VDC
Nominal supply voltage U _S	DC 24 V
Supply voltage range	±30 %
Current consumption at supply voltage	≤ 40 mA (+ I DO)

Anma gerilimi	300 V
Rated voltage	AC 300 V
Measurement category per EN/UL 61010-2-030	CAT II (input)
Note on insulation parameters	Temperature sensors are not intended for use in dangerous circuits, provided the external temperature sensors used do not have basic insulation in accordance with EN/UL 61010-1 (300 VAC; overvoltage category II; pollution degree 2). Dijital çıkış (DO) kaynağın potansiyelindedir.
Koruma sınıfı	IP20

Test voltage (input/relay output/supply)	4 kVAC; 60 Hz; 1 min
Test voltage (input/service interface)	3 kVAC; 60 Hz; 1 min
Test voltage (relay output/service interface)	4 kVAC; 60 Hz; 1 min
Test voltage (supply/service interface)	2.5 kVAC; 60 Hz; 1 min

Overvoltage category	II
Pollution degree	2
Insulation type (input, supply and service interface/relay output)	Reinforced insulation (safe isolation)
Insulation type (input/supply/service interface)	Basic insulation

Montaj

DIN-35 ray
DIN 35 ray

Yangın yükü	1,573 MJ
Ağırlık	86,5 g

Surrounding air (operating) temperature	-40 … +70 °C
Surrounding air (storage) temperature	-40 … +85 °C
Temperature range of connection cable	≥ (T çevreleyen hava + 10 K)
Temperature range of connection cable (UL)	80 °C

Uygunluk işareti	CE
EMC immunity to interference	EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
EMU: 1 - enterferans emisyonu	EN 61000-6-4; EN 61326-2-3; EN 50121-3-2
Standartlar/spesifikasyonlar	EN 50121-3-2 EN 61010-1 EN 61373

Product Group	6 (INTERFACE ELECTRONIC)
eCl@ss 10.0	27-37-18-10
eCl@ss 10.0	27-37-18-10
ETIM 8.0	EC001446
ETIM 8.0	EC001446
Pack. unit	1 Adet
SAP'den ambalaj tipi	bag
SAP tesis 01'den menşei	DE
GTIN	4050821676973
SAP tesis 01'den gümrük tarifesi no.	90303370000

CAS-No.

1303-86-2
