Açıklama
Technical Data

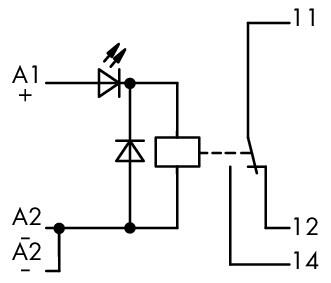

Control circuit
| Nominal input voltage U N | DC 110 V |
| Input voltage range | -30 … +25 % |
| Nominal input current at U N | 4 mA |
Load circuit
| Number of changeover/switchover contacts | 1 |
| Contact material (relay) | AgNi 0.15 |
| Limiting continuous current | 3 A |
| Max. switching voltage | AC 250 V |
| Max. switching power (resistive) | AC 750 VA |
| Çekme süresi (tip.) | 8 ms |
| Bırakma süresi | 6 ms |
| Sıçrama süresi (tip.) | 4 ms |
Signaling
| Durum göstergesi | Kırmızı LED |
Safety and protection
| Anma gerilimi | 300 V |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 3 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Koruma sınıfı | IP20 |

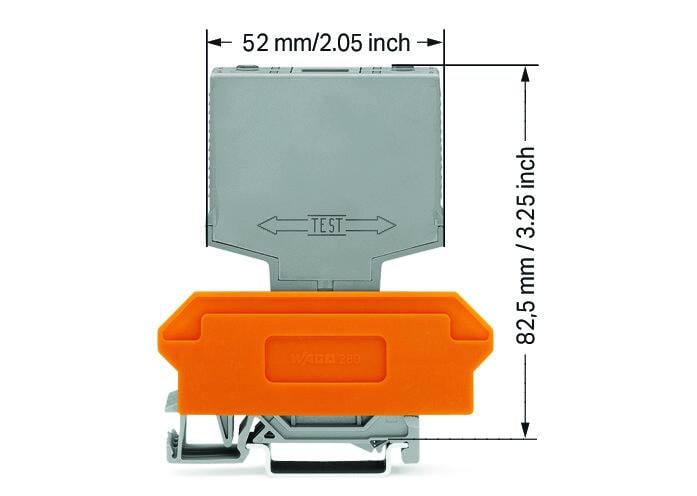

Geometrical Data
| Width | 15 mm / 0.591 inches |
| Height | 82,5 mm / 3.248 inches |
| Depth | 52 mm / 2.047 inches |
Mechanical data
| Montaj | Priz klemensleri için tak-çıkar modül |
Material Data
| Renk | gri |
| Yangın yükü | 0,345 MJ |
| Ağırlık | 23,1 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -25 … +70 °C |
| Surrounding air (storage) temperature | -25 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Relative humidity | 5 … 85 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 10.0 | 27-37-16-01 |
| ETIM 8.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| Pack. unit | 15 (1) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454709105 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
| SCIP notification number (Austria) | 81828017-49df-4293-a656-88ad43efb054 |
| SCIP notification number (Belgium) | 5ddc4fe6-0673-499a-8e00-c8dfe3e61a8d |
| SCIP notification number (Bulgaria) | 08b6913c-7e63-49aa-868c-5905e8b4cd05 |
| SCIP notification number (Czech Republic) | 6fc70c82-1fab-4a89-8148-b9a659039b3a |
| SCIP notification number (Denmark) | af3d9c6f-763c-4fb5-8461-e5edef4dae6d |
| SCIP notification number (Finland) | 910b84da-0a64-4266-a73b-82f0562b16e7 |
| SCIP notification number (France) | 8e409d76-c604-4f79-8e66-0310246cb279 |
| SCIP notification number (Germany) | 006dadc3-90a1-45d5-b130-4c5dc5632ff3 |
| SCIP notification number (Hungary) | 7c1acc02-2e72-4027-bf12-0cafff02106e |
| SCIP notification number (Italy) | e333515a-0f47-4cca-bb4c-785059621f90 |
| SCIP notification number (Netherlands) | 0c5e03ed-27b1-489b-9876-f99ccce5af3c |
| SCIP notification number (Poland) | 6df00da0-9c65-403f-82b3-92d439f1046f |
| SCIP notification number (Romania) | cb548765-5811-44dc-9de0-25cb0a5d1a0e |
| SCIP notification number (Sweden) | 3418933c-d55f-4ac5-b907-4b47107f3f03 |
