Açıklama
Technical Data
Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | ±10 % |
| Nominal input current at U N | 51 mA |

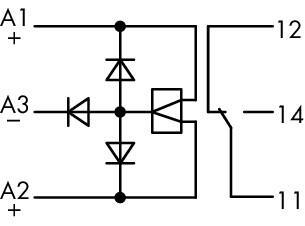

| Functions | Set (closed 11-14 contacts): A2 Reset (closed 11-12 contacts): A1 |
Load circuit
| Number of changeover/switchover contacts | 1 |
| Contact material (relay) | AgNi 90/10 |
| Limiting continuous current | 6 A |
| Max. make current (resistive) | (AC) 30 A / 4 s |
| Max. switching voltage | AC 250 V |
| Max. switching power (resistive) | AC 1500 VA |
| Çekme süresi (tip.) | 10 ms |
| Bırakma süresi | 10 ms |
| Sıçrama süresi (tip.) | 6 ms |
| Electrical life (N.O.; resistive load; 23 °C) | 10 x 10³ switching operations |
Safety and protection
| Anma gerilimi | 300 V |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 4 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Koruma sınıfı | IP20 |
Geometrical Data
| Width | 15 mm / 0.591 inches |
| Height | 82,5 mm / 3.248 inches |
| Depth | 52 mm / 2.047 inches |
Mechanical data
| Montaj | Priz klemensleri için tak-çıkar modül |
Material Data
| Renk | gri |
| Yangın yükü | 0,346 MJ |
| Ağırlık | 35 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -25 … +40 °C |
| Surrounding air (storage) temperature | -25 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Relative humidity | 5 … 75 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 10.0 | 27-37-16-01 |
| ETIM 8.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| Pack. unit | 15 (1) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454198008 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
