Açıklama
Technical Data

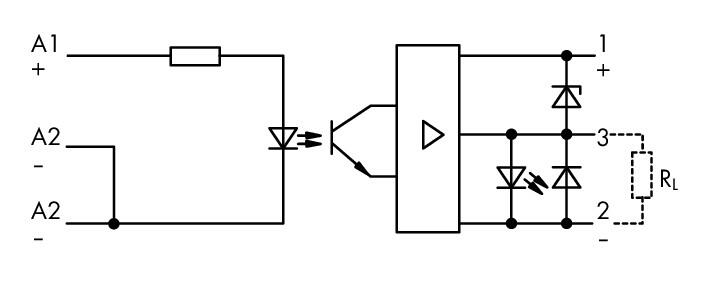

Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | DC 15 … 30 V |
| Nominal input current at U N | 14 mA |
| Input current range | 7,6 … 15 mA |
Load circuit
| Circuit type | 3 telli bağlantı Yükselen kenar anahtarlama |
| Limiting continuous current | 4 A |
| Nominal output voltage | DC 24 V |
| Output voltage range | DC 20 … 30 V |
| Max. voltage drop at output | ≤ DC 1,2 V |
| Voltage drop | ≤ 1.2 VDC |
| Leakage current at nominal voltage | ≤ 2 µA |
| Max. output (reverse current) | 12 mA |
| Turn-on time | ≤ 15 µs |
| Drop-out time | ≤ 25 µs |
| Switching frequency | ≤ 2,5 kHz |
Signaling
| Durum göstergesi | Kırmızı LED |
Safety and protection
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 2,5 kVrms |
| Koruma sınıfı | IP20 |
Geometrical Data
| Width | 15 mm / 0.591 inches |
| Height | 82,5 mm / 3.25 inches |
| Depth | 52 mm / 2.047 inches |
Mechanical data
| Montaj | Priz klemensleri için tak-çıkar modül |
Material Data
| Renk | gri |
| Yangın yükü | 0,346 MJ |
| Ağırlık | 26,8 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -25 … +40 °C |
| Surrounding air (storage) temperature | -25 … +40 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 60664-1 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 10.0 | 27-26-15-03 |
| ETIM 8.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| Pack. unit | 15 (1) Adet |
| SAP'den ambalaj tipi | Box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454413682 |
| SAP tesis 01'den gümrük tarifesi no. | 85365005000 |
Environmental Product Compliance
| CAS-No. | 1303-86-2 1317-36-8 7439-92-1 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Diboron trioxide Lead Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
