Açıklama
Technical Data

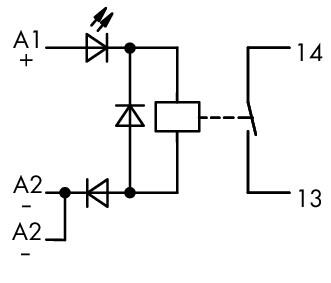

Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | ±10 % |
| Nominal input current at U N | 22 mA |
Load circuit
| Number of make contacts/switch on contacts | 1 |
| Contact material (relay) | AgSnO 2 |
| Limiting continuous current | 16 A |
| Max. make current (resistive) | (AC) 25 A / 4 s |
| Max. switching voltage | AC 400 V |
| Max. switching power (resistive) | AC 4000 VA; DC (yük limit eğrisine bakın) |
| Recommended minimum load | 12 V / 100 mA |
| Çekme süresi (tip.) | 8 ms |
| Bırakma süresi | 2 ms |
| Sıçrama süresi (tip.) | 2 ms |
| Mekanik ömür | 30 x 10⁶ switching operations |
Safety and protection
| Anma gerilimi | 300 V |
| Nominal ani dalgalanma gerilimi | 4 kV |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 3 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Bağlantı verisi
| Bağlantı teknolojisi | CAGE CLAMP® |
| WAGO terminal | WAGO 236 Series |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Sıyırma uzunluğu | 5 … 6 mm / 0.2 … 0.24 inches |
Geometrical Data
| Width | 20,5 mm / 0.807 inches |
| Height | 85 mm / 3.346 inches |
| Depth | 47 mm / 1.85 inches |
Mechanical data
| Montaj | DIN-35 ray |
Material Data
| Yangın yükü | 0,772 MJ |
| Ağırlık | 43,2 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -25 … +40 °C |
| Surrounding air (storage) temperature | -25 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 10.0 | 27-37-16-01 |
| ETIM 8.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| Recupel Type | |
| Pack. unit | 10 (1) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454362492 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) 7(a) 7(c)-I 7(c)-II |
| SCIP notification number (Austria) | 87a1da90-7ef9-4daf-8a5f-a8146a38ebb7 |
| SCIP notification number (Belgium) | a5ec296d-71cb-4bd9-937b-aa0fd266dc94 |
| SCIP notification number (Bulgaria) | 654805e2-ca56-4bea-b040-92f836ebe94c |
| SCIP notification number (Czech Republic) | f0143311-fe55-4984-89cc-3bec355a1d74 |
| SCIP notification number (Denmark) | d842c17f-bd2e-4fc3-b8f8-b479662d8a69 |
| SCIP notification number (Finland) | 119c8c06-5bd5-4c50-b0b0-1450cc2c3485 |
| SCIP notification number (France) | e9457767-c369-4282-810c-8ffd6aeb1312 |
| SCIP notification number (Germany) | 26ac1af8-1f13-4c1e-93a7-182339e9ab2a |
| SCIP notification number (Hungary) | c1e792b4-a3c3-4588-9961-c9b6c92b9f1f |
| SCIP notification number (Italy) | a154d057-a067-4b77-bc87-2fe4e05bb71b |
| SCIP notification number (Netherlands) | 83c45180-a7d9-46c2-b289-07e354bfd7b2 |
| SCIP notification number (Poland) | ed3246a7-c8e9-4776-b82b-9e9269447f56 |
| SCIP notification number (Romania) | 0f2155a6-15bd-425b-9099-8e96818463bb |
| SCIP notification number (Sweden) | 19fdef96-3c43-4e4b-8d3a-5bc647bfb1d0 |
