Açıklama
Technical Data

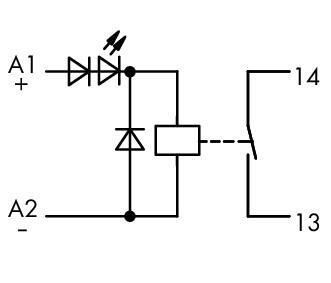

Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | ±10 % |
| Nominal input current at U N | 20 mA |
Load circuit
| Number of make contacts/switch on contacts | 1 |
| Contact material (relay) | AgNi 0.15 |
| Limiting continuous current | 5 A |
| Max. make current (resistive) | (AC) 16 A / 4 s |
| Max. switching voltage | AC 250 V |
| Max. switching power (resistive) | AC 1250 VA |
| Çekme süresi (tip.) | 4 ms |
| Bırakma süresi | 6 ms |
| Sıçrama süresi (tip.) | 2 ms |
| Electrical life (N.O.; resistive load; 23 °C) | 200 x 10³ switching operations |
| Mekanik ömür | 30 x 10⁶ switching operations |
Safety and protection
| Anma gerilimi | 300 V |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 4 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Bağlantı verisi
| Bağlantı teknolojisi | CAGE CLAMP® |
| WAGO terminal | WAGO 236 Series |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Sıyırma uzunluğu | 5 … 6 mm / 0.2 … 0.24 inches |
Geometrical Data
| Width | 13 mm / 0.512 inches |
| Height | 85 mm / 3.346 inches |
| Depth | 47 mm / 1.85 inches |
Mechanical data
| Montaj | DIN-35 ray |
Material Data
| Renk | gri |
| Yangın yükü | 0,515 MJ |
| Ağırlık | 30,6 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -25 … +40 °C |
| Surrounding air (storage) temperature | -25 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T ambient + 30 K) |
| Relative humidity | 5 … 75 % (yoğuşmasız) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 10.0 | 27-37-16-01 |
| ETIM 8.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| Recupel Type | |
| Pack. unit | 15 (1) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454468040 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) 7(a) 7(c)-I 7(c)-II |
| SCIP notification number (Austria) | 2f30d8f9-b28a-436a-8a07-58d4d6ad3508 |
| SCIP notification number (Belgium) | b109c886-a820-4d20-875e-1c770d4bb4bb |
| SCIP notification number (Bulgaria) | 99c47011-1971-427d-8364-2a453bd4ddff |
| SCIP notification number (Czech Republic) | 8b0e400c-6610-4efe-aaf4-e09ef3f4271c |
| SCIP notification number (Denmark) | 842789cd-75c4-4009-a398-dfc7071d5f0d |
| SCIP notification number (Finland) | 4ef5ab87-001f-4f47-a4aa-876f3b91966e |
| SCIP notification number (France) | 55410be8-a508-45cd-8545-5ad843752531 |
| SCIP notification number (Germany) | 890b0f9f-fd86-410a-9867-cd920f5c2b67 |
| SCIP notification number (Hungary) | 472c8994-308d-415a-9cc4-b981b923b738 |
| SCIP notification number (Italy) | 8a2d1f0c-488b-483d-8417-d1a846ff39b4 |
| SCIP notification number (Netherlands) | cb2e207a-6e64-49d3-93b2-cae7ac5f4cc6 |
| SCIP notification number (Poland) | 4b04aa0c-8767-4483-b522-4d639928a5ae |
| SCIP notification number (Romania) | 7be0d63c-a284-44b4-be09-b156676a377e |
| SCIP notification number (Sweden) | a2a46a5c-1913-4d96-9622-1f10cc4531b9 |
