Açıklama
Notes

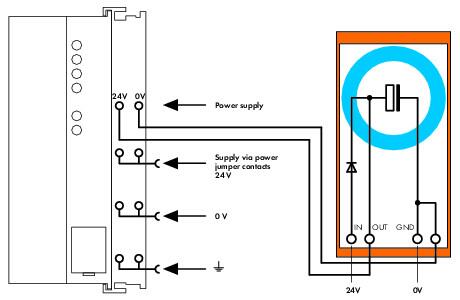

| Güvenlik bilgisi | Notice: Using insufficiently smoothed and unregulated single-phase power supplies may lead to voltage increases by the back-up capacitor module. |
Technical Data
Input
| Nominal input voltage U i nom | DC 24 V |
| Input voltage range | 0 … +25 % |
| Input current I i | ≤ 1 A |
Output
| Output voltage range |
Energy storage
| Nominal kapasite | 10000 µF |
Bağlantı verisi
| Bağlantı teknolojisi | CAGE CLAMP® |
| WAGO terminal | WAGO 236 Serisi |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Sıyırma uzunluğu | 5 … 6 mm / 0.2 … 0.24 inches |
Geometrical Data
| Width | 38 mm / 1.496 inches |
| Height | 85 mm / 3.346 inches |
| Depth | 81 mm / 3.189 inches |
Mekanik Veri
| Tasarım | Montaj taşıyıcısı |
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Renk | gri |
| Yangın yükü | 0,884 MJ |
| Ağırlık | 101,6 g |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-04-07-01 |
| eCl@ss 10.0 | 27-04-07-01 |
| ETIM 8.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| Pack. unit | 8 (1) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454649593 |
| SAP tesis 01'den gümrük tarifesi no. | 85322200000 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) 7(a) 7(c)-I 7(c)-II |
