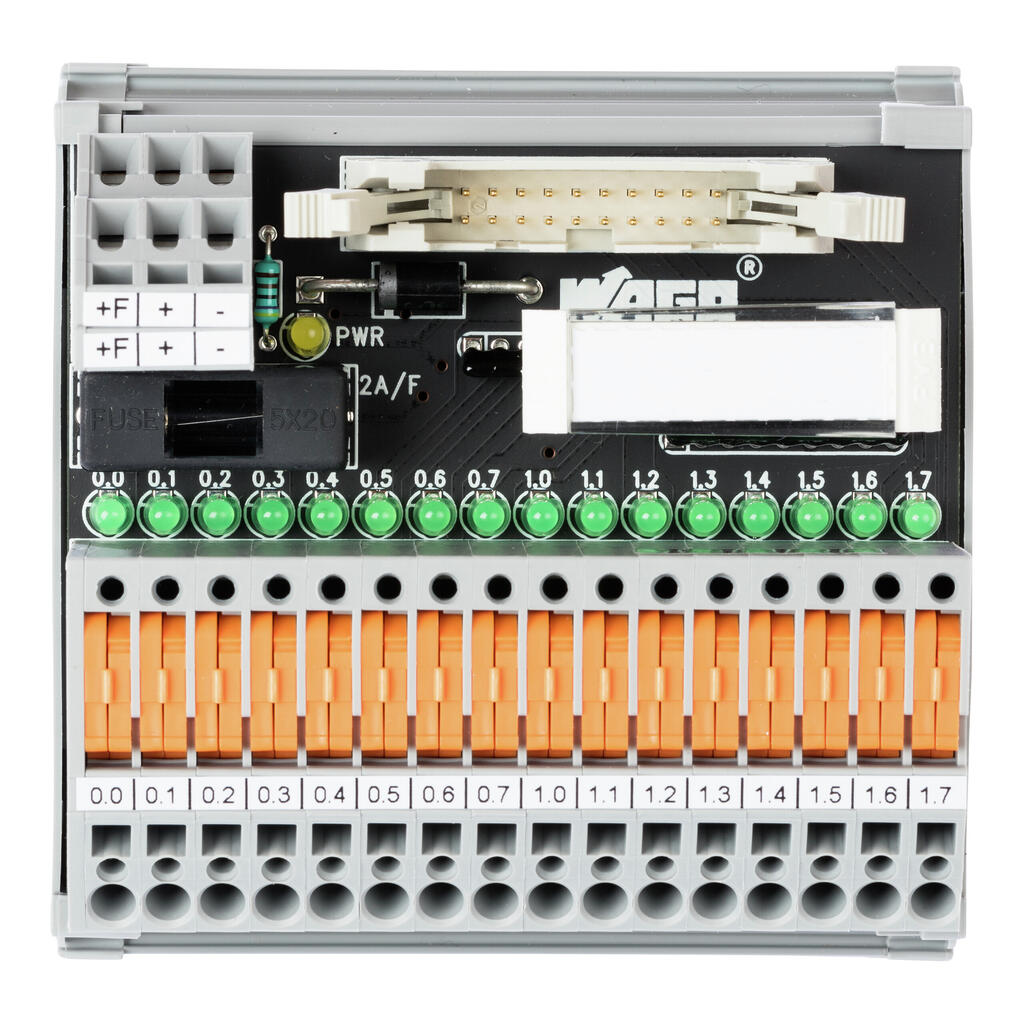

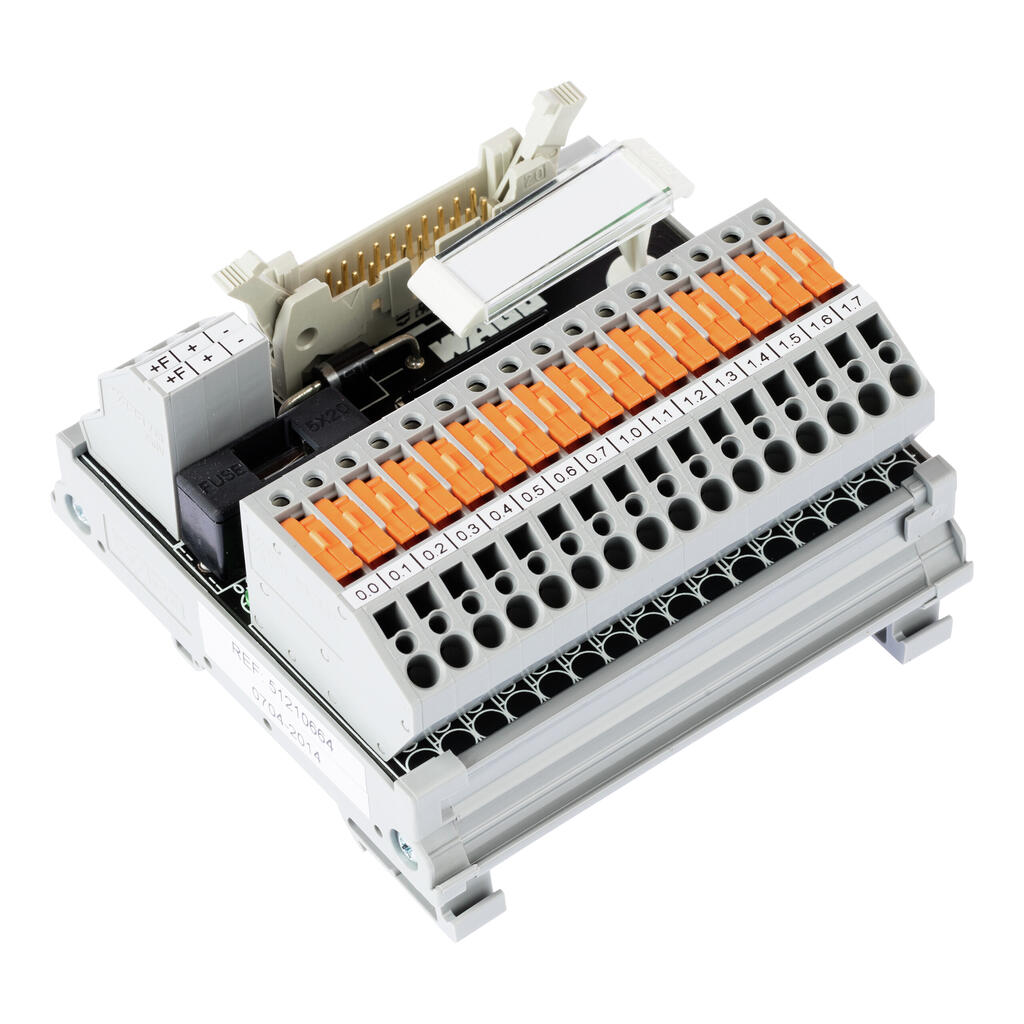

Açıklama

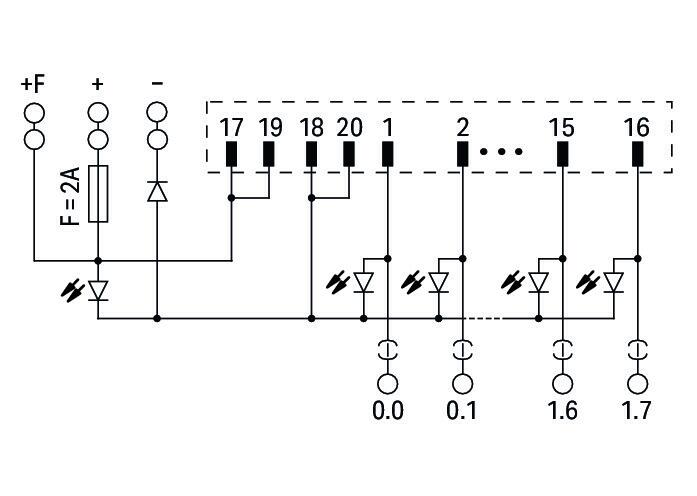

Elektrik Verisi
| In-/Outputs | 16 kanallı dijital giriş/çıkış |
| Circuit type | 1 iletkenli bağlantı |
| Nominal operating voltage | DC 24 V |
| Operating voltage | ±10 % |
| Güç tüketimi LED | 5 mA |
| Maks. toplam akım | 2 A |
| Limiting continuous current | 1 A |
| Durum göstergesi | Yeşil LED Sarı LED (güç kaynağı) |
| Dahili sigorta | Besleme: 2 A |
| Specialty functions | Ayırma/Test Klemensleri ile |
Safety and protection
| Anma gerilimi | 50 V |
| Nominal ani dalgalanma gerilimi | 0,8 kV |
| Kirlilik derecesi | 2 |
Compatibility
Siemens
| Siemens S7-300 | 6ES7 313-5BE01-0AB0 6ES7 313-5BG04-0AB0 6ES7 313-6BE01-0AB0 6ES7 313-6BF03-0AB0 6ES7 313-6CE01-0AB0 6ES7 313-6CF03-0AB0 6ES7 314-6BF01-0AB0 6ES7 314-6BG03-0AB0 6ES7 314-6CF01-0AB0 6ES7 314-6CG03-0AB0 6ES7 321-1BH02-0AA0 6ES7 321-1BH10-0AA0 6ES7 321-1BH80-0AA0 6ES7 321-1BL00-0AA0 6ES7 321-1BL80-0AA0 6ES7 321-1BP00-0AA0 6ES7 321-7BH01-0AB0 6ES7 321-7BH80-0AA0 6ES7 322-1BH01-0AA0 6ES7 322-1BH10-0AA0 6ES7 322-1BH80-0AA0 6ES7 322-1BL00-0AA0 6ES7 322-1BP00-0AA0 6ES7 322-1EH01-0AA0 6ES7 322-8BH01/8BH10-0AB0 6ES7 323-1BL00-0AA0 6ES7 326-1BK01-0AB0 6ES7 326-1RF00-0AB0 |
| Siemens S7-400 | 6ES7 421-1BL01-0AA0 6ES7 421-7BH01-0AB0 6ES7 422-1BL00-0AA0 6ES7 422-7BL00-0AB0 |
| Siemens S7-1500 | 6ES7 511-1CK00-0AB0 6ES7 512-1CK00-0AB0 6ES7 521-1BH00-0AA0 6ES7 521-1BH10-0AA0 6ES7 521-1BL00-0AB0 6ES7 521-1BL10-0AA0 6ES7 521-1BP00-0AA0 6ES7 522-1BH00-0AB0 6ES7 522-1BH01-0AB0 6ES7 522-1BH10-0AA0 6ES7 522-1BL00-0AB0 6ES7 522-1BL01-0AB0 6ES7 522-1BL10-0AA0 6ES7 522-1BP00-0AA0 6ES7 523-1BL00-0AA0 |
| Siemens ET200SP | 6ES7 131-6BH01-0BA0 6ES7 131-6BH01-2BA0 6ES7 132-6BH00-0AA0 6ES7 132-6BH00-2AA0 6ES7 132-6BH01-0BA0 6ES7 132-6BH01-2BA0 |
GE Fanuc
| GE Fanuc 9030 | IC693 MDL241 IC693 MDL640 IC693 MDL643 IC693 MDL645 IC693 MDL646 IC693 MDL655 IC693 MDL740 IC693 MDL742 IC693 MDL753 |
| GE Fanuc RX3i | IC694 MDL655 IC694 MDL753 |
Schneider
| Schneider Modicon TM3 | TM3 DI16(G) TM3 DI16K TM3 DI32K TM3 DQ16T(G) TM3 DQ16TK TM3 DQ32TK |
| Schneider Modicon M340 | BMX DDI 1602 BMX DDI 3202K BMX DDI 6402K BMX DDO 1602 BMX DDO 3202K BMX DDO 6402K BMX DDM 3202K |
| Schneider Modicon Quantum | 140 DDI 353 00 140 DDI 364 00 140 DDO 353 00 140 DDO 353 01 140 DDO 364 00 140 DDM 390 00 140 DSI 353 00 140 DVO 853 00 |
| Schneider TSX | TSX DEY 16D2 TSX DEY 16FK TSX DEY 32D2K TSX DEY 64D2K TSX DMY 28FK TSX DMY 28RFK TSX DSY 16T2 TSX DSY 32T2K TSX DSY 64T2K |
| Schneider Twido | TM2 DDI 16DK TM2 DDI 32DK TM2 DDO 16TK TM2 DDO 32TK |
Rockwell
| Rockwell Compact Logix | 1769 - IQ16 1769 - IQ16F 1769 - IQ32 1769 - IQ32T 1769 - OB16 1769 - OB16P 1769 - OB32 1769 - OB32T |
| Rockwell Control Logix | 1756 - IB16I 1756 - IB16ISOE 1756 - IB32 1756 - OB16E 1756 - OB16I 1756 - OB16IS 1756 - OB32 |
Omron
| Omron CJ1W | CJ1W-ID211 CJ1W-ID231 CJ1W-ID232 CJ1W-ID261 CJ1W-ID262 CJ1W-IDP01 CJ1W-INT01 CJ1W-MD232 CJ1W-OD212 CJ1W-OD232 CJ1W-OD262 |
WAGO
| WAGO I/O System 750 | 750-1400 750-1500 750-1502 |
| WAGO I/O System 753 | 753-430 (x2) 753-431 (x2) 753-530 (x2) |
Bağlantı verisi
Connection 1
| Pluggable connector | DIN 41651 Erkek konnektör |
| No. of poles 1 | 20 |
| Connection type (1) | Sistemi |
| Not (iletken kesiti) | 12 AWG: THHN, THWN |
| Mating direction | dikey |

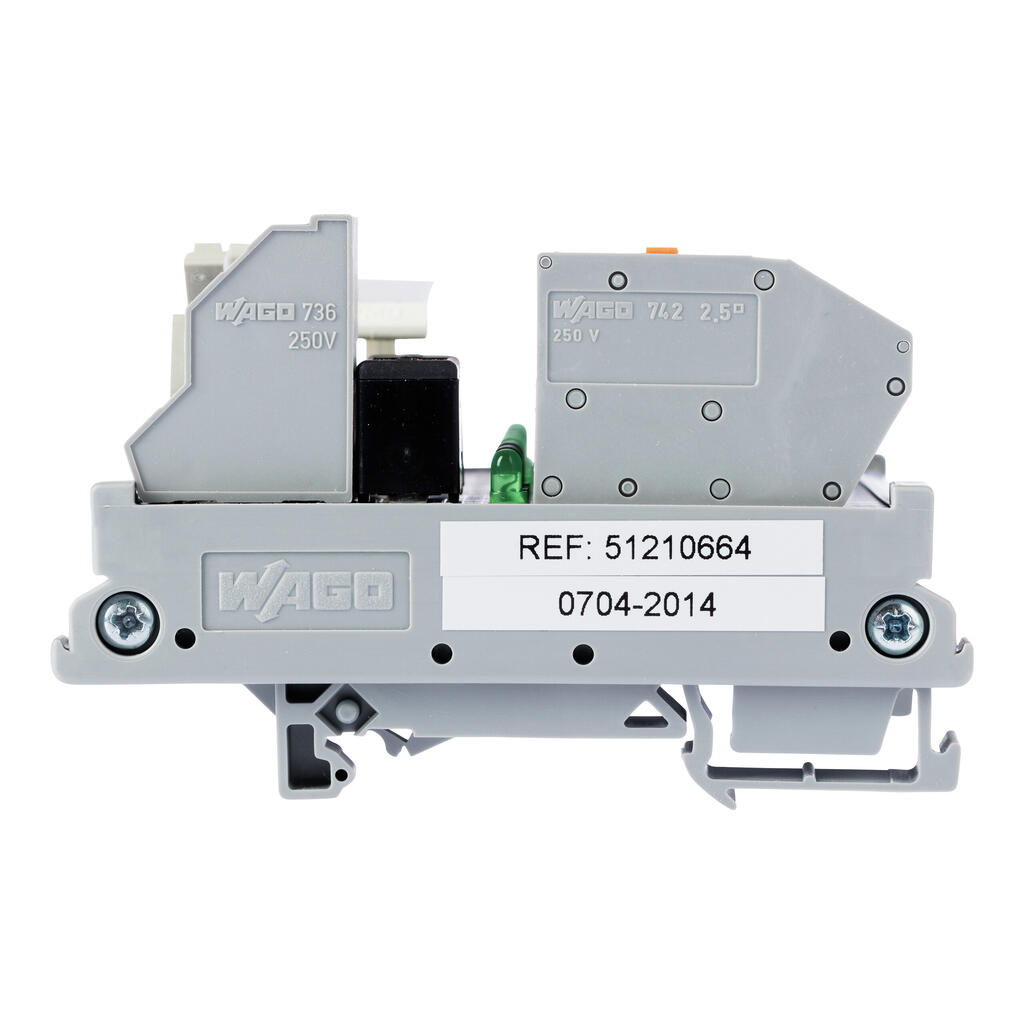

Connection 2
| Design 2 | PCB klemensler |
| No. of poles 2 | 16 |
| Connection type (2) | Alan |
| WAGO terminal 2 | WAGO 742 Series |
| tek damarlı, bağlanabilir | 0,08 … 2,5 mm² / 28 … 12 AWG |
| ince bükümlü, bağlanabilir | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Sıyırma uzunluğu | 8 … 9 mm / 0.31 … 0.35 inches |
Connection 3
| Design 3 | PCB klemensleri (iki katlı) |
| No. of poles 3 | 6 |
| Connection type (3) | Besleme |
| WAGO terminal 3 | WAGO 736 Serisi |
| tek damarlı, bağlanabilir | 0,08 … 2,5 mm² / 28 … 12 AWG |
| ince bükümlü, bağlanabilir | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Sıyırma uzunluğu | 5 … 6 mm / 0.2 … 0.24 inches |
