Açıklama
Notes
| Note | Kullanılan röleden bağımsız olarak kanal başına maksimum sürekli akım 5A'dir. |
Elektrik Verisi

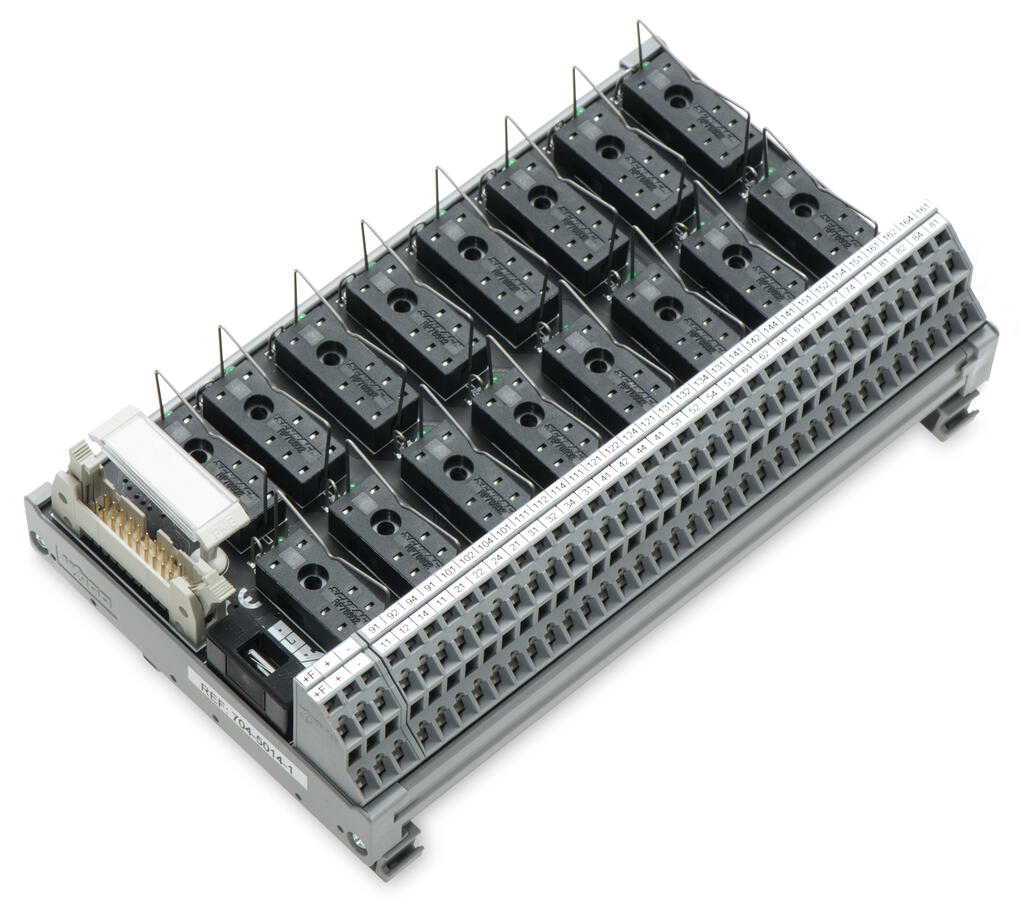

| In-/Outputs | 16 kanallı röle çıkışı |
| Nominal operating voltage | DC 24 V |
| Operating voltage | ±10 % |
| Number of changeover/switchover contacts | 1 |
| Limiting continuous current | 5 A |
| Making capacity | 2 ms 16 A |
| Max. switching voltage | AC 250 V; DC 48 V |
| Max. switching power (resistive) | AC 1250 VA; DC 50 W |
| Durum göstergesi | Yeşil LED Sarı LED (güç kaynağı) LED green (channel) LED yellow (power supply) |
| Dahili sigorta | Tedarik: 1 A; Röle çıkışı: |
| Specialty functions | temel rölesiz Without basic relay |
Safety and protection
| Anma gerilimi | 50 V |
| Nominal ani dalgalanma gerilimi | 0,8 kV |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 2,5 kVrms |
| Dielectric strength, load/load circuit (AC, 1 min) | 1 kVrms |
Compatibility
Siemens
| Siemens S7-300 | 6ES7 313-5BE01-0AB0 6ES7 313-5BG04-0AB0 6ES7 313-6BE01-0AB0 6ES7 313-6BF03-0AB0 6ES7 313-6CE01-0AB0 6ES7 313-6CF03-0AB0 6ES7 314-6BF01-0AB0 6ES7 314-6BG03-0AB0 6ES7 314-6CF01-0AB0 6ES7 314-6CG03-0AB0 6ES7 322-1BH01-0AA0 6ES7 322-1BH10-0AA0 6ES7 322-1BH80-0AA0 6ES7 322-1BL00-0AA0 6ES7 322-1BP00-0AA0 6ES7 322-1EH01-0AA0 6ES7 322-8BH01/8BH10-0AB0 6ES7 323-1BL00-0AA0 |
| Siemens S7-400 | 6ES7 422-1BL00-0AA0 |
| Siemens S7-1500 | 6ES7 511-1CK00-0AB0 6ES7 512-1CK00-0AB0 6ES7 522-1BH00-0AB0 6ES7 522-1BH01-0AB0 6ES7 522-1BH10-0AA0 6ES7 522-1BL00-0AB0 6ES7 522-1BL01-0AB0 6ES7 522-1BL10-0AA0 6ES7 522-1BP00-0AA0 6ES7 523-1BL00-0AA0 |
| Siemens ET200SP | 6ES7 132-6BH00-0AA0 6ES7 132-6BH00-2AA0 6ES7 132-6BH01-0BA0 6ES7 132-6BH01-2BA0 |
GE Fanuc
| GE Fanuc 9030 | IC693 MDL740 IC693 MDL742 IC693 MDL753 |
| GE Fanuc RX3i | IC694 MDL753 |
Schneider
| Schneider Modicon TM3 | TM3 DQ16T(G) TM3 DQ16TK TM3 DQ32TK |
| Schneider Modicon M340 | BMX DDO 1602 BMX DDO 3202K BMX DDO 6402K BMX DDM 3202K |
| Schneider Modicon Quantum | 140 DDO 353 00 140 DDO 353 01 140 DDO 364 00 140 DVO 853 00 |
| Schneider TSX | TSX DSY 16T2 TSX DSY 32T2K TSX DSY 64T2K TSX DMY 28FK TSX DMY 28RFK |
| Schneider Twido | TM2 DDO 16TK TM2 DDO 32TK |
Rockwell
| Rockwell Compact Logix | 1769 - OB16 1769 - OB16P 1769 - OB32 1769 - OB32T |
| Rockwell Control Logix | 1756 - OB16E 1756 - OB32 |
Omron
| Omron CJ1W | CJ1W-MD232 CJ1W-OD212 CJ1W-OD232 CJ1W-OD262 |
WAGO
| WAGO I/O System 750 | 750-1500 |
| WAGO I/O System 753 | 753-530 (x2) |
Bağlantı verisi
Connection 1
| Pluggable connector | DIN 41651 Erkek konnektör |
| No. of poles 1 | 20 |
| Connection type (1) | Sistemi |
| Not (iletken kesiti) | 12 AWG: THHN, THWN |
| Mating direction | dikey |
Connection 2
| Design 2 | PCB klemensleri (iki katlı) |
| No. of poles 2 | 64 |
| Connection type (2) | Alan |
| WAGO terminal 2 | WAGO 736 Serisi |
| tek damarlı, bağlanabilir | 0,08 … 2,5 mm² / 28 … 12 AWG |
| ince bükümlü, bağlanabilir | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Sıyırma uzunluğu | 5 … 6 mm / 0.2 … 0.24 inches |
Connection 3
| Design 3 | PCB klemensleri (iki katlı) |
| No. of poles 3 | 6 |
| Connection type (3) | Besleme |
| WAGO terminal 3 | WAGO 736 Serisi |
| tek damarlı, bağlanabilir | 0,08 … 2,5 mm² / 28 … 12 AWG |
| ince bükümlü, bağlanabilir | 0,08 … 2,5 mm² / 28 … 12 AWG |
| Sıyırma uzunluğu | 5 … 6 mm / 0.2 … 0.24 inches |
Geometrical Data
| Width | 180 mm / 7.087 inches |
| Height | 105 mm / 4.134 inches |
| Depth | 50 mm / 1.969 inches |
Mekanik Veri
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Yangın yükü | 1,966 MJ |
| Ağırlık | 270 g |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +50 °C |
| Surrounding air (storage) temperature | -40 … +70 °C |
| Relative humidity | ≤ 85% (yoğuşmasız) |
