Açıklama
Technical Data
| Number of digital inputs | 16 |
| Total number of channels (module) | 16 |
| Sinyal tipi | Digital Gerilim |
| Sinyal tipi | 24 VDC |

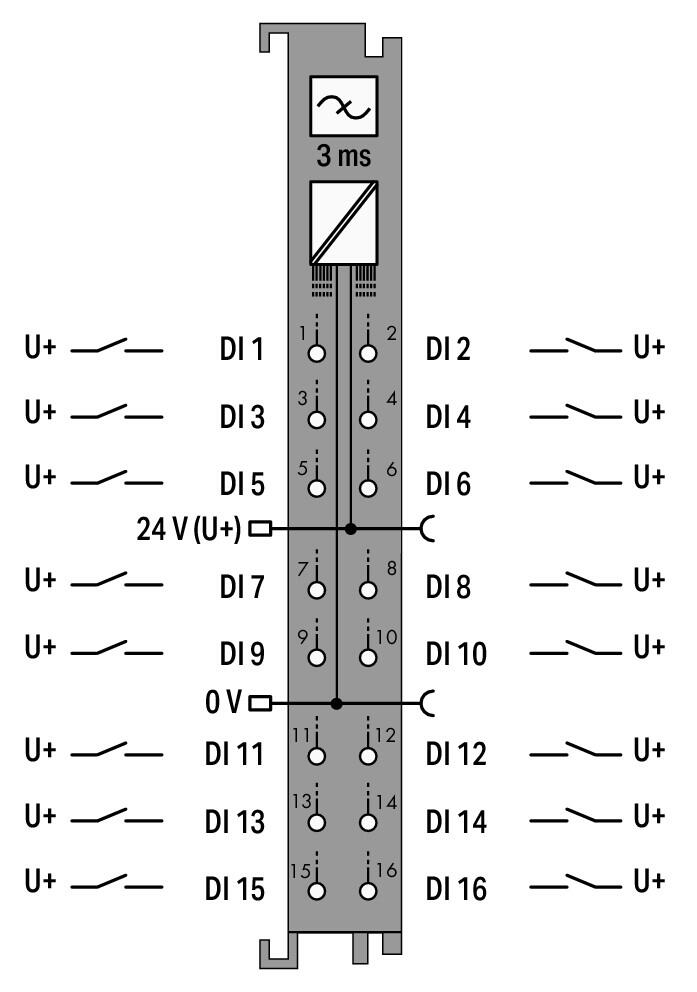

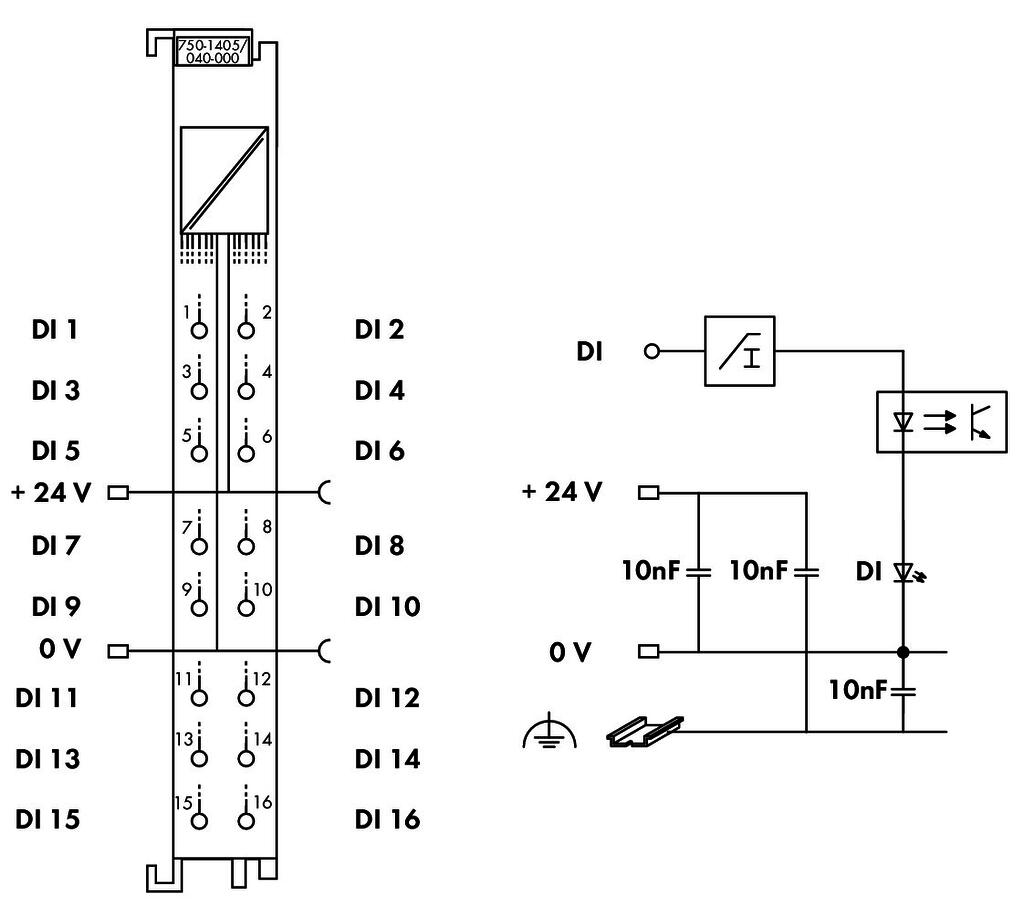

| Sensor connection | 16 x (1 telli) |
| Input characteristic | Yükselen kenar anahtarlama |
| Giriş karakteristikleri | Tip 1 |
| Input filter (digital) | 3 ms |
| Input current per channel for signal (0) typ. | 0,6 mA |
| Input current per channel for signal (1) typ. | 2,3 mA |
| Input current per channel for signal (1) min. | 2,1 mA |
| Input current per channel for signal (1) max. | 2,4 mA |
| Sinyal gerilimi (0) | −3 … +5 VDC |
| Sinyal gerilimi (1) | 15 … 30 VDC |
| Verzögerungszeit T_on von 0 nach 1 | 300 µs |
| Verzögerungszeit T_off von 1 nach 0 | 400 µs |
| Input data width (internal) max. | 16 Bit |
| System supply voltage | 5 VDC; veri kişileri aracılığıyla |
| Current consumption, system supply (5 V) | 25 mA |
| Field supply voltage | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed! |
| Dielektrik dayanımı | 510 VAC / 775 VDC; per EN 60870-2-1 |
| Rated surge voltage | 1 kV |

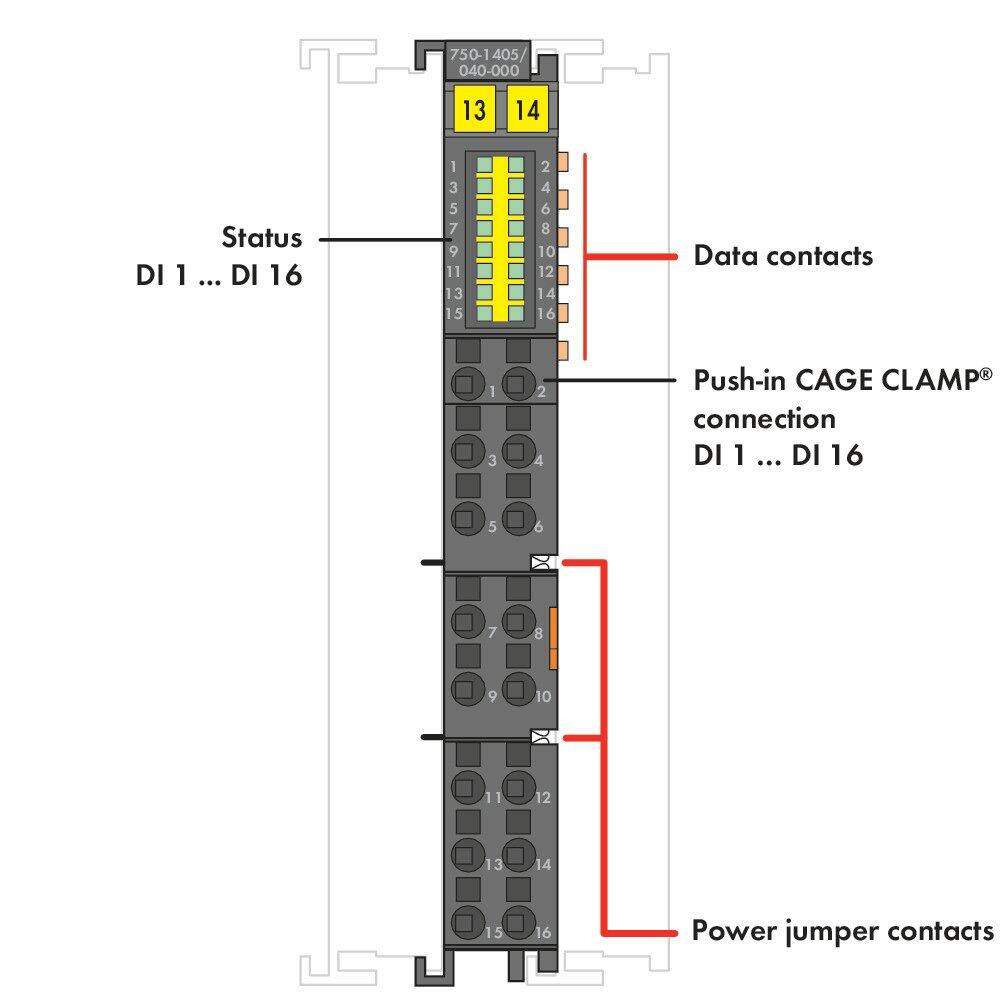

| Indicators | LED (1-16) yeşil: Durum DI 1 … DI 16 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity of the power jumper contacts | 10 A |
| Kapasite düşüşü | Derating (supply voltage): Ambient temperatures under laboratory conditions: (−25 … +30 %); for −40 … +55 °C: 24 V (−25 … +20 %); for +55 … +70 °C: 24 V (−25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple) |
