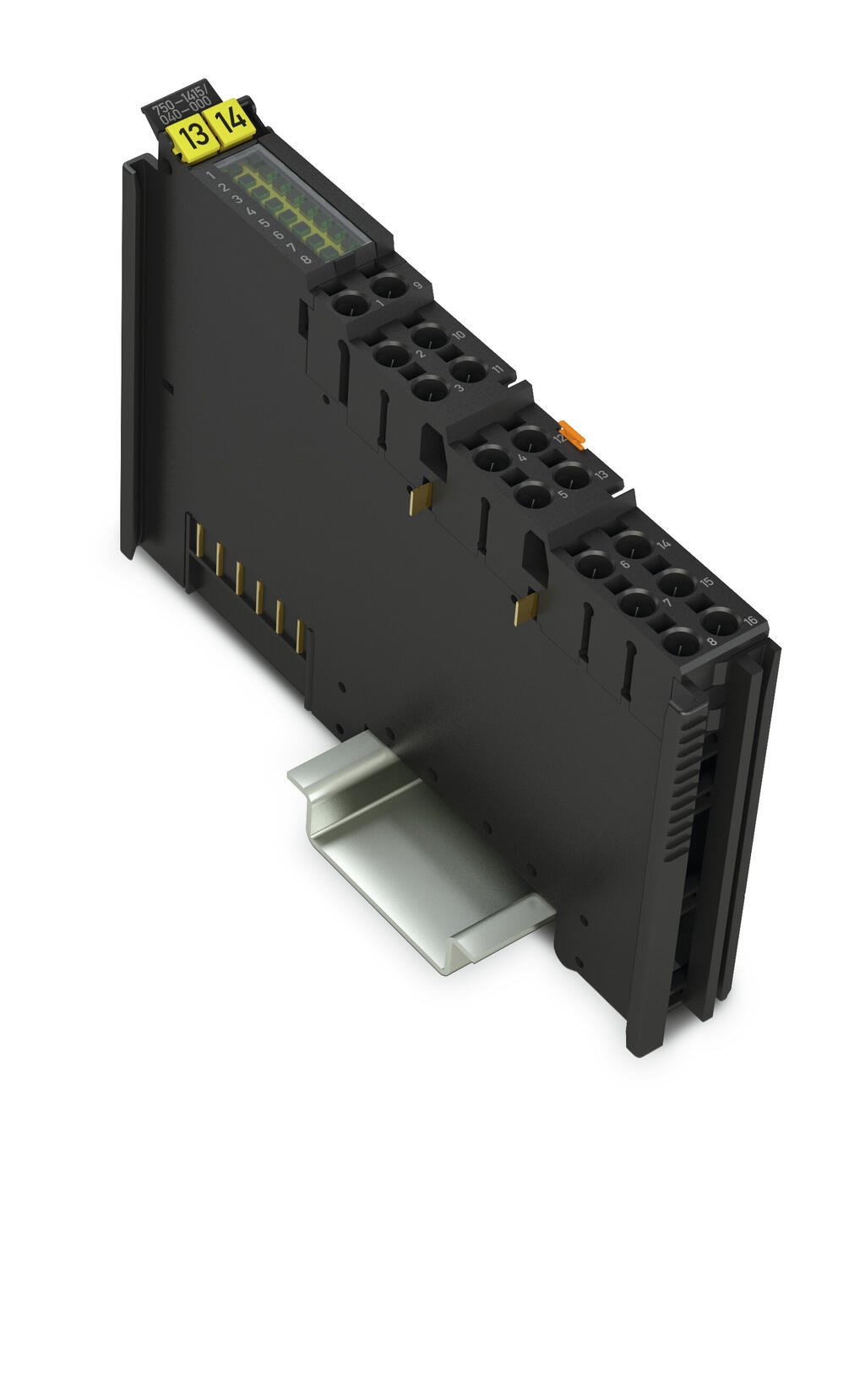

Açıklama
Technical Data
| Number of digital inputs | 8 |
| Total number of channels (module) | 8 |
| Sinyal tipi | Digital Gerilim |
| Sinyal tipi | 24 VDC |

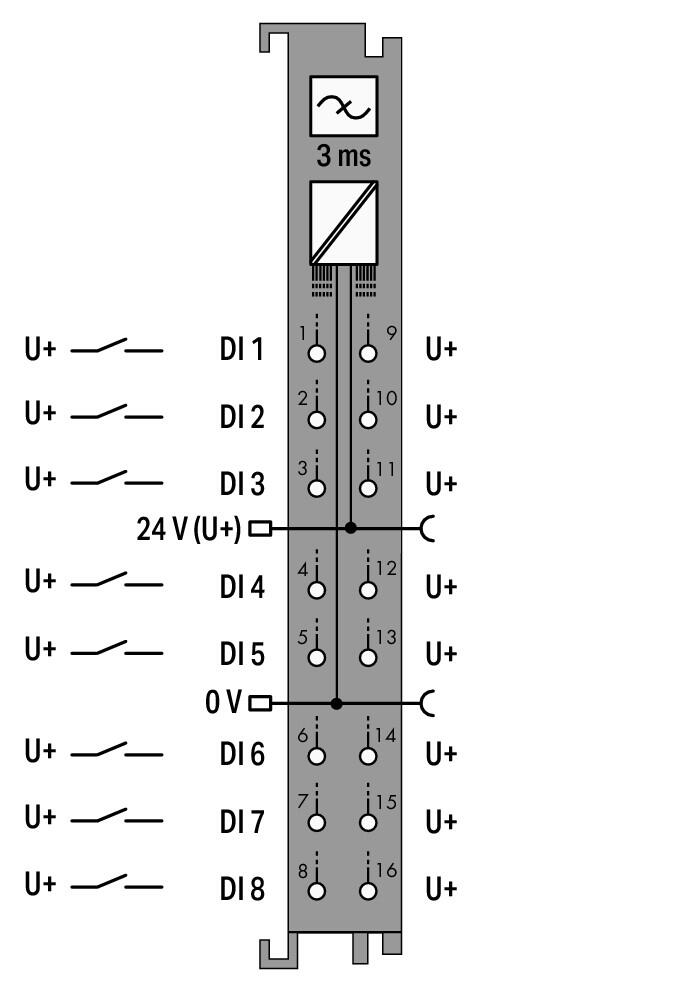

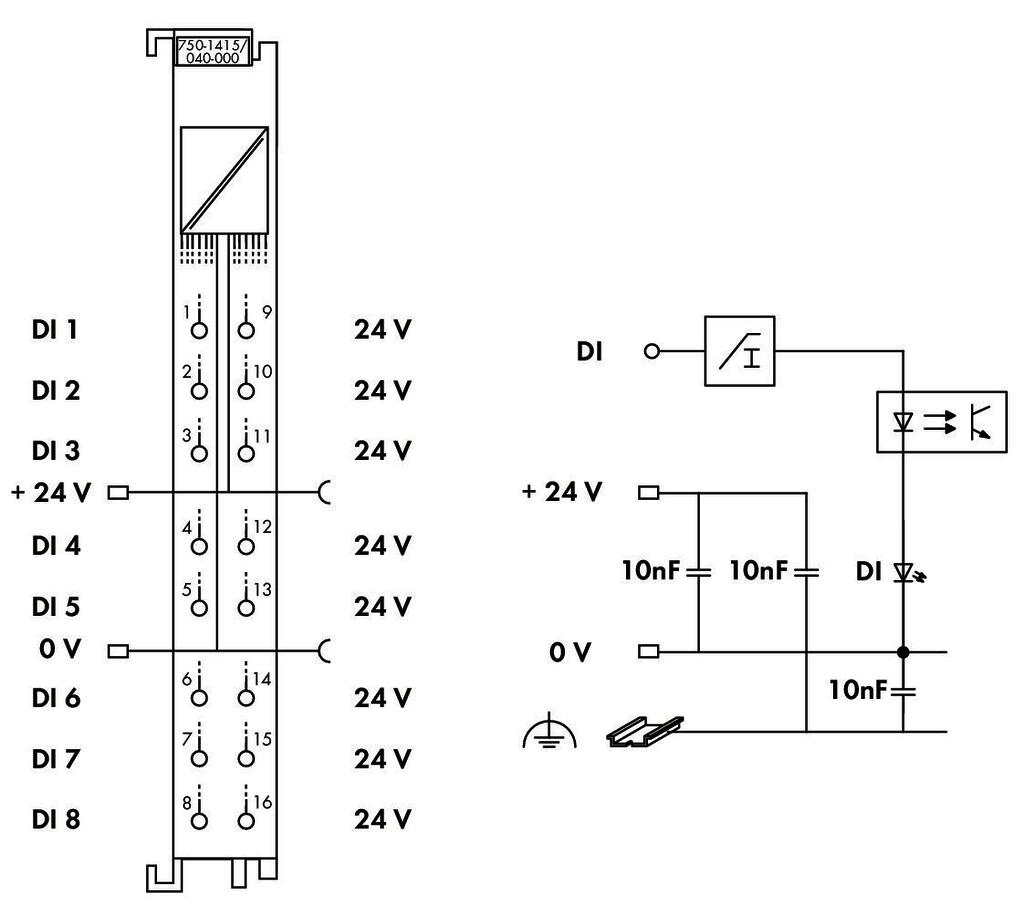

| Sensor connection | 8 x (2 telli) |
| Input characteristic | Yükselen kenar anahtarlama |
| Giriş karakteristikleri | Tip 3 |
| Input filter (digital) | 3 ms |
| Input current per channel for signal (0) typ. | 1,6 mA |
| Input current per channel for signal (1) typ. | 4,5 mA |
| Input current per channel for signal (1) min. | 4,3 mA |
| Input current per channel for signal (1) max. | 4,6 mA |
| Sinyal gerilimi (0) | −3 … +5 VDC |
| Sinyal gerilimi (1) | 11 … 30 VDC |
| Input data width (internal) max. | 8 Bit |
| System supply voltage | 5 VDC; veri kişileri aracılığıyla |
| Current consumption, system supply (5 V) | 6 mA |
| Field supply voltage | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed! |
| Current consumption, field supply (module with no external load) | 2 mA |
| Dielektrik dayanımı | 510 VAC / 775 VDC; per EN 60870-2-1 |
| Rated surge voltage | 1 kV |

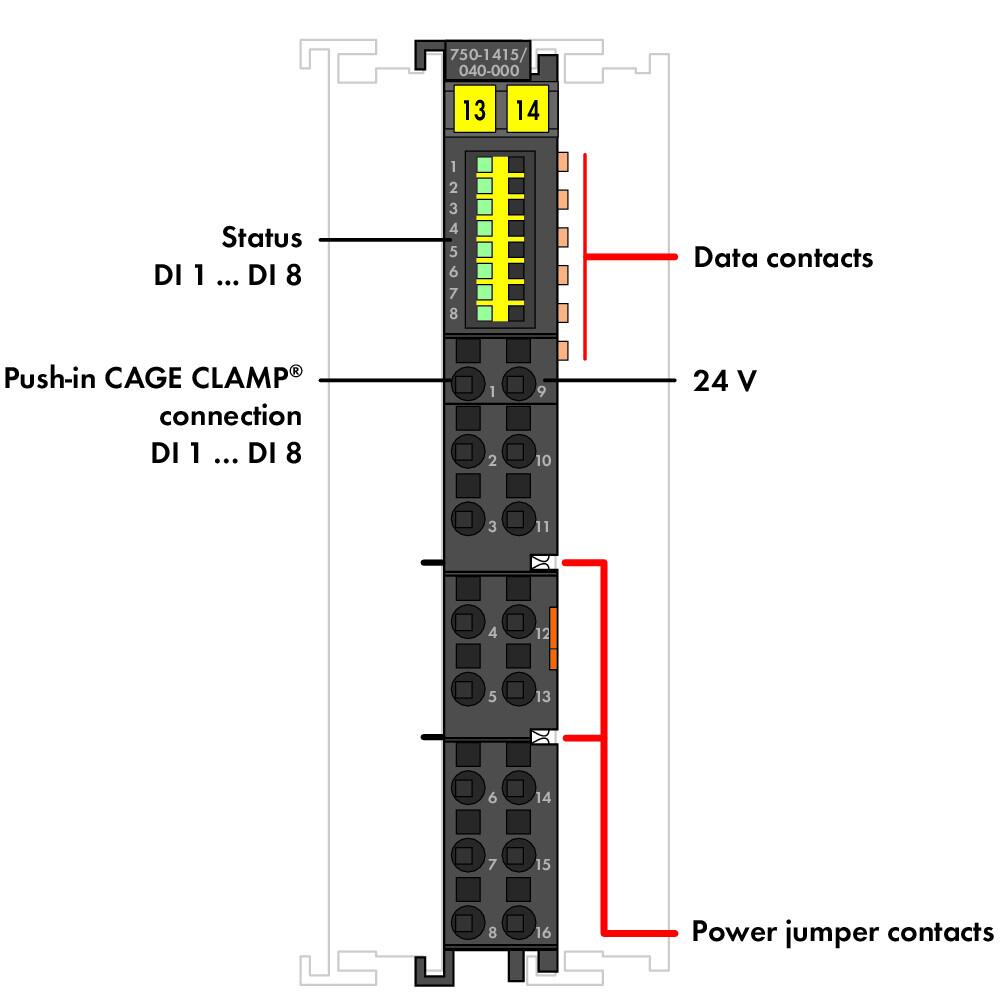

| Indicators | LED (1-8) yeşil: Durum DI 1 … DI 8 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity of the power jumper contacts | 10 A |
| Kapasite düşüşü | Derating (supply voltage): Ambient temperatures under laboratory conditions: (−25 … +30 %); for −40 … +55 °C: 24 V (−25 … +20 %); for +55 … +70 °C: 24 V (−25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple) |
Bağlantı verisi
| Connection technology: In-/Outputs | 16 x İtmeli CAGE CLAMP ® |
| Connection type (1) | Girişler / Çıkışlar |
| Tek damarlı boylar | 0,25 … 1,5 mm² / 24 … 16 AWG |
| İnce bükümlü kablolar | 0,25 … 1,5 mm² / 24 … 16 AWG |
| Sıyırma uzunluğu | 8 … 9 mm / 0.31 … 0.35 inches |
Geometrical Data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth | 61,8 mm / 2.433 inches |
Mekanik Veri
| Montaj tipi | DIN-35 ray |
Material Data
| Renk | koyu gri |
| Gövde malzemesi | Polikarbonat, poliamid 6.6 |
| Yangın yükü | 0,835 MJ |
| Ağırlık | 46,8 g |
| Uygunluk işareti | CE |
Environmental Requirements
| Surrounding air (operating) temperature | -40 … +70 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Koruma sınıfı | IP20 |
| Kirlilik derecesi (5) | IEC 61131-2'ye göre 2 |
| Çalışma yüksekliği | sıcaklık değer kaybı olmadan: 0… 2000 m; sıcaklık değer kaybı ile: 2000… 5000 m (0,5 K / 100 m); 5000 m (maks.) |
| Montaj pozisyonu | yatay (ayakta / yatarken); dikey |
| Nısbi nem (yoğuşmasız) | 95 % |
| Relative humidity | Sınıf 3K7/IEC EN 60721-3-3 ve E-DIN 40046-721-3 uyarınca kısa süreli yoğuşma (rüzgar kaynaklı yağış, su ve buz oluşumu hariç) |
| Titreşime dayanıklı | IEC 60068-2-6 (hızlanma: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155 uyarınca; EN 61373 |
| Darbe direnci | IEC 60068-2-27'ye göre (15g / 11 ms / yarım sinüs / 1.000 şok; 25g / 6 ms / 1.000 şok), EN 50155, EN 61373 |
| EMC immunity to interference | EN 61000-6-1, -2 uyarınca; EN 61131-2; deniz uygulamaları; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
| EMU: | EN 61000-6-3, -4, EN 61131-2, EN 60255-26, deniz uygulamaları, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 uyarınca |
| Kirletici maddelere maruziyet | IEC 60068-2-42 ve IEC 60068-2-43 uyarınca |
| Permissible H 2 S contaminant concentration at a relative humidity | 10 ppm |
| Permissible SO 2 contaminant concentration at a relative humidity | 25 ppm |
Ticari Veri
| Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 10.0 | 27-24-26-04 |
| ETIM 8.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4050821460213 |
| SAP tesis 01'den gümrük tarifesi no. | 85389099990 |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | Lead Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) 7(a) 7(c)-I 7(c)-II |
