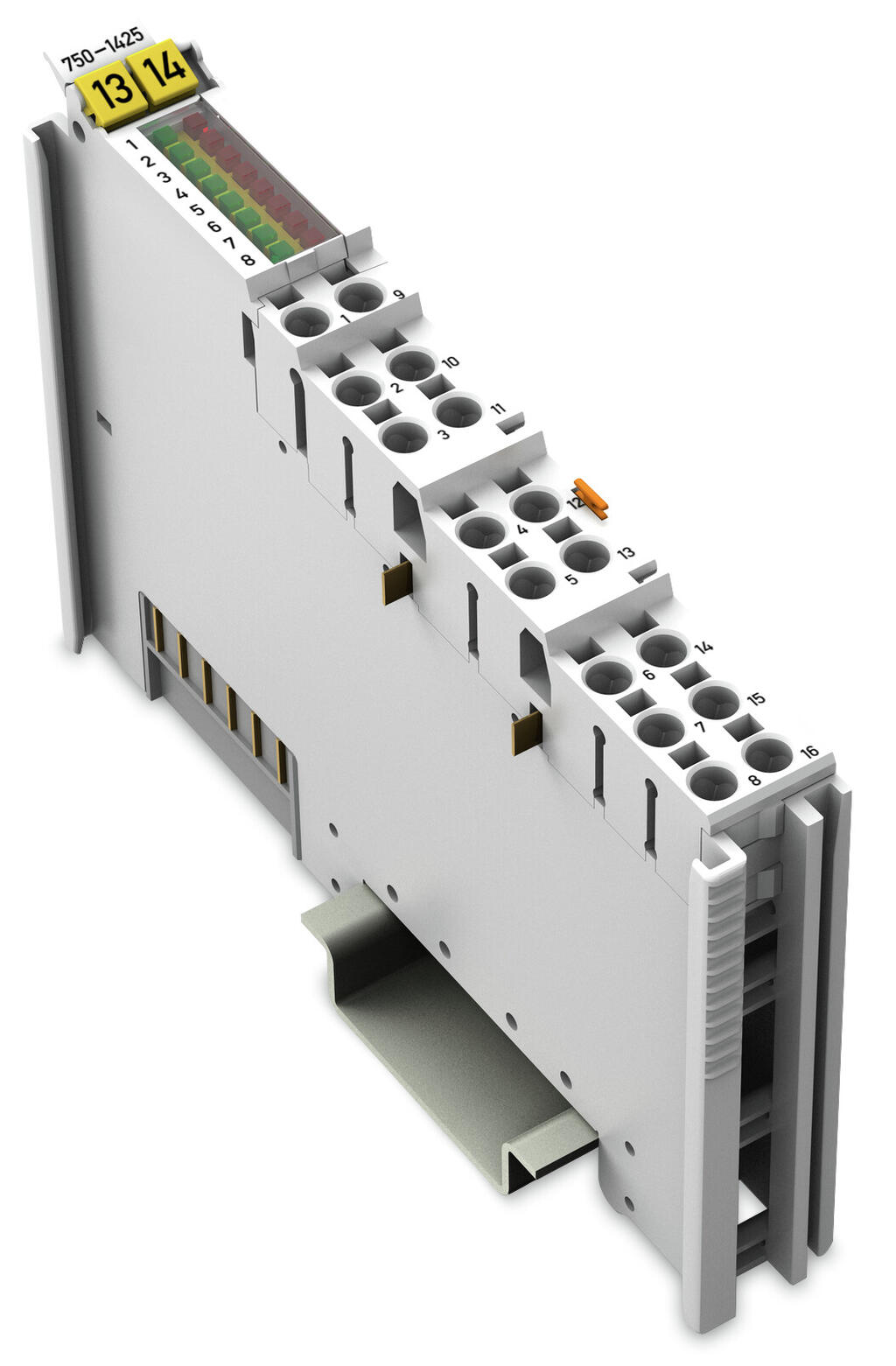

Açıklama
Technical Data
| Number of digital inputs | 8 |
| Total number of channels (module) | 8 |
| Sinyal tipi | PTC, DIN 44081/44082'ye göre termistör |

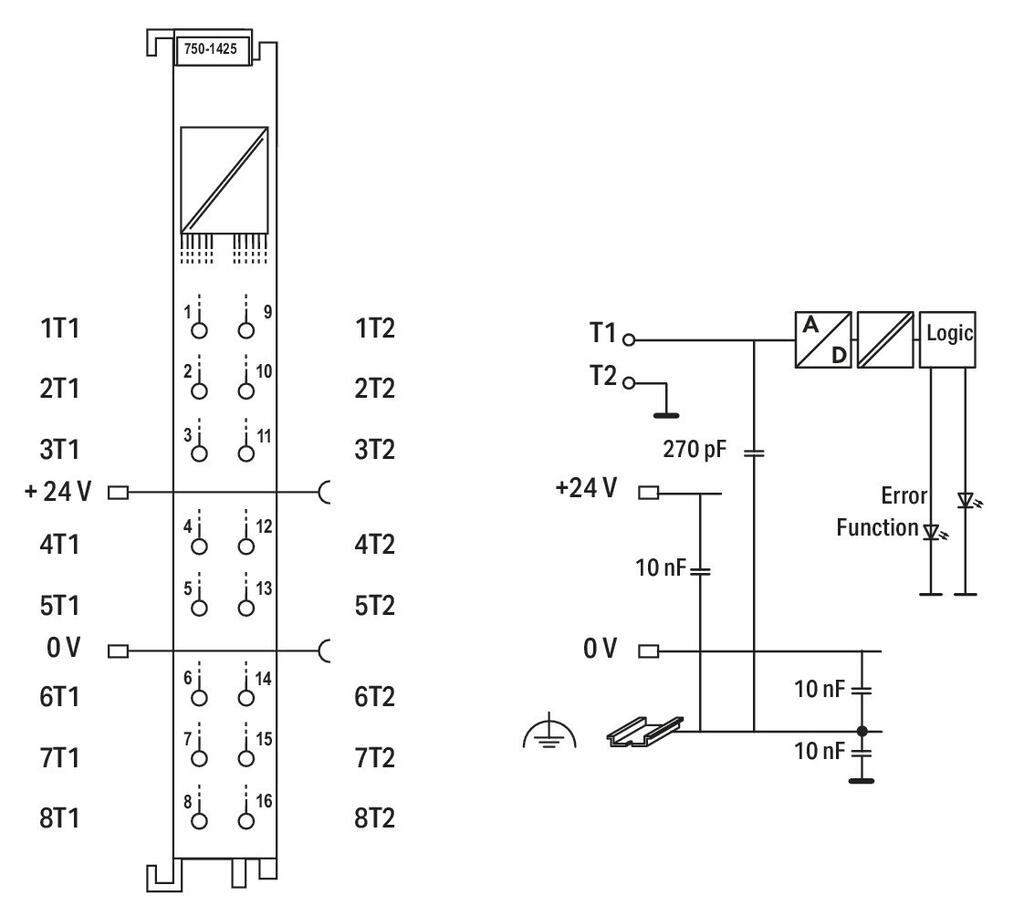

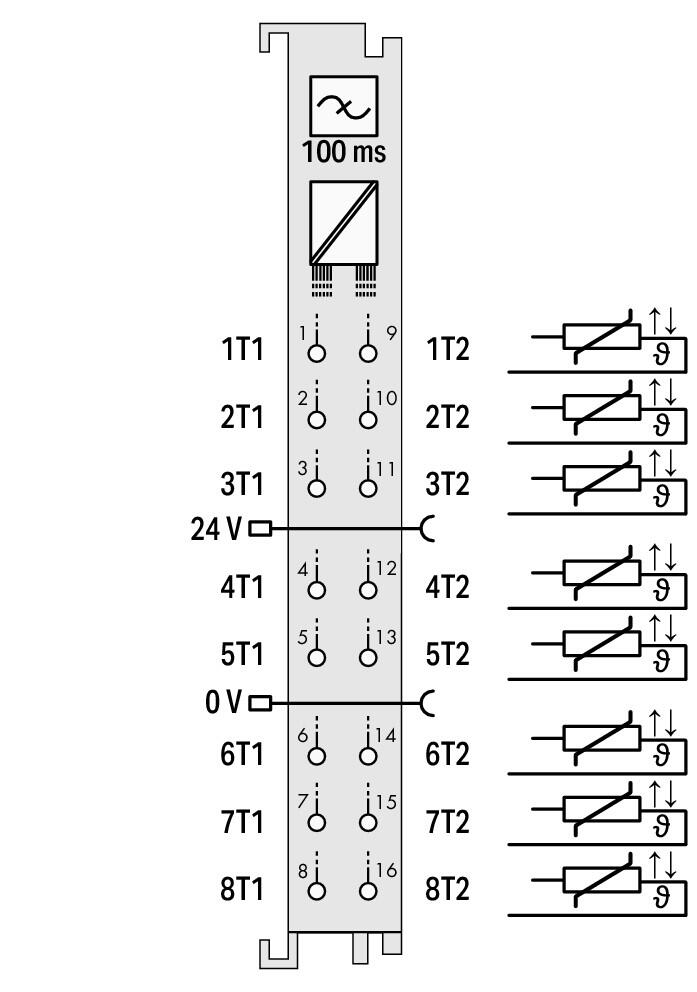

| Sensor connection | 8 x (2 telli) |
| Spezifische Eigenschalten des Sensors | Sensor voltage: ≤ 2.5 V / ≤ 7.5 V (based on resistance value); Number of PTCs per channel: max. 6 PTCs in series; Operating value (status bit “1” to “0”): R ≥ 3 kΩ; Return value (status bit “0” to “1”): ≤ 1.5 kΩ; Hysteresis: R = 1.5 kΩ; Wire break value: R ≥ 8 kΩ; Short circuit value: R ≤ 20 Ω |
| Input filter (digital) | 100 ms |
| Output current per channel | 0,001 A |
| Güç tüketimi P max. | 260 mW |
| Input data width (internal) max. | 16 Bit |
| Bit genişliği | 16-bit input: 8-bit data, 8-bit error (short circuit/wire break) |
| System supply voltage | 5 VDC; veri kişileri aracılığıyla |
| Current consumption, system supply (5 V) | 52 mA |
| Field supply voltage | 24 VDC (-25 … +30 %); güç jumper kontakları aracılığıyla (bıçak kontağı yoluyla güç kaynağı; yay kontağı yoluyla iletim) |
| İzolasyon | 500 V sistem/saha |

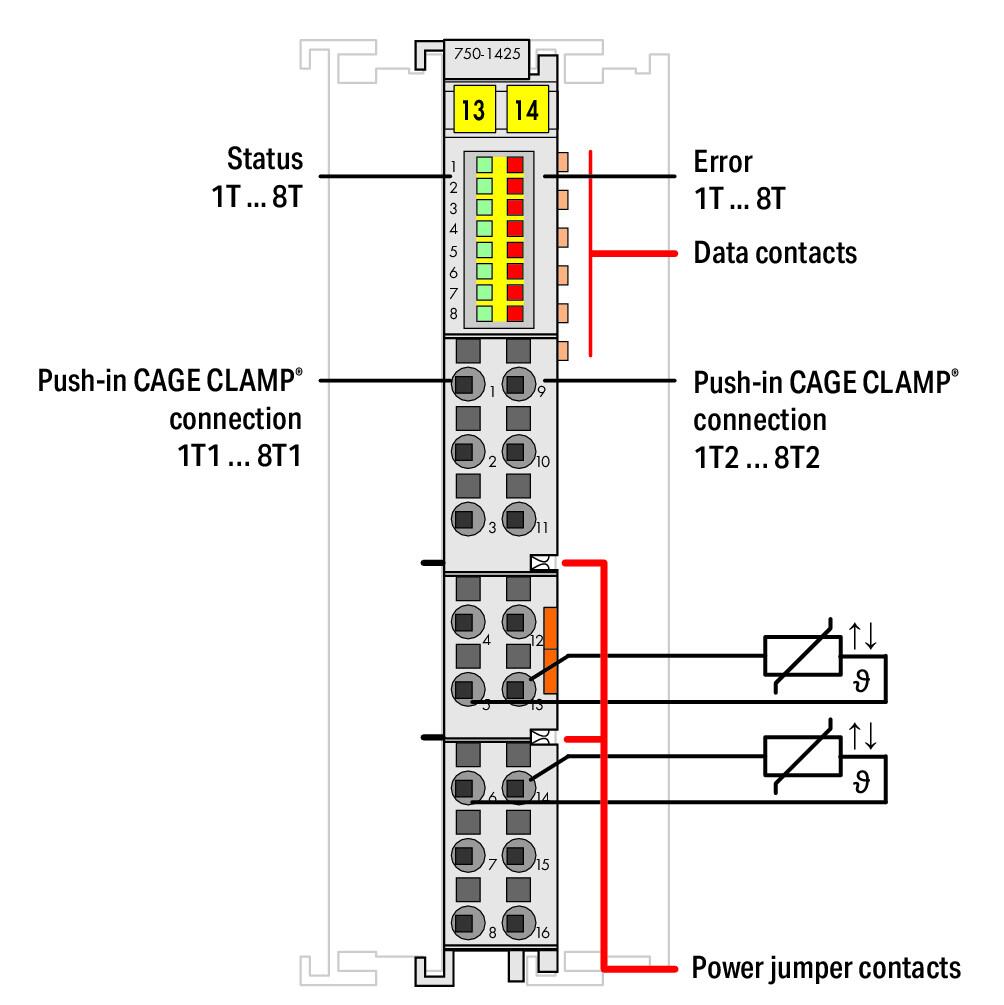

| Indicators | LED (1-8) yeşil: Durum 1T … 8T; LED (9-16) kırmızı: Hata 1T … 8T |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity of the power jumper contacts | 10 A |
Bağlantı verisi
| Connection technology: In-/Outputs | 16 x İtmeli CAGE CLAMP ® |
| Connection type (1) | Girişler / Çıkışlar |
| Tek damarlı boylar | 0,08 … 1,5 mm² / 28 … 16 AWG |
| İnce bükümlü kablolar | 0,25 … 1,5 mm² / 22 … 16 AWG |
| Sıyırma uzunluğu | 8 … 9 mm / 0.31 … 0.35 inches |
Geometrical Data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth | 61,8 mm / 2.433 inches |
Mekanik Veri
| Montaj tipi | DIN-35 ray |
| Tak-çıkar konnektör | Hayır |
Material Data
| Gövde malzemesi | Polikarbonat, poliamid 6.6 |
| Yangın yükü | 0,837 MJ |
| Ağırlık | 46,5 g |
| Uygunluk işareti | CE |
Environmental Requirements
| Surrounding air (operating) temperature | 0 … +55 °C |
| Surrounding air (storage) temperature | -25 … +85 °C |
| Koruma sınıfı | IP20 |
| Kirlilik derecesi (5) | IEC 61131-2'ye göre 2 |
| Çalışma yüksekliği | 0 … 2000 m |
| Montaj pozisyonu | yatay (ayakta / yatarken); dikey |
| Nısbi nem (yoğuşmasız) | 95 % |
| Titreşime dayanıklı | IEC 60068-2-6 uyarınca 4g |
| Darbe direnci | IEC 60068-2-27 'e göre 15g |
| EMC immunity to interference | EN 61000-6-2 uyarınca, denizcilik uygulamaları |
| EMU: | EN 61000-6-4 uyarınca, denizcilik uygulamaları |
| Kirletici maddelere maruziyet | IEC 60068-2-42 ve IEC 60068-2-43 uyarınca |
| Permissible H 2 S contaminant concentration at a relative humidity | 10 ppm |
| Permissible SO 2 contaminant concentration at a relative humidity | 25 ppm |
Ticari Veri
| Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 10.0 | 27-24-26-04 |
| ETIM 8.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4050821880745 |
| SAP tesis 01'den gümrük tarifesi no. | 85389099990 |
Environmental Product Compliance
| CAS-No. | 11120-22-2 1303-86-2 1317-36-8 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide Lead Lead monoxide Lead silicate |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
