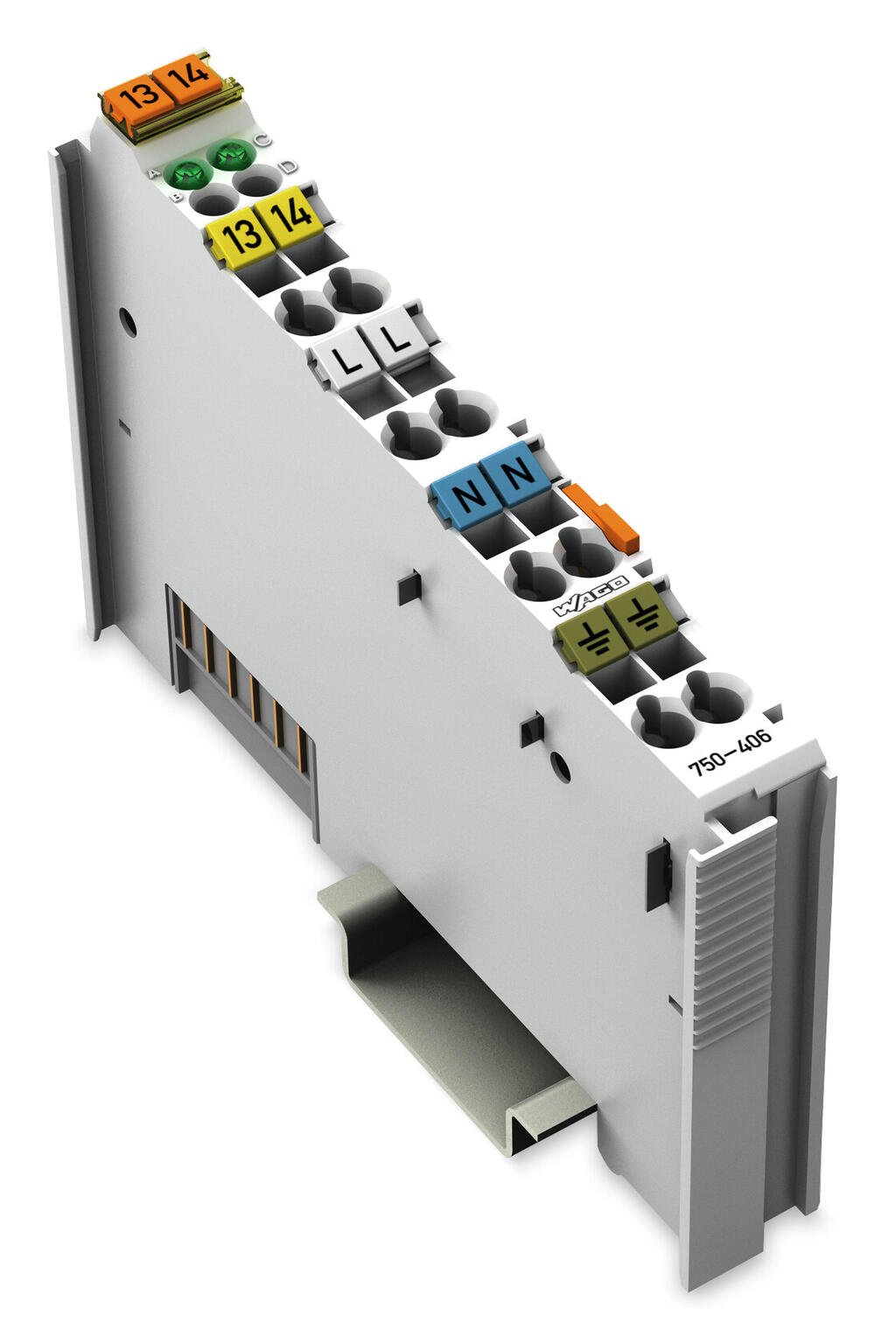

Technical Data
| Number of digital inputs | 2 |
| Total number of channels (module) | 2 |
| Sinyal tipi | Digital Gerilim |
| Sinyal tipi | 120 VAC |

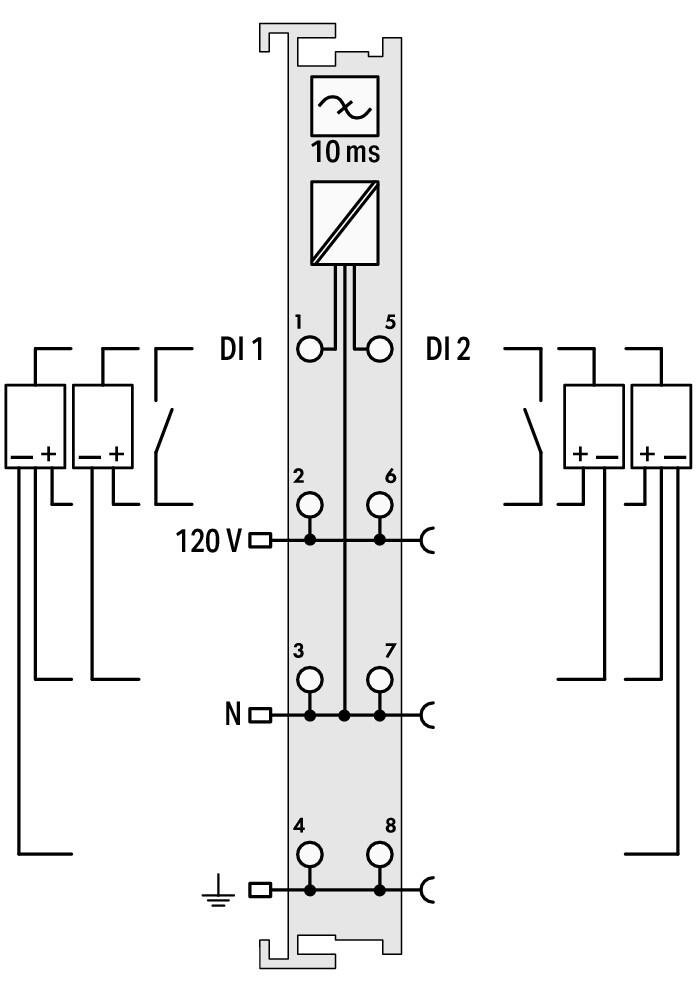

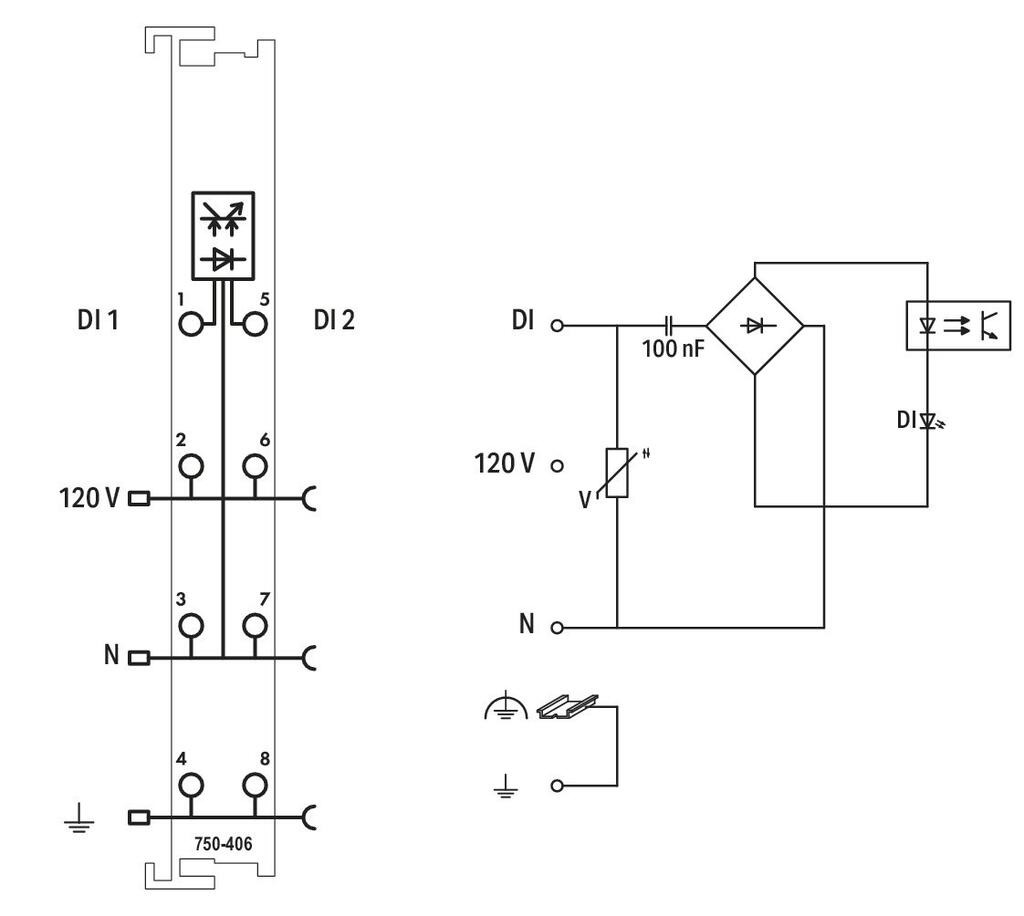

| Sensor connection | 2 x (2 telli, 3 telli, 4 telli) |
| Input characteristic | Yükselen kenar anahtarlama |
| Input filter (digital) | 10 ms |
| Input current per channel for signal (1) typ. | 4,5 mA |
| Sinyal gerilimi (0) | 0 … 20 VAC |
| Sinyal gerilimi (1) | 79 VAC… 1,1 x U N |
| Signal frequency min. | 45 Hz |
| Signal frequency max. | 65 Hz |
| Input data width (internal) max. | 2 Bit |
| System supply voltage | 5 VDC; veri kişileri aracılığıyla |
| Current consumption, system supply (5 V) | 2 mA |
| Field supply voltage | 120 VAC (-15 … +20 %); güç jumper kontakları aracılığıyla (bıçak kontağı yoluyla güç kaynağı; yay kontağı yoluyla iletim) |
| İzolasyon | 1500 V sistem/saha |

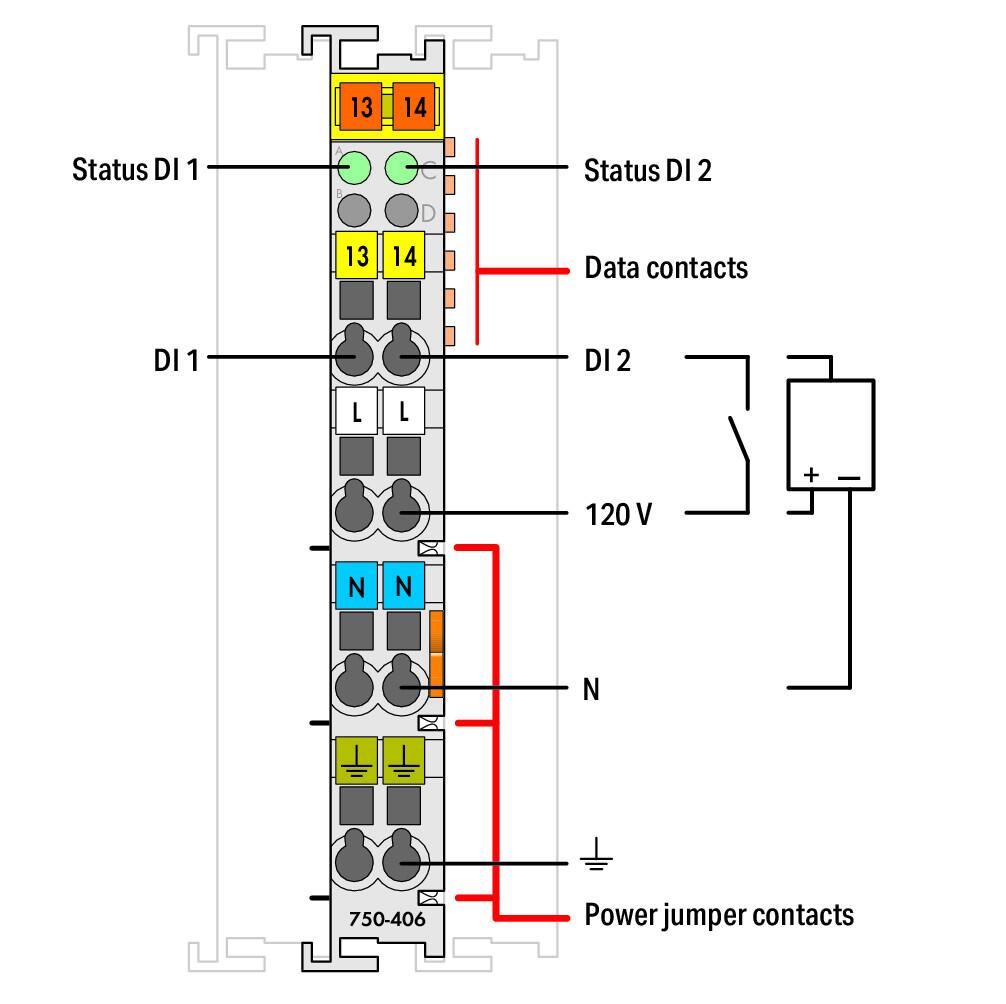

| Indicators | LED (A, C) yeşil: Durum DI 1, DI 2 |
| Number of incoming power jumper contacts | 3 |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity of the power jumper contacts | 10 A |
Bağlantı verisi
| Connection technology: In-/Outputs | 8 x CAGE CLAMP® |
| Connection type (1) | Girişler / Çıkışlar |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| Sıyırma uzunluğu | 8 … 9 mm / 0.31 … 0.35 inches |
Geometrical Data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69,8 mm / 2.748 inches |
| Depth | 62,6 mm / 2.465 inches |
Mekanik Veri
| Montaj tipi | DIN-35 ray |
| Tak-çıkar konnektör | Hayır |
Material Data
| Renk | light gray |
| Gövde malzemesi | Polikarbonat, poliamid 6.6 |
| Yangın yükü | 1,241 MJ |
| Ağırlık | 47,6 g |
| Uygunluk işareti | CE |
Environmental Requirements
| Surrounding air (operating) temperature | 0 … +55 °C |
| Surrounding air (storage) temperature | -25 … +85 °C |
| Koruma sınıfı | IP20 |
| Kirlilik derecesi (5) | IEC 61131-2'ye göre 2 |
| Çalışma yüksekliği | 0 … 2000 m |
| Montaj pozisyonu | yatay (ayakta / yatarken); dikey |
| Nısbi nem (yoğuşmasız) | 95 % |
| Titreşime dayanıklı | IEC 60068-2-6 uyarınca 4g |
| Darbe direnci | IEC 60068-2-27 'e göre 15g |
| EMC immunity to interference | EN 61000-6-2 uyarınca, denizcilik uygulamaları |
| EMU: | EN 61000-6-4 uyarınca, denizcilik uygulamaları |
| Kirletici maddelere maruziyet | IEC 60068-2-42 ve IEC 60068-2-43 uyarınca |
| Permissible H 2 S contaminant concentration at a relative humidity | 10 ppm |
| Permissible SO 2 contaminant concentration at a relative humidity | 25 ppm |
Ticari Veri
| Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 10.0 | 27-24-26-04 |
| ETIM 8.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454392727 |
| SAP tesis 01'den gümrük tarifesi no. | 85389099990 |
Environmental Product Compliance
| CAS-No. | 12060-00-3 1303-86-2 1317-36-8 25550-51-0 7439-92-1 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol 4-Methyl-1,2-cyclohexanedicarboxylic anhydride Diboron trioxide Lead Lead monoxide Lead titanium oxide (PbTiO3) |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) 7(a) 7(c)-I 7(c)-II |
