Açıklama
Technical Data
| İletişim | RS-485 Seri Arabirim |
| Device-specific | Number of devices that can be connected in series in Modbus mode: max. 10; ESP3 mode: 1:1 connection |
| Kablosuz teknolojisi | EnOcean |
| Frekans bandı | 868 MHz |
| İletim menzili | approx. 30 m within buildings; >100 m in open space |
| Anten | Internal (external antenna optional via SMA socket) |
| Baud rate | 9,6 kBd … 115,2 kBd |
| Bit genişliği | 50 bytes |
| Supply voltage | 24 VDC (18 … 31,2 V) |
| Aşırı gerilim kategorisi | III |
Bağlantı verisi

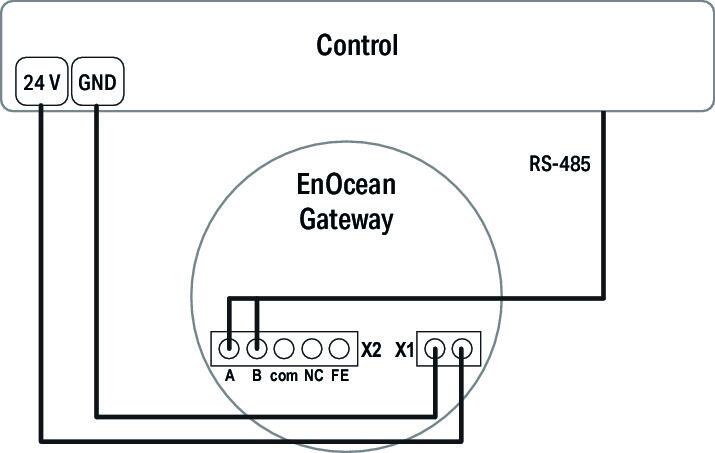

| Connection technology: communication/fieldbus | 1 x RS-485 connection: 5-pole, 2-conductor compact PCB connectors with PUSH WIRE® (252-155 is included) |
| Anschlusstechnik: Versorgung | 1 x 2-pole, 2-conductor compact PCB connectors with PUSH WIRE® (252-152 is included) |
| Connection technology: Antenna | 1 x SMA socket for external antenna |
| Connection type (1) | Communication |
| Tek damarlı boylar | 0,4 … 0,8 mm² / 26 … 20 AWG |
| Sıyırma uzunluğu | 6 … 7 mm / 0.24 … 0.28 inches |
| Connection type (2) | Besleme |
| tek damarlı, bağlanabilir | 0,4 … 0,8 mm² / 26 … 20 AWG |
| Sıyırma uzunluğu | 6 … 7 mm / 0.24 … 0.28 inches |
Geometrical Data
| Height | 36 mm / 1.417 inches |
| Çap | 95 mm |
Material Data
| Ağırlık | 97 g |
| Uygunluk işareti | CE |
Environmental Requirements
| Surrounding air (operating) temperature | 0 … +55 °C |
| Surrounding air (storage) temperature | -20 … +85 °C |
| Koruma sınıfı | IP30 |
| Kirlilik derecesi (5) | 2 per EN 60664-1, EN 61131-2 |
| EMC immunity to interference | EN 61000-6-2' göre |
| EMU: | per EN 61000-6-3 + A1 |
Ticari Veri
| ETIM 8.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | BOX |
| SAP tesis 01'den menşei | DE |
| GTIN | 4066966154894 |
| SAP tesis 01'den gümrük tarifesi no. | 84733080000 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
