Açıklama
Technical Data
| Connection type | M23 soket - Boş uç |

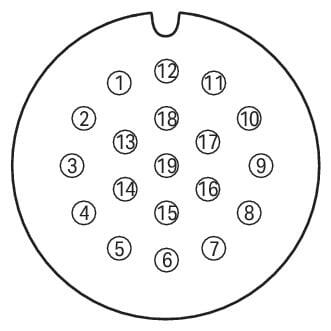

| Kutup sayısı | 19 |
| Leitungsanschlussrichtung zur Steckrichtung | 0 ° |
| Cable length | 5 m |
| Çalışma gerilimi | ≤ 300 V |
| Operating current | 8 A |
| Operating current | 10 mm² 1 A |
| Rated surge voltage | ≥ 2.0 kV rms |
Mekanik Veri
| Bending cycles | 2 Mio. |
| Schleppkettentauglichkeit | Evet |
| Sheathed cable diameter | 11,3 … 11,9 mm |
| Ağırlık | 748 g |
| Renk | siyah |
Environmental Requirements
| Umgebungstemperatur (Betrieb) bewegt | -25 … +80 °C |
| Umgebungstemperatur (Betrieb) ruhend | -40 … +80 °C |
| Koruma sınıfı | IP67 |
Ticari Veri
| Product Group | 23 (I/O passive and accessories) |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 10.0 | 27-06-03-11 |
| ETIM 8.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4044918569040 |
| SAP tesis 01'den gümrük tarifesi no. | 85444290900 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
