Açıklama
Technical Data
| R ON (maks.) | 0,01 Ω |
| Supply voltage | 10 … 30 VDC; Anma gerilimi: 32 V ~ rms |
| Current carrying capacity of the signal connections | 2 A |
| Current carrying capacity of the supply connections | 6 A |
| Bemessungswert der galvanischen Trennung | 500 V |
| Funktional getrennte Potentialgruppen | Kontakt/Kontakt |
| Insulation resistance | 1000 MΩ |
| Signal characteristic | PNP |
| Indicators | LED sarı: Sinyal durumu (kontak başına 1 x); LED (U) yeşil: Sensör / aktüatör kutusu durumu |

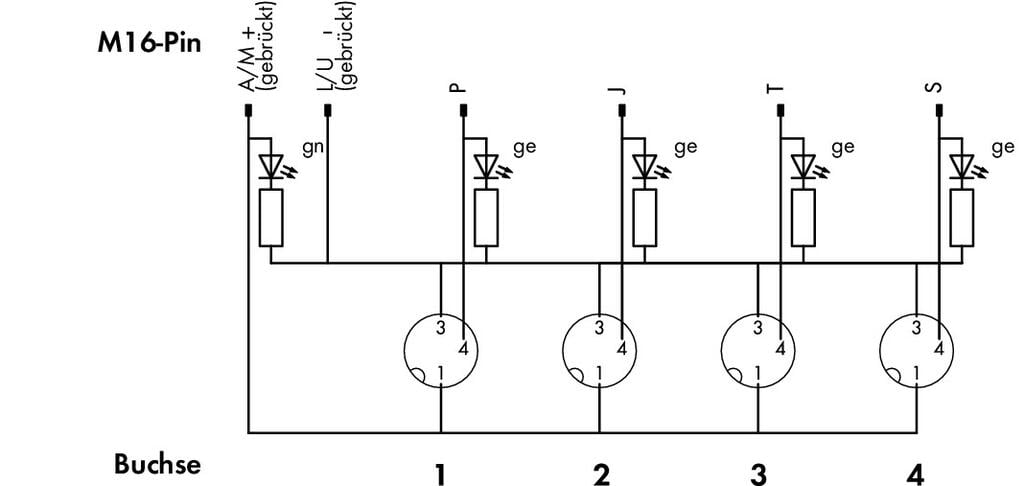

Bağlantı verisi
| Connection technology: In-/Outputs | 4 x M8 soketi; 3 kutuplu |
| Connection technology: trunk cable | 1 x M16 fişi; 14 kutuplu |
Geometrical Data

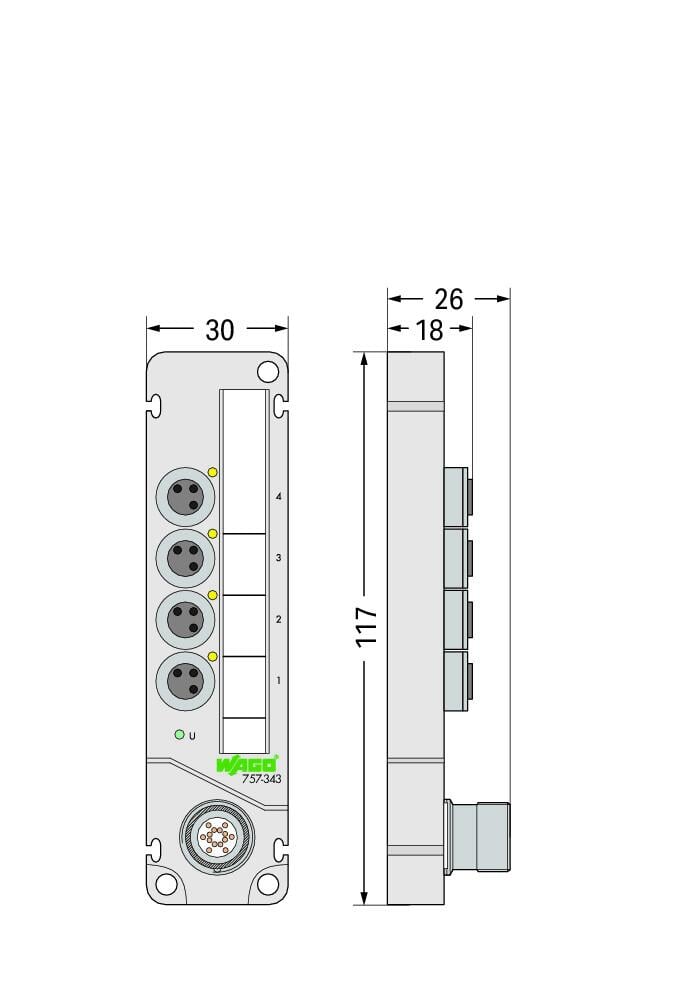

| Width | 30 mm / 1.181 inches |
| Height | 26 mm / 1.024 inches |
| Depth | 117 mm / 4.606 inches |
Mekanik Veri
| Montaj tipi | Vidalı montaj |
| Ağırlık | 110 g |
Material Data
| Gövde malzemesi | PA 66 (UL 94 V0); RAL 7035; Silikon ve halojen içermez |
| Materialeigenschaften der Anschlüsse | Temas: CuSn, nikel bazlı kaplama ve 0,8 μm altın kaplama; Dişli burç: döküm Zn, nikel kaplama; Mühür: Viton; 50 takıp çıkarma |
| Dikme | Konformal kaplamalı tam kapsüllü (UL 94 V0) |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +80 °C |
| Koruma sınıfı | IP67 |
| Koruma sınıfı | EN 60529 (NEMA 6 & 6P) uyarınca, fişleri veya koruyucu kapaklarıyla tamamen kilitli konumda |
| Kirlilik derecesi (5) | VDE 0110 uyarınca 3 |
| Titreşime dayanıklı | IEC 60068-2-6 uyarınca |
| Darbe direnci | IEC 60068-2-27 uyarınca |
Ticari Veri
| Product Group | 23 (I/O passive and accessories) |
| eCl@ss 10.0 | 27-44-01-11 |
| eCl@ss 10.0 | 27-44-01-08 |
| ETIM 8.0 | EC003558 |
| ETIM 8.0 | EC002585 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4044918978675 |
| SAP tesis 01'den gümrük tarifesi no. | 85366990990 |
