Açıklama
Notes
| Note | The maximum range in the field decreases with use in buildings and changes depending on the building materials used and the spatial geometry. Therefore, range specifications within buildings can only represent a typical value that can normally be achieved. More detailed information is available in the manual. |
Technical Data
| Güvenlik şifreleme | Bluetooth ® 2.1: NIST-compliant; FIPS-approved (authentication and authorization, encryption and data security, privacy and discretion); Bluetooth ® 4.0 (Low Energy): AES-CCM encryption |
| Kablosuz teknolojisi | Bluetooth ® 4.0 (Low Energy) Bluetooth ® 2.1 Bluetooth ® 4.0 (Low Energy) WLAN: IEEE 802.11 a, b, g, n, d, r |
| Frekans bandı | ISM band, 2.4 GHz (Bluetooth®, WLAN); ISM band, 5 GHz (WLAN) |
| Güvenlik doğrulama | WLAN: WEP 64/128; WPA; WPA-PSK and WPA2; TKIP and AES/CCMP; LEAP; PEAP including MS-CHAP |
| İletim menzili | 200 m'ye kadar |
| Anten | Internal 2.4 GHz and 5 GHz broadband antenna |
| Configuration options | Web Tabanlı Yönetim |
| Supply voltage | 19 … 36 VDC |
Bağlantı verisi
| Connection technology: communication/fieldbus | 1 x RJ-45 |
| Anschlusstechnik: Versorgung | 1 x Female connector; 3-pole |

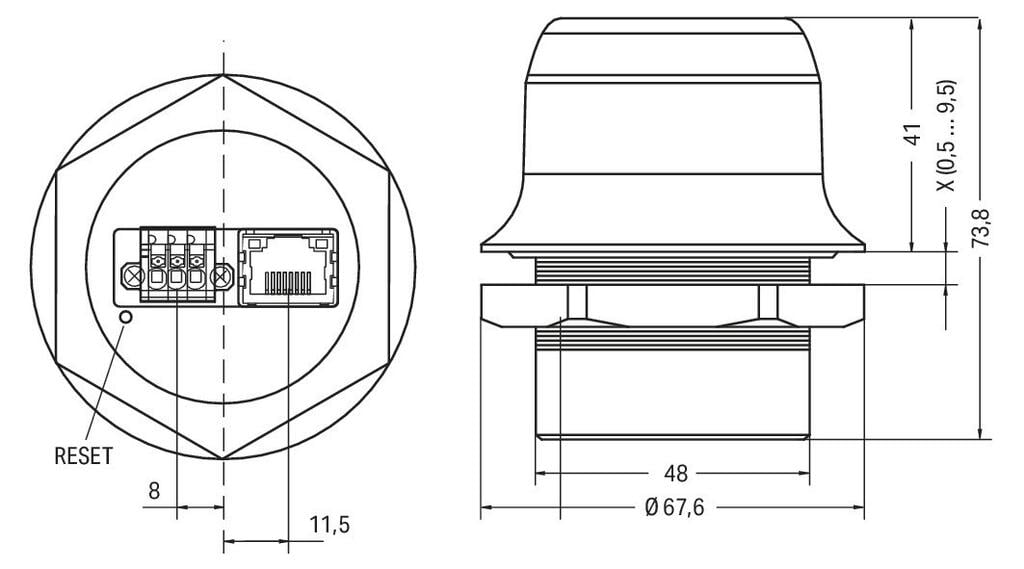

Geometrical Data
| Height | 75 mm |
Mekanik Veri

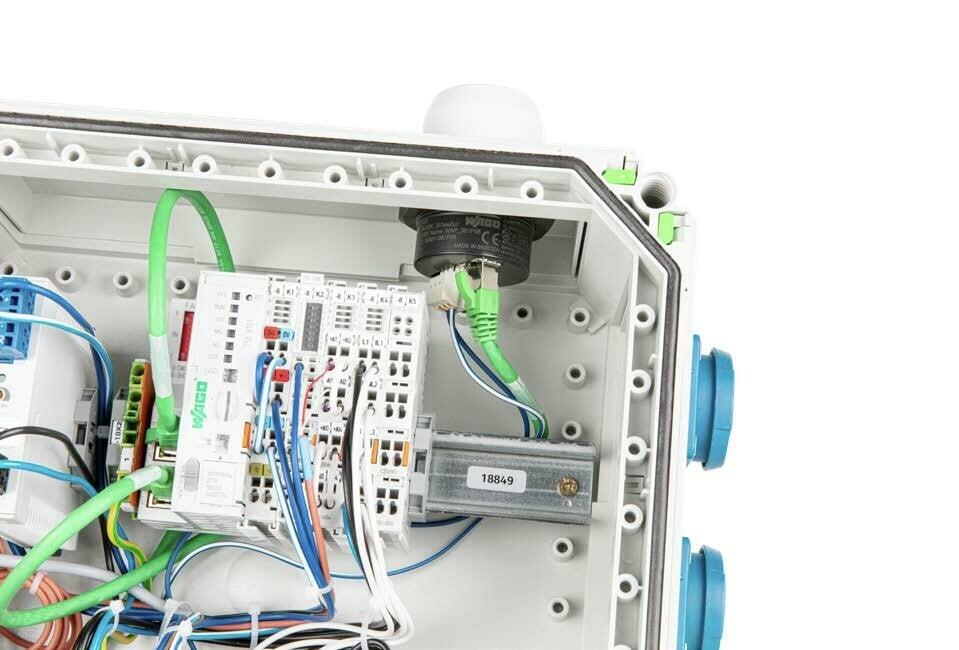

| Montaj tipi | M50 through-panel installation (cut-out = 50.5 mm) |
Material Data
| Ağırlık | 84 g |
| Uygunluk işareti | CE |
Environmental Requirements
| Surrounding air (operating) temperature | -40 … +65 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Koruma sınıfı | IP67 |
| Koruma sınıfı | Top (outside of unit): IP66/IP67/UL NEMA 4X ; Base (inside of unit): IP21 |
Ticari Veri
| ETIM 8.0 | EC000816 |
| ETIM 8.0 | EC000816 |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | BOX |
| SAP tesis 01'den menşei | SE |
| GTIN | 4066966110579 |
| SAP tesis 01'den gümrük tarifesi no. | 85176200000 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
