Açıklama
Notes
| Note | The specified technical data are maximum values. They may be limited by the accessories used. |
Technical Data

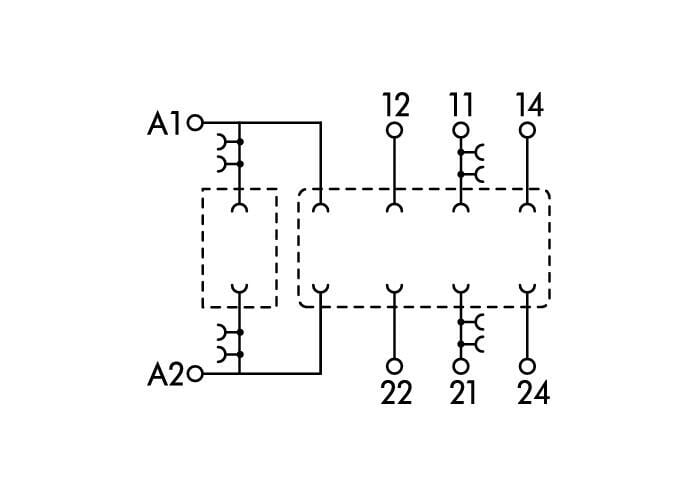

Control circuit
| Nominal input voltage U N | AC/DC 230 V |
| Input voltage range | AC/DC 0 … 250 V |
| Nominal frequency range | 50 … 60 Hz |
Load circuit
| Number of changeover/switchover contacts | 2 |

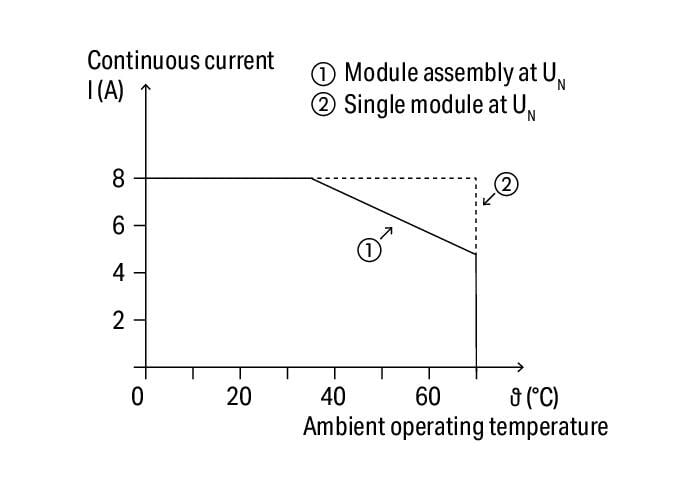

| Limiting continuous current | 8 A |
| Max. switching voltage | AC 300 V |
| Nominal frequency range | ≤60 Hz |
Safety and protection
| Anma gerilimi | 300 V |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 3 |
| Dielectric strength, control/load circuit (AC, 1 min) | 3,6 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (load/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Basic insulation |
| Koruma sınıfı | IP20 |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
Geometrical Data
| Width | 15 mm / 0.591 inches |
| Height | 86 mm / 3.386 inches |
| Depth | 73 mm / 2.874 inches |
Mechanical data
| Montaj | DIN-35 ray |
Material Data
| Yangın yükü | 0,669 MJ |
| Ağırlık | 31,6 g |
| Relative temperature index for plastic (RTI per UL) | 105 °C |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -40 … +70 °C |
| Surrounding air (storage) temperature | -40 … +80 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T ambient + 20 K) |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-03 |
| eCl@ss 10.0 | 27-37-16-03 |
| ETIM 8.0 | EC001456 |
| ETIM 8.0 | EC001456 |
| Pack. unit | 15 (1) Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | CN |
| GTIN | 4045454931049 |
| SAP tesis 01'den gümrük tarifesi no. | 85366990990 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
