Açıklama
Technical Data

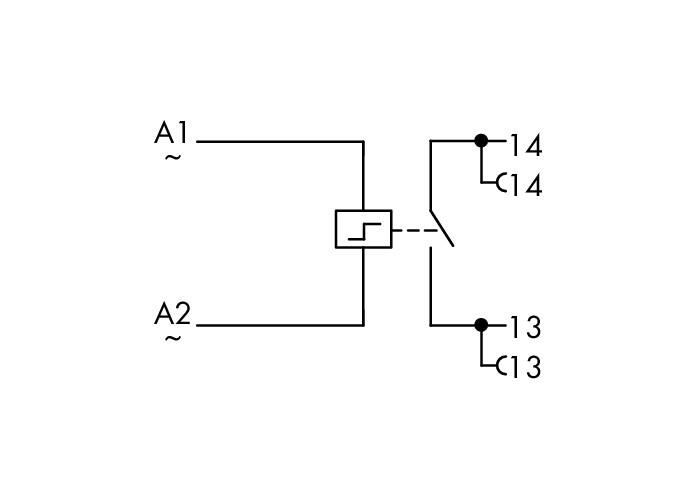

Control circuit
Nominal input voltage U N | AC 230 V |
Input voltage range | -15 … +10 % |
Nominal input current at U N | 10 mA |
Bobin kontrolü | Darbe modu |
Control input pulse length | 40 ms |
Minimum açma süresi | 180 ms |
Load circuit
Number of make contacts/switch on contacts | 1 |
Contact material (relay) | AgSnO 2 |
Limiting continuous current | 16 A |
Max. make current (resistive) | (AC) 50 A / 0,02 s |
Max. switching voltage | AC 250 V |
Max. switching power (resistive) | AC 4000 VA |
Recommended minimum load | 10 V / 10 mA |
Electrical life (N.O.; resistive load; 23 °C) | 50 x 10³ switching operations |
Mekanik ömür | 100 x 10³ switching operations |
Max. switching load with load/without load | 6 min -1 / 240 min -1 |
Sigorta koruması | Devre kesici: 16 A (max.); Açma karakteristiği: B |
Signaling
Durum göstergesi | Kırmızı LED |
Safety and protection
Anma gerilimi | 250 V |
Nominal ani dalgalanma gerilimi | 4 kV |
Kirlilik derecesi | 2 |
Dielectric strength, control/load circuit (AC, 1 min) | 4 kVrms |
Koruma sınıfı | IP20 |
Bağlantı verisi
Bağlantı teknolojisi | CAGE CLAMP® |
Tek damarlı boylar | 0,2 … 2,5 mm² / 24 … 14 AWG |
İnce bükümlü kablolar | 0,2 … 2,5 mm² / 24 … 14 AWG |
Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |

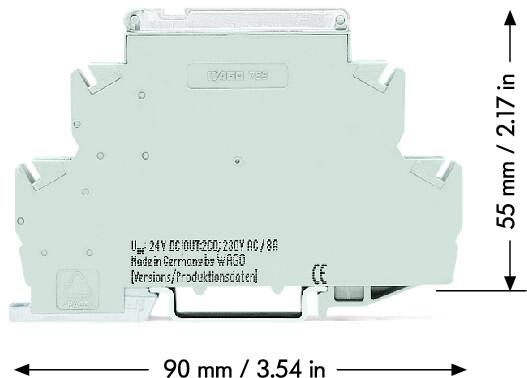

Geometrical Data
Width | 17,5 mm / 0.689 inches |
Height | 90 mm / 3.543 inches |
Depth | 55 mm / 2.165 inches |
Mechanical data
Tasarım | DIN raya monte gövde |
Montaj | DIN-35 ray |
Material Data
Renk | gri |
Yangın yükü | 0,742 MJ |
Ağırlık | 59,4 g |
Environmental Requirements
Surrounding air (operating) temperature at U N | -25 … +40 °C |
Surrounding air (storage) temperature | -40 … +85 °C |
İşlem sıcaklığı | -25 … +50 °C |
Standartlar ve Spesifikasyonlar
Standartlar/spesifikasyonlar | EN 60664-1 |
Ticari Veri
Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-23-09 |
eCl@ss 10.0 | 27-14-23-09 |
ETIM 8.0 | EC001437 |
ETIM 8.0 | EC001437 |
Recupel Type | |
Pack. unit | 10 (1) Adet |
SAP'den ambalaj tipi | box |
SAP tesis 01'den menşei | DE |
GTIN | 4017332790222 |
SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
Environmental Product Compliance
RoHS Compliance Status | Compliant,No Exemption |
