Açıklama
Notes
| Note |
|

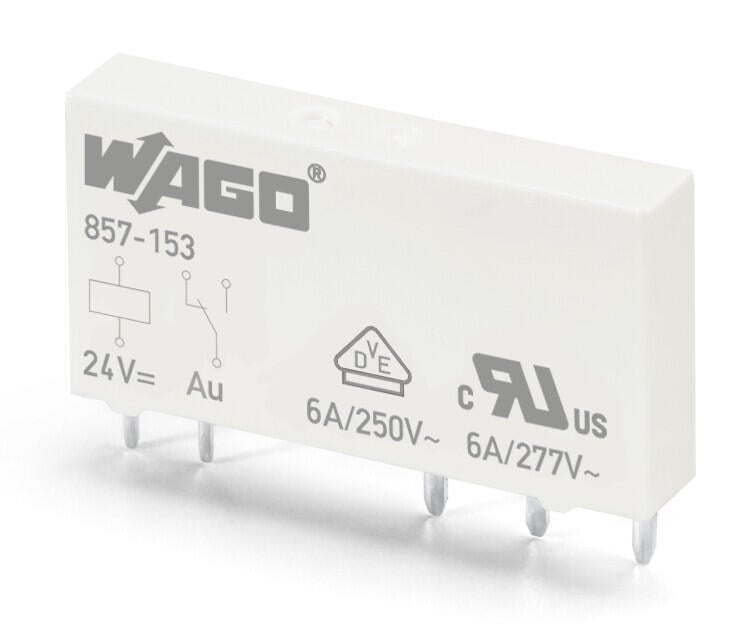

Technical Data
Control circuit
| Nominal input voltage U N | DC 24 V |
| Nominal input current at U N | 0 |
Load circuit
| Number of changeover/switchover contacts | 1 |
| Contact material (relay) | AgNi + Au |
| Limiting continuous current | 6 A |
| Max. make current (resistive) | (AC) 20 A / 0,02 s |
| Max. switching voltage | AC 250 V |
| Max. switching power (resistive) | AC 1500 VA; DC (yük limit eğrisine bakın) |
| Switching capacity | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Recommended minimum load | 1 V / 1 mA / 1 mW |
| Çekme süresi (tip.) | 8 ms |
| Bırakma süresi | 4 ms |
| Sıçrama süresi (tip.) | 3,5 ms |
| Electrical life (N.O.; resistive load; 23 °C) | 50 x 10³ switching operations |
| Mekanik ömür | 5 x 10⁶ switching operations |
| Max. switching load with load/without load | 6 min -1 / 180 min -1 |
Safety and protection
| Dielectric strength, control/load circuit (AC, 1 min) | 4 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Koruma sınıfı | IP20 |
Geometrical Data
| Width | 5 mm / 0.197 inches |
| Height | 15 mm / 0.591 inches |
| Depth | 28 mm / 1.09 inches |
Mechanical data
| Montaj | Tak-çıkar modül |
Material Data
| Yangın yükü | 0,071 MJ |
| Ağırlık | 6,4 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -40 … +85 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Relative humidity | 5 … 85 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61810-1 EN 61373 VDE UR |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 10.0 | 27-37-16-01 |
| ETIM 8.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| Pack. unit | 20 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454551018 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
