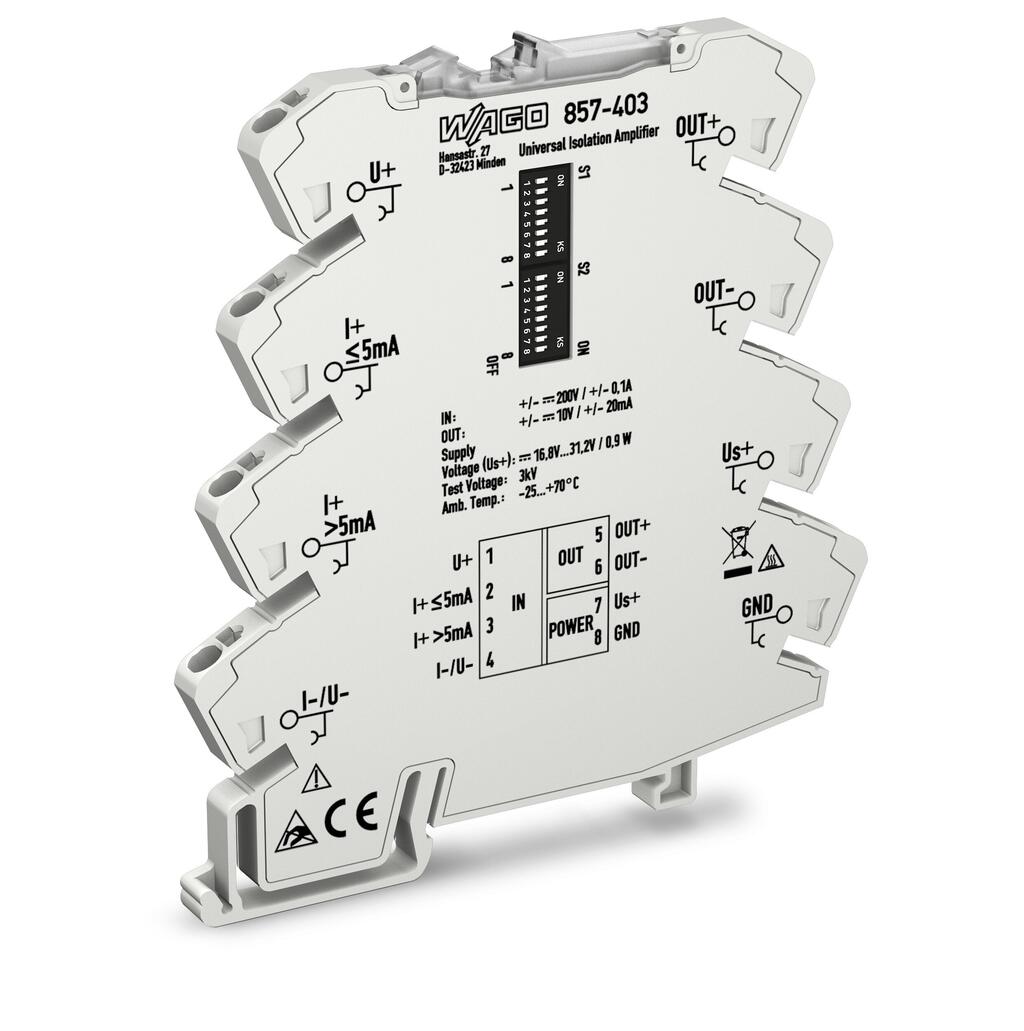

Açıklama
Notes
| Note | Use shielded signal lines! Only use shielded signal lines for analog input and output signals. Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable. |
Technical Data
Configuration

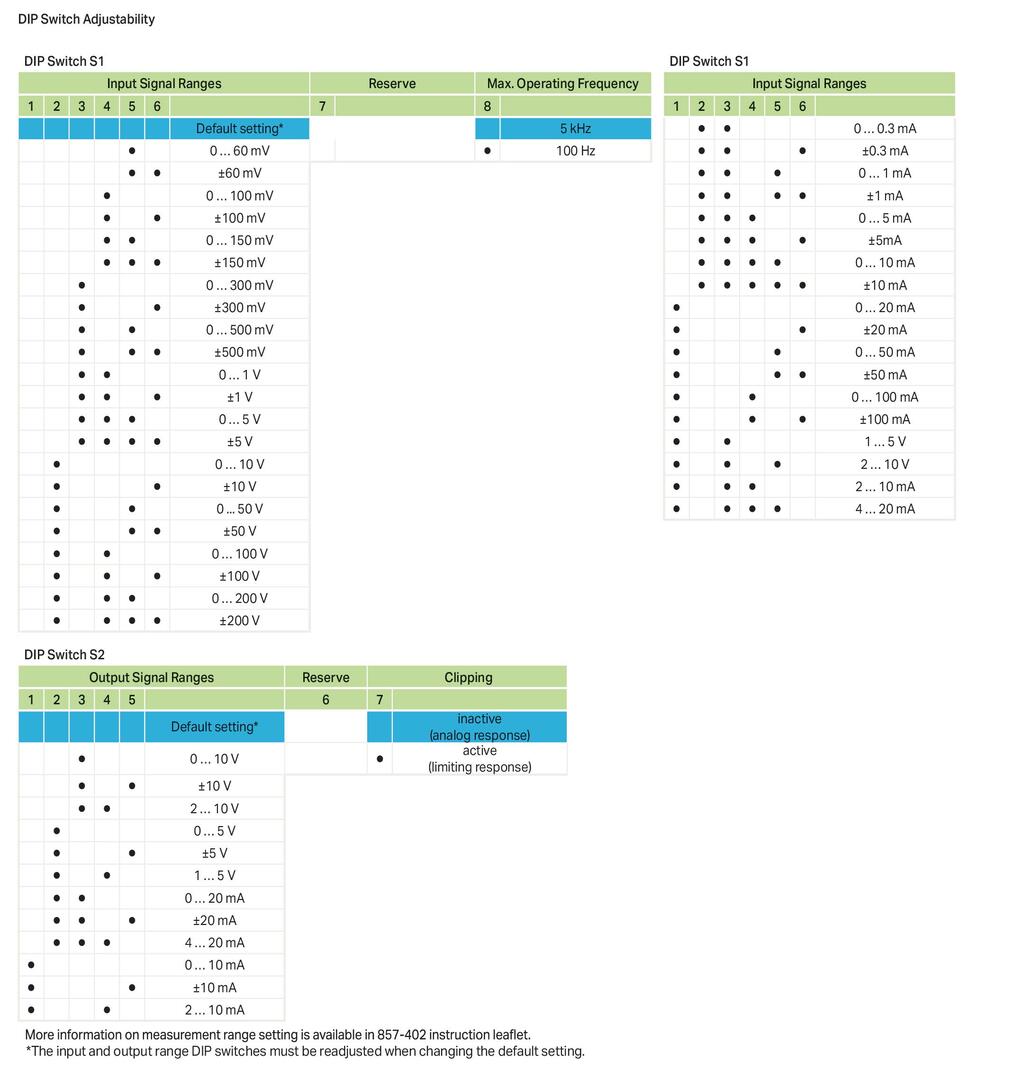

| Configuration options | DIP switch |
Input
| Input signal type | Voltage (DC) Current (DC) Voltage Current |
| Input signal voltage | ±60 mV; 0 … 60 mV; ±100 mV; 0 … 100 mV; ±150 mV; 0 … 150 mV; ±300 mV; 0 … 300 mV; ±500 mV; 0 … 500 mV; ±1 V; 0 … 1 V; ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V; ±100 V; 0 … 100 V; ±200 V; 0 … 200 V |
| Input signal, current | ±0,3 mA; 0 … 0,3 mA; ±1 mA; 0 … 1 mA; ±5 mA; 0 … 5 mA; ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA; ±50 mA; 0 … 50 mA; ±100 mA; 0 … 100 mA |
| Input resistance (intput/current) | 10 Ω (≥ 5 mA); 100 Ω (≤ 5 mA) |
| Input resistance (input/voltage) | 1 MΩ |
Output
| Output signal type | Akım Gerilim Current Voltage |
| Output signal voltage | ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V; 2 … 10 V |
| Output signal current | ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA |
| Load impedance (output/voltage) | ≥ 2 kΩ |
| Load impedance (output/current) | ≤ 600 Ω |
Signal processing
| Max. operating frequency | 100 Hz / 5 kHz (DIP anahtar aracılığıyla ayarlanabilir) |
| Step response typ. | 3,5 ms (100 Hz); 100 µs (5 kHz) |
Measurement error
| İletim hatası | Üst aralık değerinin ≤ %0,08'i |
| Sıcaklık katsayısı | ≤ 0.01 %/K |
Power supply
| Type of power supply | 24 VDC |
| Nominal supply voltage U S | DC 24 V |
| Supply voltage range | ±30 % |
| Current consumption at supply voltage | ≤ 40 mA |
Safety and protection
| Anma gerilimi | 200 V |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 2 |
| Koruma sınıfı | IP20 |
Test voltage
| Test voltage | AC 3 kV; 50 Hz; 1 min |
Insulation coordination
| Insulation type (input/supply and analog output/relay output) | Reinforced insulation (safe isolation) Reinforced insulation Reinforced insulation |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 97,8 mm / 3.85 inches |
Mekanik Veri
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Yangın yükü | 0,191 MJ |
| Ağırlık | 38 g |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +70 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
| EMC immunity to interference | EN 61000-6-2 |
| EMU: | EN 61000-6-4 |
| Standartlar/spesifikasyonlar | EN 61010-1 |
Ticari Veri
| ETIM 8.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | bag |
| SAP tesis 01'den menşei | DE |
| GTIN | 4066966111668 |
| SAP tesis 01'den gümrük tarifesi no. | 85437090300 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
