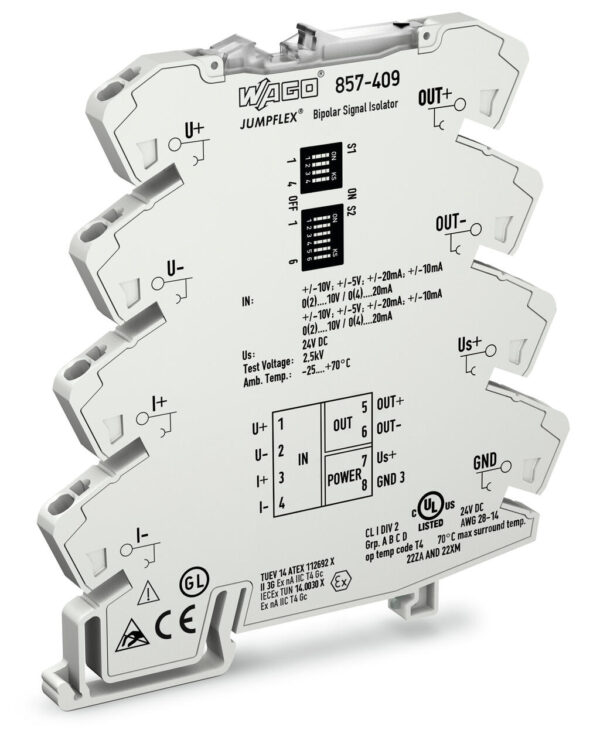

Açıklama
Notes
| Güvenlik bilgisi | Input and output must be safely isolated from any hazardous live parts! |
| Note | Use shielded signal lines! Only use shielded signal lines for analog input and output signals. Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable. Use in the living area is only permitted in conjunction with a power supply that meets the criteria of the living area according to EN 61000-6-3. |
Technical Data
Configuration
| Configuration options | DIP switch Potentiometer |
Input
| Input signal type | Gerilim Akım Voltage Current |
| Input signal voltage | ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V |
| Input signal, current | ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA |
| Input resistance (intput/current) | ≤ 50 Ω |
| Input resistance (input/voltage) | 1 MΩ |
| Maks. giriş sinyali | 50 mA |
| Maks. giriş gerilimi | 32 V |
| Sıfır/açıklık ayarı | üst aralık değerinin ±%5'i |
Output
| Output signal type | Akım Gerilim Current Voltage |
| Output signal voltage | ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V; 2 … 10 V |
| Output signal current | ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA |
| Load impedance (output/voltage) | ≥ 2 kΩ |
| Load impedance (output/current) | ≤ 600 Ω |
| Residual ripple | ≤ 10 mV (rms) |
Signal processing
| Max. operating frequency | 100 Hz / 5 kHz (DIP anahtar aracılığıyla ayarlanabilir) |
| Step response typ. | 3,5 ms (100 Hz); 68 µs (5 kHz) |
Measurement error
| İletim hatası | üst aralık değerinin ≤ %0,1'i |
| İletim hatası (tam skala) | Üst aralık değerinin ≤ %0,2'i |
| Transmission error (under interference) | ≤ 15 % |
| Sıcaklık katsayısı | ≤ %0,01 /K |
Power supply
| Type of power supply | 24 VDC (SELV) |
| Nominal supply voltage U S | DC 24 V |
| Supply voltage range | ±30 % |
| Current consumption (default) | ≤ 20 mA |
| Current consumption (max.) | ≤ 40 mA |
Safety and protection
| Anma gerilimi | 300 V |
| Koruma sınıfı | IP20 |
Test voltage
| Test voltage | AC 3 kV; 50 Hz; 1 min |
Insulation coordination
| Overvoltage category | II |
| Pollution degree | 2 |
| Insulation type (input/analog output/supply) | Functional insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |

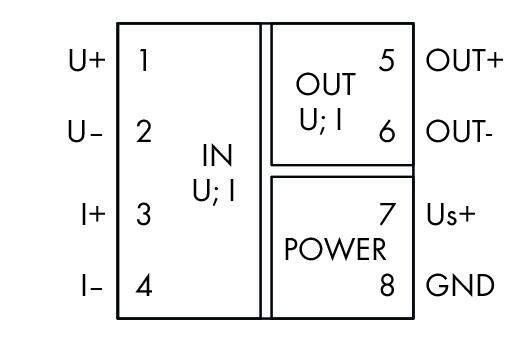

Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
| Type of cable | Shielded cable |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 97,8 mm / 3.85 inches |
Mekanik Veri
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Yangın yükü | 0,598 MJ |
| Ağırlık | 38,4 g |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +70 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T çevreleyen hava + 10 K) |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
| EMC immunity to interference | EN 61000-6-2 |
| EMU: | EN 61000-6-3 |
| Standartlar/spesifikasyonlar | DNV EN 61373 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 10.0 | 27-21-01-20 |
| ETIM 8.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | bag |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454828493 |
| SAP tesis 01'den gümrük tarifesi no. | 85437090300 |
