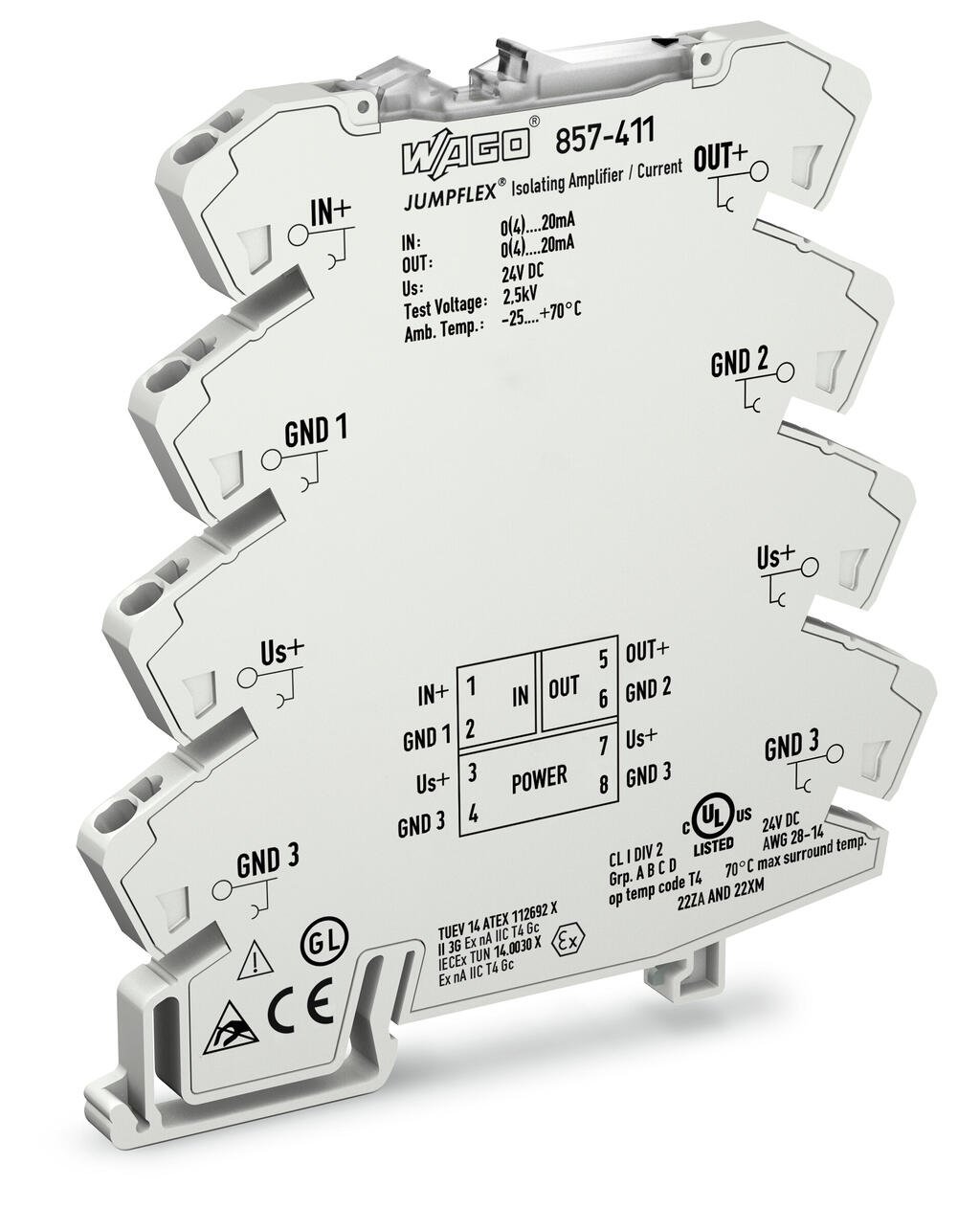

Açıklama
Notes
| Note | The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned. Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.) |
Technical Data
Configuration
| Configuration options | önceden yapılandırılmış |
Input
| Input signal type | Akım Current |
| Input signal, current | 0 … 20 mA; 4 … 20 mA |
| Input resistance (intput/current) | ≤ 50 Ω |
| Maks. giriş sinyali | 50 mA |
Output
| Output signal type | Akım Current |
| Output signal current | 0 … 20 mA; 4 … 20 mA |
| Load impedance (output/current) | ≤ 600 Ω |
Signal processing
| Max. operating frequency | 100 Hz |
| Step response typ. | 3,5 ms |
Measurement error
| İletim hatası | üst aralık değerinin ≤ %0,1'i |
| Sıcaklık katsayısı | ≤ %0,01 /K |
Power supply
| Type of power supply | 24 VDC |
| Nominal supply voltage U S | DC 24 V |
| Supply voltage range | ±30 % |
| Current consumption at supply voltage | ≤ 25 mA |
Safety and protection
| Koruma sınıfı | IP20 |
Test voltage
| Test voltage | AC 2,5 kV; 50 Hz; 1 min |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 97,8 mm / 3.85 inches |
Mekanik Veri
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Yangın yükü | 0,598 MJ |
| Ağırlık | 36,1 g |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +70 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
| EMC immunity to interference | EN 61000-6-2 |
| EMU: | EN 61000-6-4 |
| Standartlar/spesifikasyonlar | DNV |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 10.0 | 27-21-01-20 |
| ETIM 8.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | bag |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454471224 |
| SAP tesis 01'den gümrük tarifesi no. | 85437090300 |
Environmental Product Compliance
| CAS-No. | 1303-86-2 1317-36-8 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide Lead Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) 7(a) 7(c)-I 7(c)-II |
| SCIP notification number (Austria) | 81f136bd-fa90-4a2b-a3b5-efd7cb474ad0 |
| SCIP notification number (Belgium) | 0ce3e59c-50c1-45a8-b2fc-c5cdd82423ef |
| SCIP notification number (Bulgaria) | 6089a05f-11f4-4823-8720-5fa65b68eaeb |
| SCIP notification number (Czech Republic) | ae6cf7d9-7d6e-4613-8158-6cd8666688a1 |
| SCIP notification number (Denmark) | 3acd3d5d-59f9-4b8e-a160-3d991437c270 |
| SCIP notification number (Finland) | 573e18bb-874b-4cb9-b9bf-1bdf9e7973ca |
| SCIP notification number (France) | cfc6ec9d-29e3-43ea-9273-271c1ebc914e |
| SCIP notification number (Germany) | d027a0a8-794c-4140-8453-02e9ad261de5 |
| SCIP notification number (Hungary) | 92e830ea-c0bb-4a77-aa25-e954a0d856e4 |
| SCIP notification number (Italy) | 108a7646-427c-4209-b1b9-2304b0f7e827 |
| SCIP notification number (Netherlands) | ac78f871-0410-46ff-8c1d-91a7a96d22dc |
| SCIP notification number (Poland) | 0f962e0d-3b57-4e8c-bb28-410088e62a54 |
| SCIP notification number (Romania) | 7ec0ee98-e087-4847-ab92-878ea5970dad |
| SCIP notification number (Sweden) | 52ca1dab-2952-4a57-8159-7db73dd5f651 |
