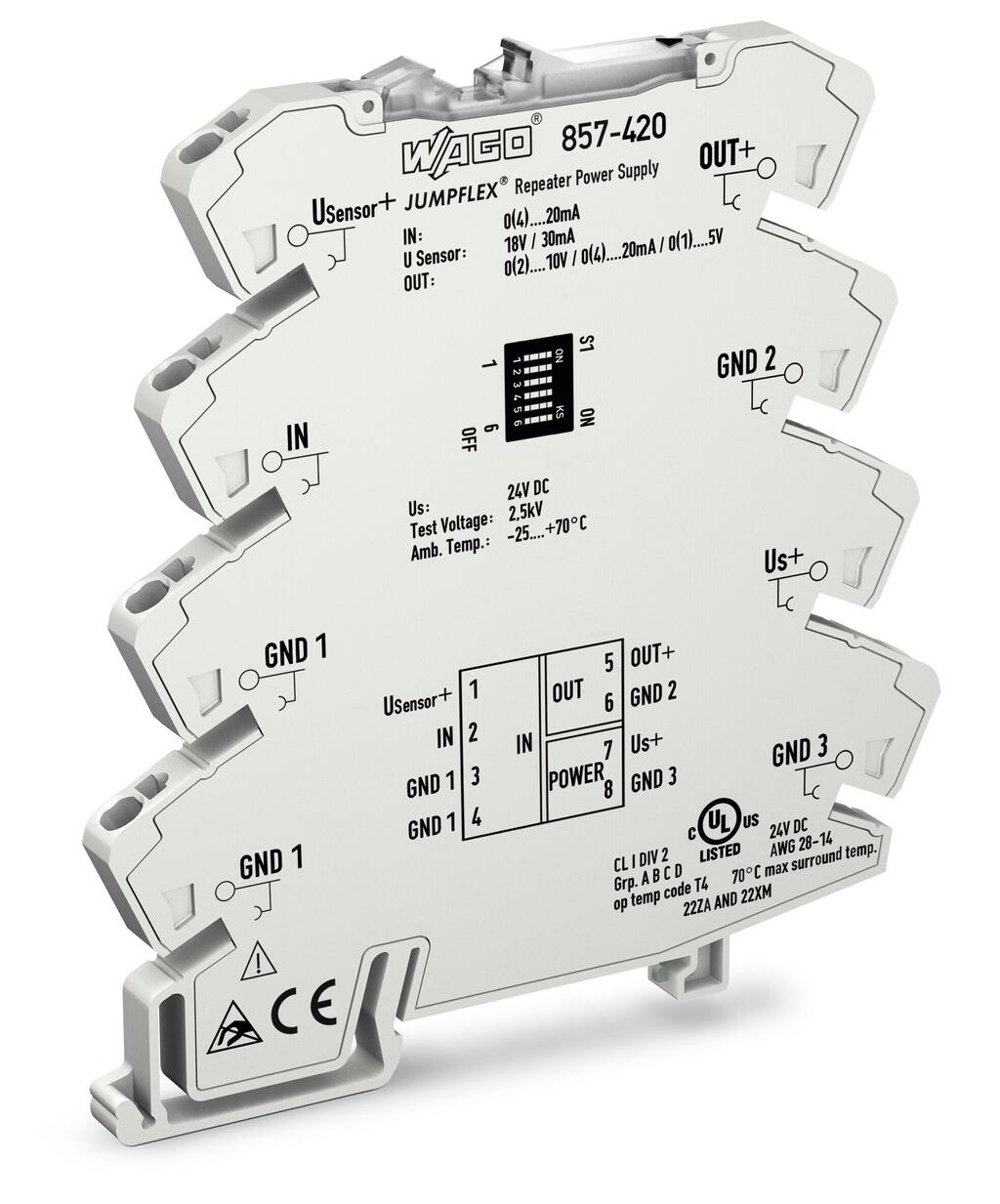

Açıklama
Technical Data
Configuration

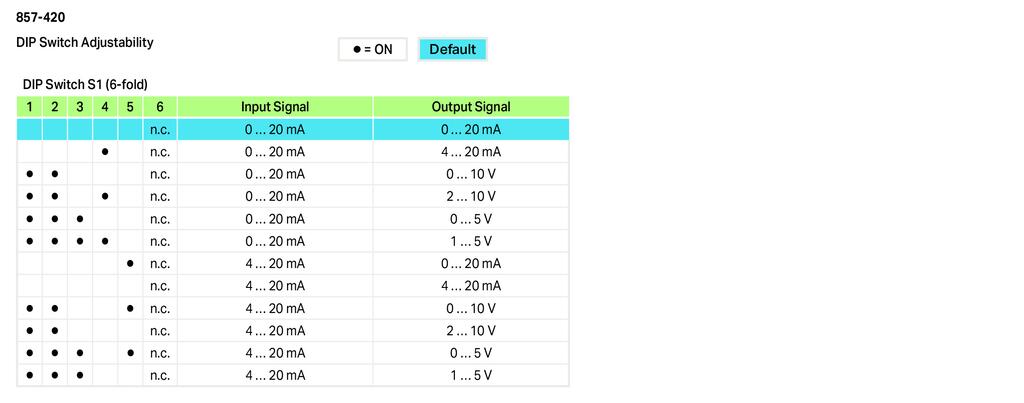

| Configuration options | DIP switch |

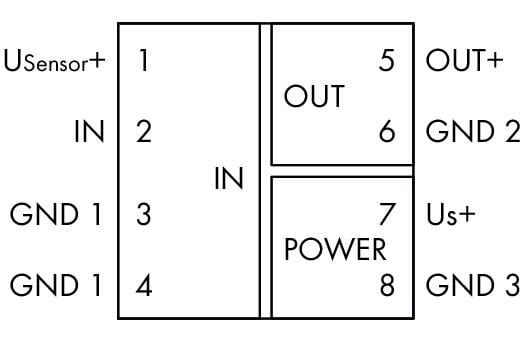

Input
| Input signal type | Akım Current |
| Input signal, current | 0 … 20 mA; 4 … 20 mA (kalibreli değişim) 0 … 20 mA; 4 … 20 mA (calibrated configurable signals) |
| Input resistance (intput/current) | ≤ 50 Ω |
| Sensör beslemesi | U v = 18 V; 30 mA |
| Maks. giriş sinyali | 50 mA |
Output
| Output signal type | Akım Gerilim Current Voltage |
| Output signal voltage | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (kalibreli değişim) 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (calibrated switchable) |
| Output signal current | 0 … 20 mA; 4 … 20 mA (kalibreli değişim) 0 … 20 mA; 4 … 20 mA (calibrated switchable) |
| Load impedance (output/voltage) | ≥ 2 kΩ |
| Load impedance (output/current) | ≤ 600 Ω |
| Offset | ≤ 20 µA |
| Residual ripple | ≤ 10 mV (rms) |
Signal processing
| Max. operating frequency | 100 Hz |
| Step response typ. | 3,5 ms |
Measurement error
| İletim hatası | üst aralık değerinin ≤ %0,1'i |
| Sıcaklık katsayısı | ≤ %0,01 /K |
Power supply
| Type of power supply | 24 VDC |
| Nominal supply voltage U S | DC 24 V |
| Supply voltage range | ±30 % |
| Current consumption at supply voltage | ≤ 45 mA |
Safety and protection
| Koruma sınıfı | IP20 |
Test voltage
| Test voltage | AC 2,5 kV; 50 Hz; 1 min |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 97,8 mm / 3.85 inches |
Mekanik Veri
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Yangın yükü | 0,598 MJ |
| Ağırlık | 37 g |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +70 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
| Standartlar/spesifikasyonlar | DNV |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 10.0 | 27-21-01-20 |
| ETIM 8.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | bag |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454471330 |
| SAP tesis 01'den gümrük tarifesi no. | 85437090300 |
