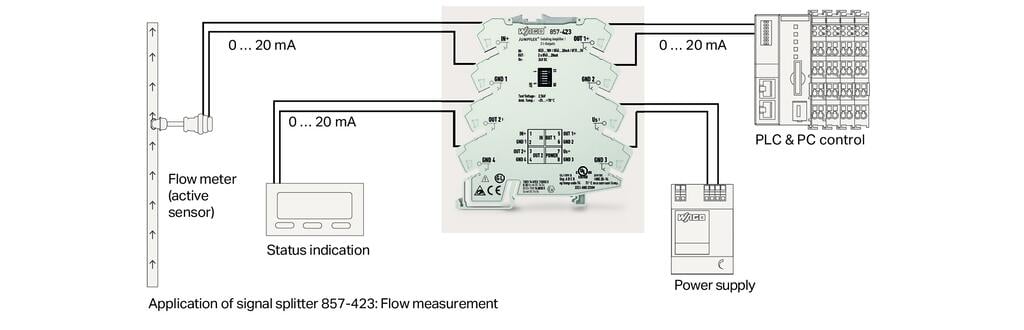

Açıklama
Notes
| Note | Use shielded signal lines! Only use shielded signal lines for analog input and output signals. Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable. |

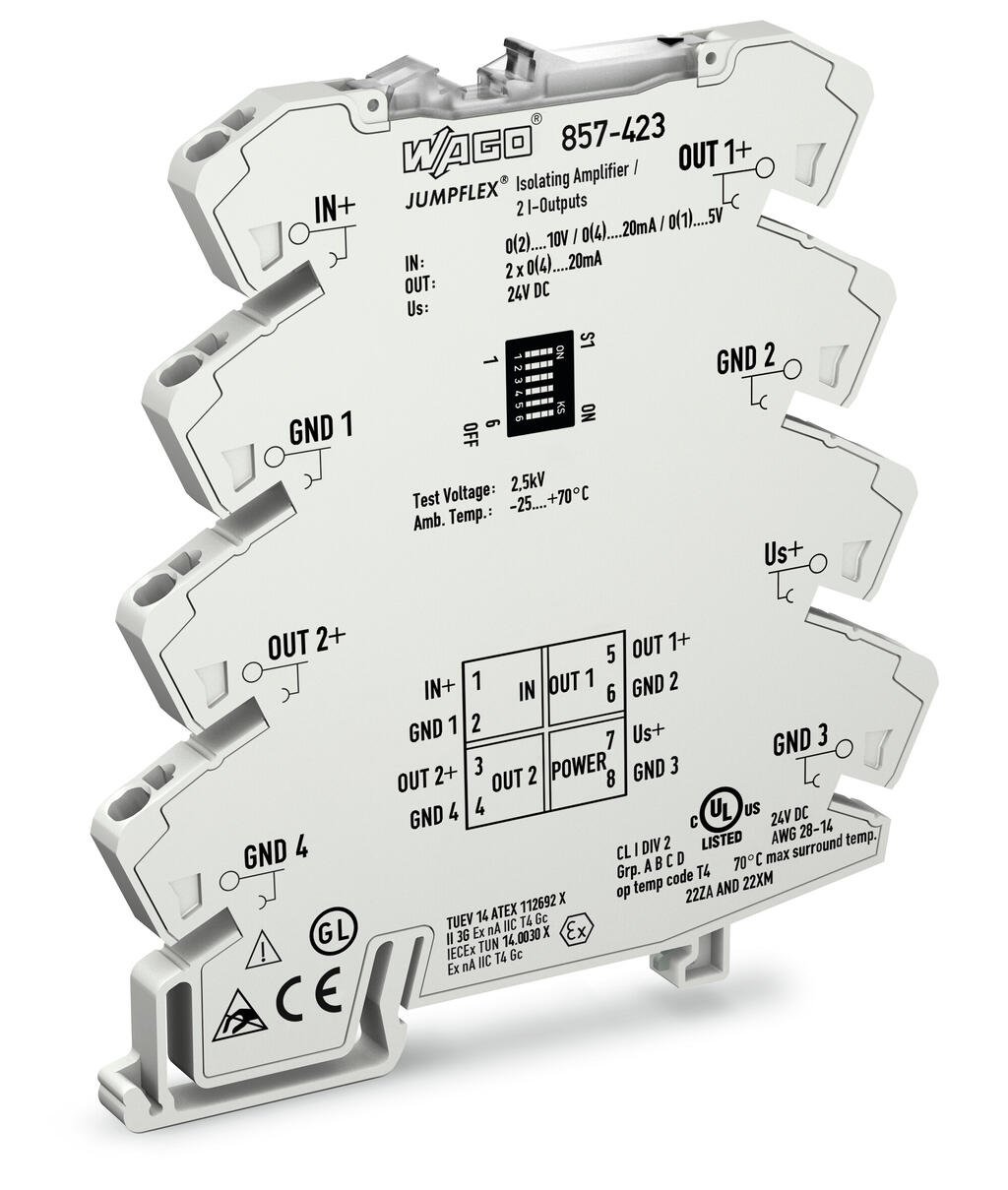

Technical Data
Configuration

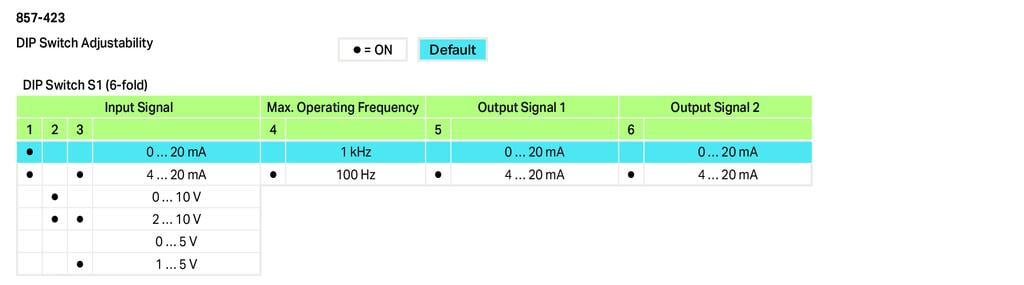

| Configuration options | DIP switch |
Input
| Input signal type | Gerilim Akım Voltage Current |
| Input signal voltage | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (kalibreli değişim) 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (calibrated configurable signals) |
| Input signal, current | 0 … 20 mA; 4 … 20 mA (kalibreli değişim) 0 … 20 mA; 4 … 20 mA (calibrated configurable signals) |
| Input resistance (intput/current) | ≤ 50 Ω |
| Input resistance (input/voltage) | ≥ 100 kΩ |
Output
| Output signal type | Akım Current |
| Output signal current | 0 … 20 mA; 4 … 20 mA (kalibreli değişim) 0 … 20 mA; 4 … 20 mA (calibrated switchable) |
| Load impedance (output/current) | ≤ 300 Ωkanal başına |
Signal processing
| Max. operating frequency | 100 Hz / 1 kHz (DIP anahtar aracılığıyla ayarlanabilir) |
| Step response typ. | 3,5 ms (100 Hz); 300 µs (1 kHz) |
Measurement error
| İletim hatası | üst aralık değerinin ≤ %0,1'i |
| İletim hatası (tam skala) | Üst aralık değerinin ≤ %0,2'i |
| Transmission error (under interference) | ≤ 10 % |
| Sıcaklık katsayısı | ≤ %0,01 /K |
Power supply
| Type of power supply | 24 VDC |
| Nominal supply voltage U S | DC 24 V |
| Supply voltage range | ±30 % |
| Current consumption at supply voltage | ≤ 35 mA |
Safety and protection
| Anma gerilimi | 300 V |
| Koruma sınıfı | IP20 |
Test voltage
| Test voltage | AC 2,5 kV; 50 Hz; 1 min |
Insulation coordination (UL)
| Overvoltage category | II |
| Pollution degree | 2 |
| Insulation type (input/analog output1/analog output 2/supply) | Functional insulation |
Insulation coordination
| Overvoltage category | II |
| Pollution degree | 2 |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
| Type of cable | Shielded cable |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 97,8 mm / 3.85 inches |
Mekanik Veri
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Yangın yükü | 0,418 MJ |
| Ağırlık | 40,6 g |
Environmental Requirements
| Surrounding air (operating) temperature | -25 … +70 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
| EMC immunity to interference | EN 61000-6-2 |
| EMU: | EN 61000-6-4 |
| Standartlar/spesifikasyonlar | DNV |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 10.0 | 27-21-01-20 |
| ETIM 8.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | bag |
| SAP tesis 01'den menşei | DE |
| GTIN | 4045454471316 |
| SAP tesis 01'den gümrük tarifesi no. | 85437090300 |
Environmental Product Compliance
| CAS-No. | 1303-86-2 1317-36-8 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide Lead Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) 7(a) 7(c)-I 7(c)-II |
