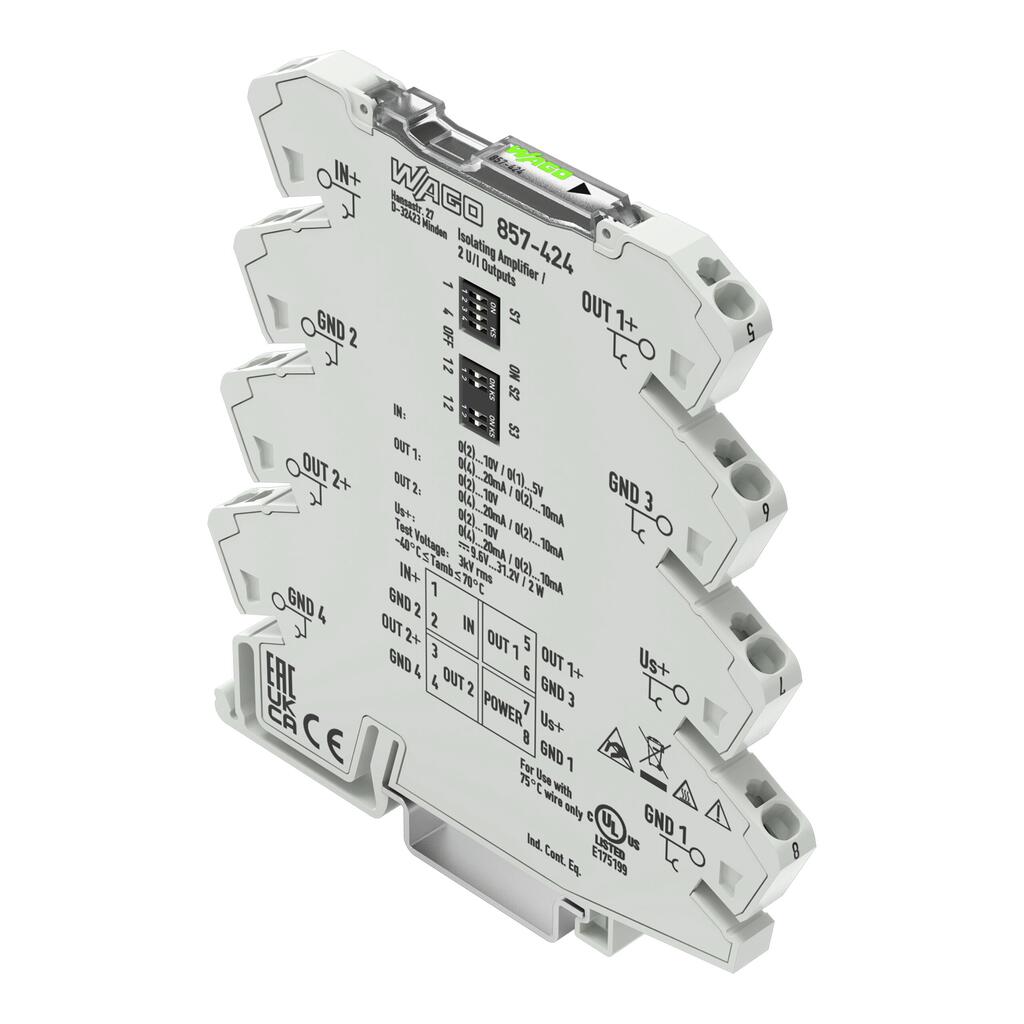

Açıklama
Notes
| Note | Use shielded signal lines! Only use shielded signal lines for analog input and output signals. Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable. |
Technical Data
Configuration
| Configuration options | DIP switch |
Input
| Input signal type | Gerilim Akım Voltage Current |
| Input signal voltage | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V |
| Input signal, current | 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA |
| Input resistance (intput/current) | ≤ 50 Ω |
| Input resistance (input/voltage) | ≥ 100 kΩ |
| Maks. giriş sinyali | 50 mA |
| Maks. giriş gerilimi | 30 V |
Output
| Output signal type | Gerilim Akım Voltage Current |
| Output signal voltage | 0 … 10 V; 2 … 10 V (kalibreli değişim) 0 … 10 V; 2 … 10 V (calibrated switchable) |
| Output signal current | 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (kalibreli değişim) 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (calibrated switchable) |
| Load impedance (output/voltage) | ≥ 2 kΩ (kanal başına) |
| Load impedance (output/current) | ≤ 600 Ωkanal başına |
Signal processing
| Max. operating frequency | 100 Hz / 1 kHz (DIP anahtar aracılığıyla ayarlanabilir) |
| Step response typ. | 5,2 ms (100 Hz); 650 µs (1 kHz) |
Measurement error
| İletim hatası | üst aralık değerinin ≤ %0,1'i |
| Sıcaklık katsayısı | ≤ 0.01 %/K |
Power supply
| Type of power supply | 24 VDC (SELV) |
| Nominal supply voltage U S | DC 24 V |
| Supply voltage range | -60 … +30 % |
| Current consumption (default) | < 27 mA |
| Current consumption (max.) | < 250 mA (2 x I out 20 mA; Load impedance: 600 Ω; U s+ : 9.6 V) |
Safety and protection
| Anma gerilimi | 300 V |
| Measurement category per EN/UL 61010-2-030 | CAT II (input) |
| Koruma sınıfı | IP20 |
Test voltage
| Test voltage (input/analog output) | 3 kVAC; 50 … 60 Hz; 1 min |
Insulation coordination (UL)
| Overvoltage category | II |
| Pollution degree | 2 |
| Insulation type (input/analog output1/analog output 2/supply) | Reinforced insulation (safe isolation) |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
| Type of cable | Shielded cable |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 97,8 mm / 3.85 inches |
Mekanik Veri
| Montaj | DIN-35 ray DIN 35 ray |
Material Data
| Yangın yükü | 0,013 MJ |
| Ağırlık | 42 g |
Environmental Requirements
| Surrounding air (operating) temperature | -40 … +70 °C (Individual arrangement; −40 … +50 °C (block arrangement)) |
| Surrounding air (storage) temperature | -40 … +85 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T çevreleyen hava + 10 K) |
| Temperature range of connection cable (UL) | 75 °C |
| Relative humidity | 5 … 95 % (yoğuşmasız) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Uygunluk işareti | CE |
| EMC immunity to interference | EN 61000-6-2; EN 61326-1; EN 50121-3-2 |
| EMU: | EN 61000-6-3; EN 61326-1; EN 50121-3-2 |
| Standartlar/spesifikasyonlar | EN 50121-3-2 EN 61010-1 |
Ticari Veri
| eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 10.0 | 27-21-01-20 |
| ETIM 8.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | bag |
| SAP tesis 01'den menşei | DE |
| GTIN | 4055143595476 |
| SAP tesis 01'den gümrük tarifesi no. | 85437090300 |
