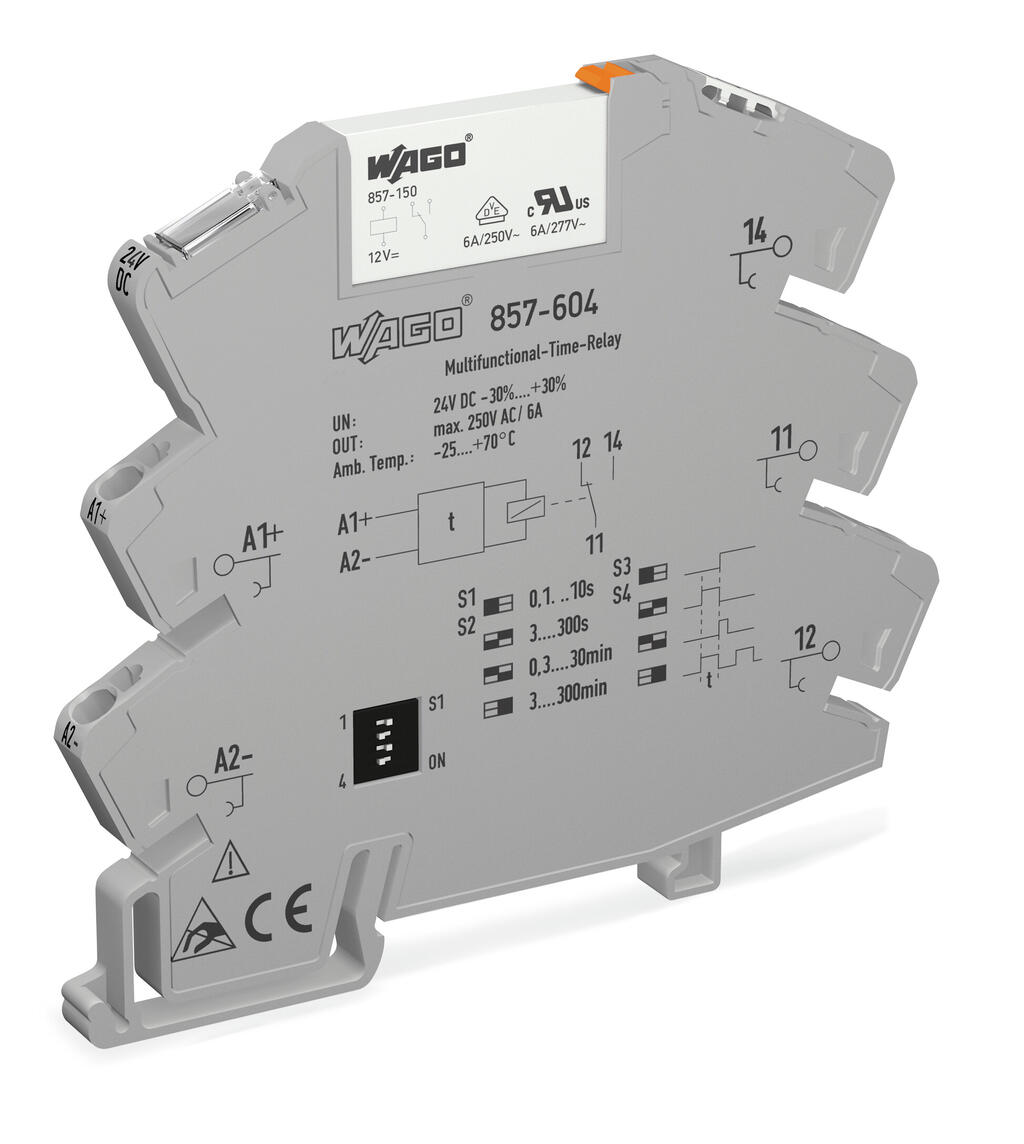

Açıklama
Technical Data

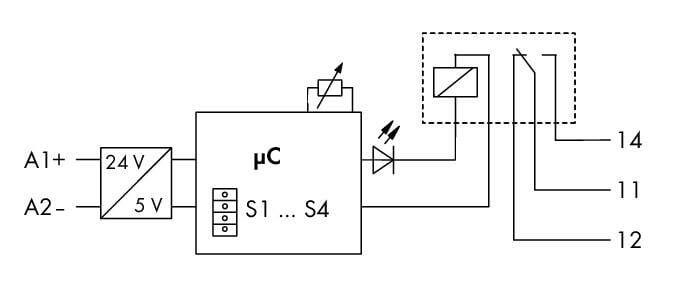

Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | ±30 % |
| Nominal input current at U N | 18 mA |
| Time range | Ayarlanabilir: 0,1 … 10 s; 3 … 300 s; 0,3 … 30 min; 3 … 300 min |
| Sıfırlama süresi | 50 ms |
| Repeat accuracy | 1 % |
| Control input pulse length | 10 ms |
| Functions | Çekmede gecikme Single-shot yükselen kenar Çekmede gecikme ve single-shot yükselen kenar (1 sn sabit) Yanıp sönen |
Load circuit
| Number of changeover/switchover contacts | 1 |
| Contact material (relay) | AgSnO 2 |
| Limiting continuous current | 6 A |
| Max. make current (resistive) | (AC) 20 A / 0,02 s |
| Max. switching voltage | AC 250 V |

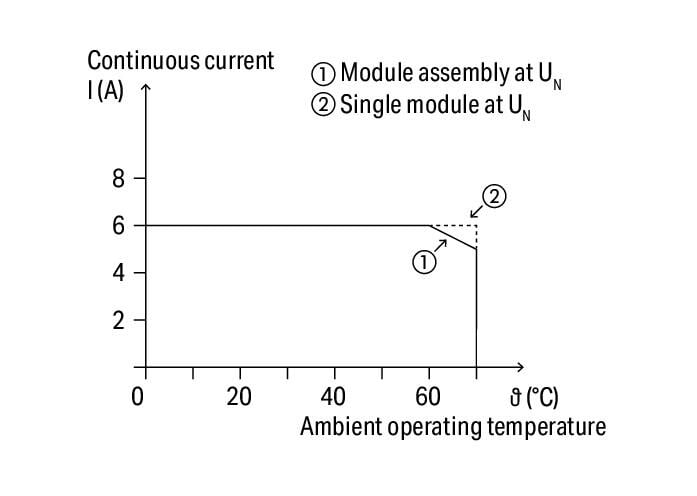

| Max. switching power (resistive) | AC 1500 VA; DC (yük limit eğrisine bakın) |
| Switching capacity | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Recommended minimum load | 10 V / 10 mA; 24 V / 1 mA |
| Çekme süresi (tip.) | 15 ms |
| Bırakma süresi | 25 ms |
| Sıçrama süresi (tip.) | 3,5 ms |
| Electrical life (N.O.; resistive load; 23 °C) | 50 x 10³ switching operations |
| Mekanik ömür | 5 x 10⁶ switching operations |
Signaling
| Durum göstergesi | Sarı LED |
Safety and protection
| Anma gerilimi | 250 V |
| Nominal ani dalgalanma gerilimi | 4 kV |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 4 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Koruma sınıfı | IP20 |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 81 mm / 3.189 inches |
Mechanical data
| Montaj | DIN-35 ray |
Material Data
| Renk | gri |
| Malzeme | Poliamid 66 (PA 66) |
| UL 94'e göre tutuşabilirlik değeri | V0 |
| Yangın yükü | 0,563 MJ |
| Ağırlık | 24,9 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -25 … +70 °C |
| Surrounding air (storage) temperature | -40 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61812-1 EN 61373 EN 50121-3-2 UL 508 |
Elementary relay
| WAGO elementary relay | 857-150 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-05 |
| eCl@ss 10.0 | 27-37-16-05 |
| ETIM 8.0 | EC001439 |
| ETIM 8.0 | EC001439 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | bag |
| SAP tesis 01'den menşei | DE |
| GTIN | 4050821565673 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
