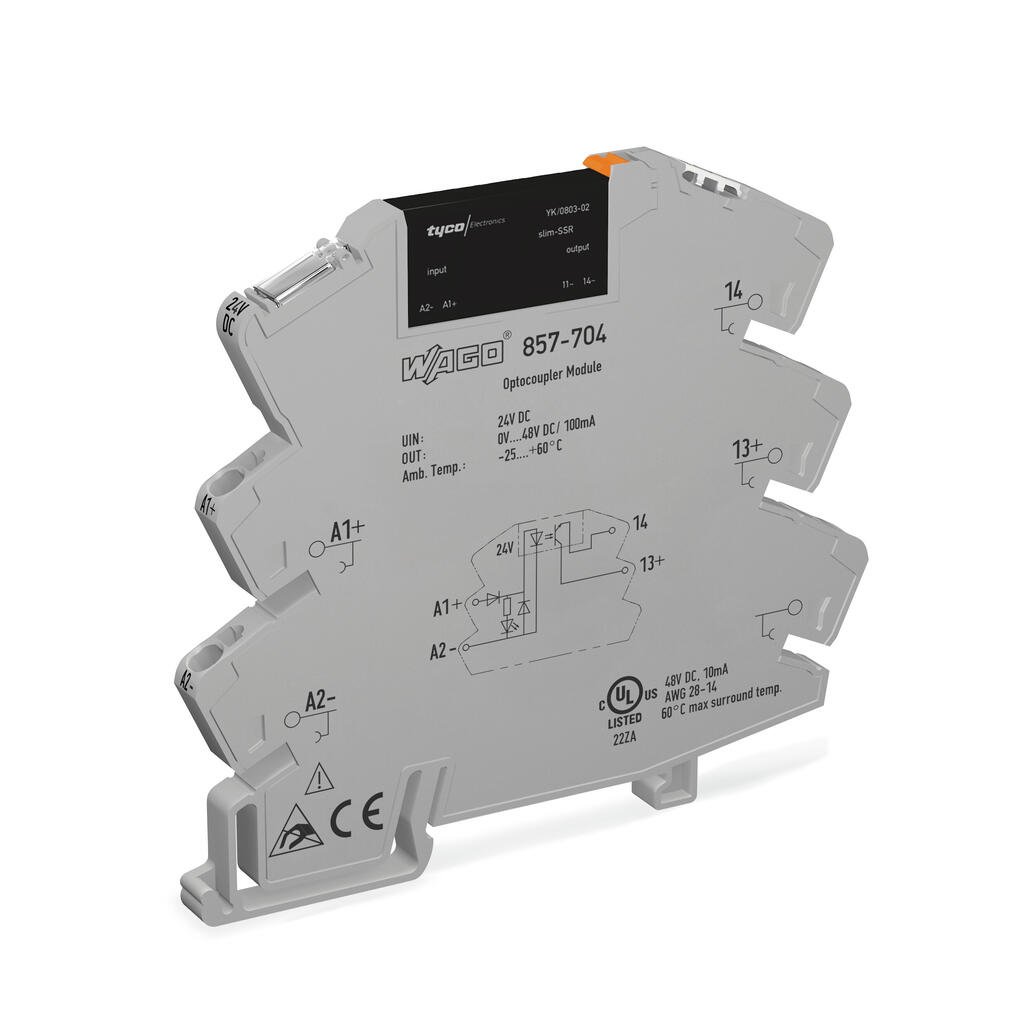

Açıklama
Notes
| Note | Optokuplörler ve katı hal röleleri, düşük voltajlı güç kaynağı ağları tarafından beslenmeyen sinyal işleme ağlarında kullanılmak üzere tasarlanmıştır. |
Technical Data

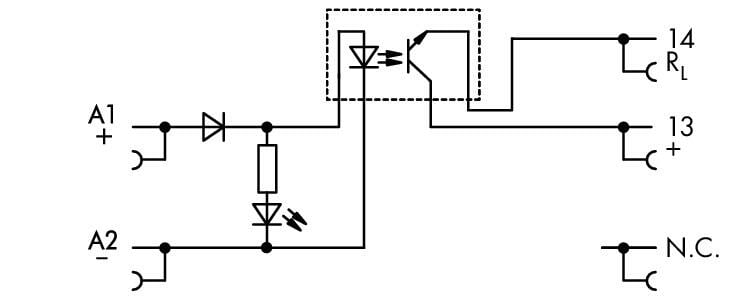

Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | DC 0 … 10 V |
| Input voltage range | DC 16,8 … 30 V |
| Nominal input current at U N | 9 mA |
Load circuit
| Circuit type | 2 telli bağlantı 2 telli bağlantı |
| Limiting continuous current | 0,1 A |
| Nominal output voltage | DC 24 V |
| Output voltage range | DC 0 … 48 V |
| Max. voltage drop at output | ≤ DC 1 V |
| Voltage drop | ≤ 1 VDC |
| Leakage current at nominal voltage | ≤ 1 µA |
| Min. switching current | 50 µA |
| Turn-on time | ≤ 100 µs |
| Drop-out time | ≤ 600 µs |
| Switching frequency | ≤ 1 kHz |
Signaling
| Durum göstergesi | Sarı LED Sarı LED |
Safety and protection
| Anma gerilimi | 300 V |
| Aşırı gerilim kategorisi | III |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 3,51 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Basic insulation |
| Koruma sınıfı | IP20 |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| İnce bükümlü kablolar | 0,34 … 2,5 mm² / 22 … 14 AWG |
| İnce bükümlü kablolar, yalıtımlı yüksüklü | 0,34 … 1,5 mm² / 22 … 16 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth | 81 mm / 3.189 inches |
Mechanical data
| Montaj | DIN-35 ray DIN-35 ray |
| Montaj pozisyonu | yatay (ayakta / yatarken); dikey |
Material Data
| Renk | gri |
| Yangın yükü | 0,69 MJ |
| Ağırlık | 30,7 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -20 … +60 °C |
| Surrounding air (storage) temperature | -40 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T ambient + 30 K) |
| Relative humidity | 5 … 85 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61000-6-2 EN 61000-6-3 EN 61373 EN 61010-2-201 UL 508 EN 61000-6-2 EN 61000-6-3 EN 61373 EN 61010-2-201 UL 508 |
Elementary relay
| WAGO elementary relay | 858-164 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 10.0 | 27-26-15-03 |
| ETIM 8.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| Recupel Type | |
| Pack. unit | 25 (1) Adet |
| SAP'den ambalaj tipi | Box |
| SAP tesis 01'den menşei | CN |
| GTIN | 4045454835491 |
| SAP tesis 01'den gümrük tarifesi no. | 85365005000 |
