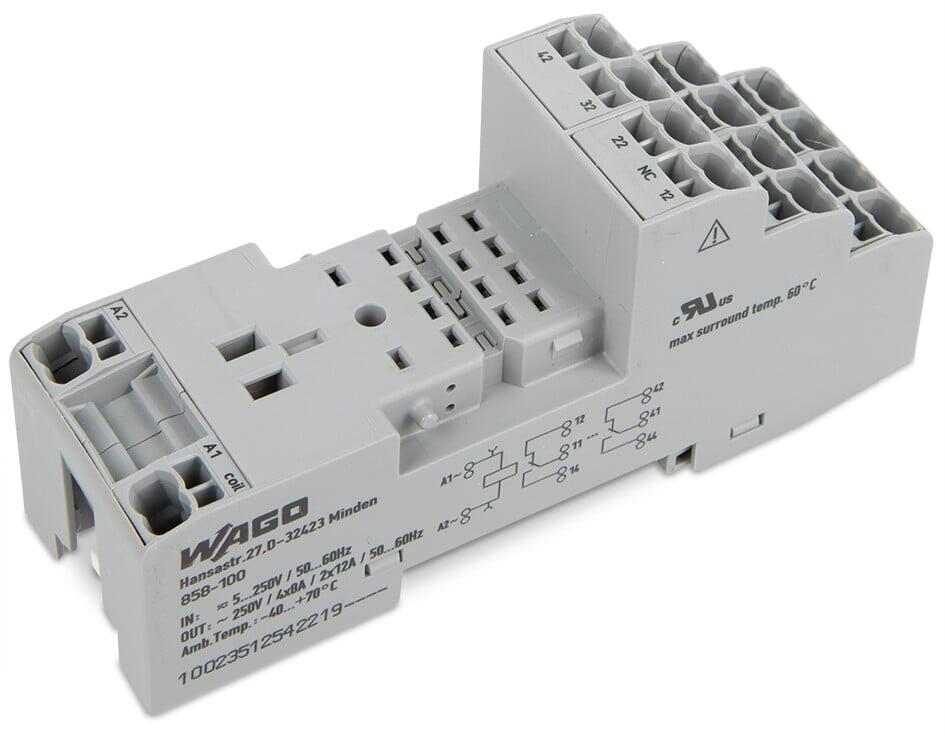

Açıklama
Notes
| Note | The specified technical data are maximum values. They may be limited by the accessories used. |
Technical Data
Control circuit
| Nominal input voltage U N | AC/DC 5 … 250 V |
| Input voltage range | AC/DC 0 … 250 V |
| Nominal frequency range | 50 … 60 Hz |

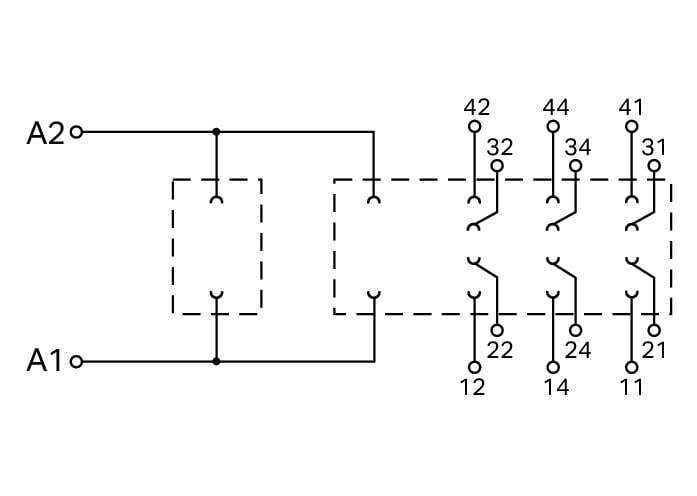

Load circuit
| Number of changeover/switchover contacts | 4 |
| Limiting continuous current | 8 A (4 x); 12 A (2 x) |
| Max. switching voltage | AC 250 V; DC 250 V |
| Nominal frequency range | ≤60 Hz |
Safety and protection
| Anma gerilimi | 300 V |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 3 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (load/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Basic insulation |
| Koruma sınıfı | IP20 |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,34 … 1,5 mm² / 22 … 16 AWG |
| İnce bükümlü kablolar | 0,34 … 1,5 mm² / 22 … 16 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
| Not (iletken kesiti) | 2 x 0.34 … 2 x 1.5 mm² / 1 x 2.5 mm² / 2 x 22 … 2 x 16 AWG |
Geometrical Data

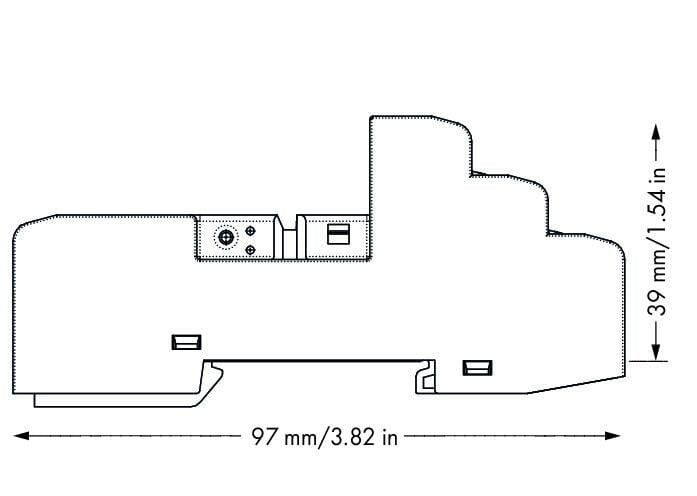

| Width | 31 mm / 1.22 inches |
| Height | 97 mm / 3.819 inches |
| Depth | 39 mm / 1.535 inches |
Mechanical data
| Montaj | DIN-35 ray |
Material Data
| Yangın yükü | 1,096 MJ |
| Ağırlık | 56,5 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -40 … +70 °C |
| Surrounding air (storage) temperature | -40 … +80 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T ambient + 30 K) |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 UR |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-03 |
| eCl@ss 10.0 | 27-37-16-03 |
| ETIM 8.0 | EC001456 |
| ETIM 8.0 | EC001456 |
| Pack. unit | 10 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | CN |
| GTIN | 4055143669078 |
| SAP tesis 01'den gümrük tarifesi no. | 85366990990 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
