Açıklama

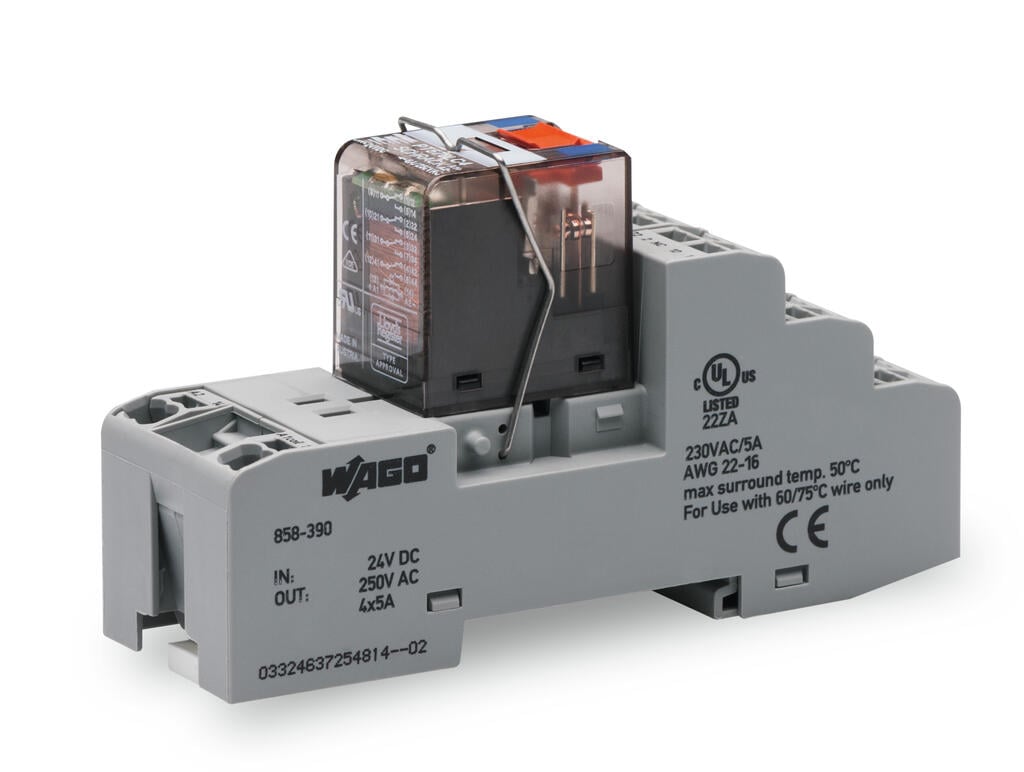

Technical Data

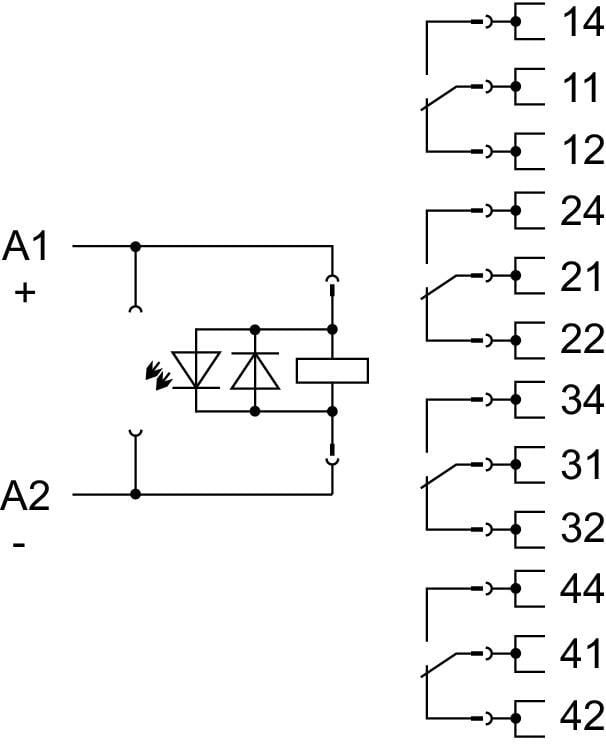

Control circuit
| Nominal input voltage U N | DC 24 V |
| Input voltage range | -10 … +30 % |
| Nominal input current at U N | 32 mA |
Load circuit
| Number of changeover/switchover contacts | 4 |
| Contact material (relay) | AgNi 90/10 |
| Limiting continuous current | 6 A |
| Max. make current (resistive) | (AC) 12 A / 0,02 s |
| Max. switching voltage | AC 250 V |
| Max. switching power (resistive) | AC 1500 VA; DC (yük limit eğrisine bakın) |
| Recommended minimum load | 12 V / 10 mA |
| Çekme süresi (tip.) | 15 ms |
| Bırakma süresi | 18 ms |
| Sıçrama süresi (tip.) | 8 ms |
| Electrical life (N.O.; resistive load; 23 °C) | 100 x 10³ switching operations |
| Mekanik ömür | 30 x 10⁶ switching operations |
| Max. switching load with load/without load | 6 min -1 / 60 min -1 |
Signaling
| Durum göstergesi | Kırmızı LED Mekanik |
Safety and protection
| Anma gerilimi | 300 V |
| Nominal ani dalgalanma gerilimi | 2,5 kV |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 2,5 kVrms |
| Dielectric strength open contact (AC, 1 min) | 1,2 kVrms |
| Dielectric strength, load/load circuit (AC, 1 min) | 2 kVrms |
| Insulation type (control/load circuit) | Basic insulation |
| Insulation type (open contact) | Functional insulation |
| Insulation type (load/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Koruma sınıfı | IP20 |
Bağlantı verisi
| Bağlantı teknolojisi | İtmeli CAGE CLAMP ® |
| Tek damarlı boylar | 0,34 … 1,5 mm² / 22 … 16 AWG |
| İnce bükümlü kablolar | 0,34 … 1,5 mm² / 22 … 16 AWG |
| Sıyırma uzunluğu | 9 … 10 mm / 0.35 … 0.39 inches |
| Not (iletken kesiti) | 2 x 0.34 … 2 x 1.5 mm² / 1 x 2.5 mm² / 2 x 22 … 2 x 16 AWG |

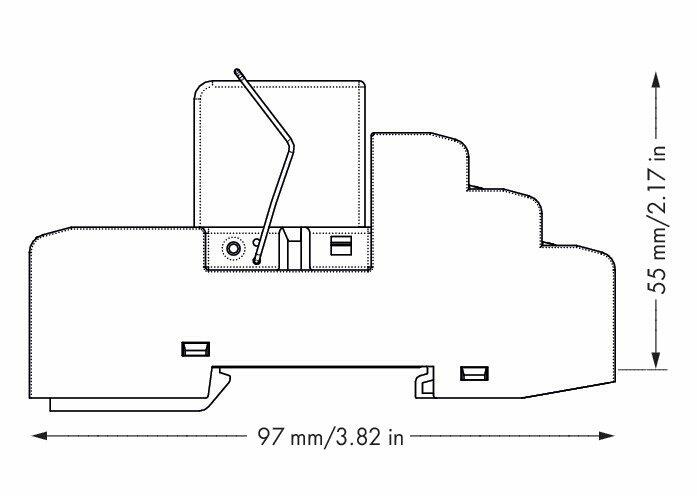

Geometrical Data
| Width | 31 mm / 1.22 inches |
| Height | 97 mm / 3.819 inches |
| Depth | 55 mm / 2.165 inches |
Mechanical data
| Montaj | DIN-35 ray |
| Montaj pozisyonu | yatay (ayakta / yatarken); dikey |
Material Data
| Yangın yükü | 1,096 MJ |
| Ağırlık | 87,2 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -40 … +70 °C |
| Surrounding air (operating) temperature for UL | -40 … 50 °C |
| Surrounding air (storage) temperature | -40 … +85 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T çevreleyen hava + 25 K) |
| Relative humidity | 5 … 85 % |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 EN 61810-1 EN 61373 UL 508 (max. 50 °C) |
Elementary relay
| WAGO elementary relay | 858-159 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 10.0 | 27-37-16-01 |
| ETIM 8.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| Recupel Type | |
| Pack. unit | 5 Adet |
| SAP'den ambalaj tipi | box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4055143567695 |
| SAP tesis 01'den gümrük tarifesi no. | 85364900990 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
