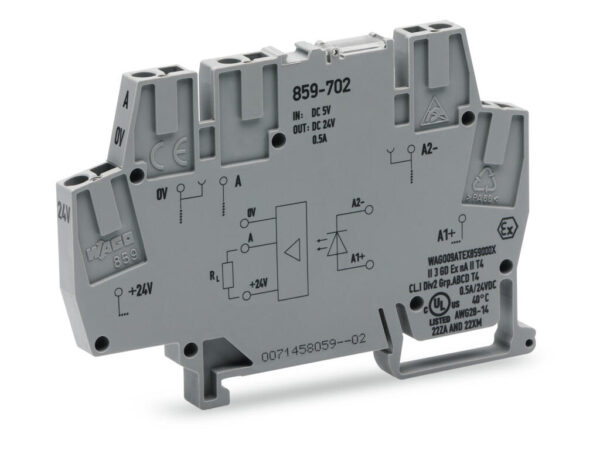

Açıklama
Notes
| Note | Optokuplörler ve katı hal röleleri, düşük voltajlı güç kaynağı ağları tarafından beslenmeyen sinyal işleme ağlarında kullanılmak üzere tasarlanmıştır. |
Technical Data

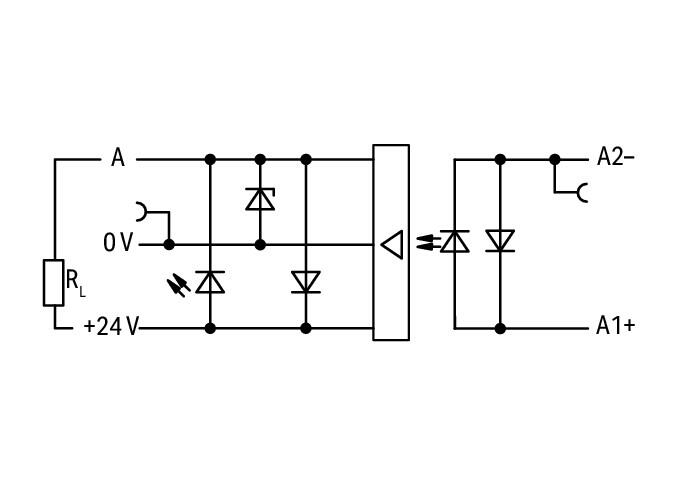

Control circuit
| Nominal input voltage U N | DC 5 V |
| Input voltage range | DC 0 … 1 V |
| Input voltage range | DC 4 … 6,25 V |
| Nominal input current at U N | 10 mA |
Load circuit
| Circuit type | 3 telli bağlantı Düşen kenar anahtarlama |
| Limiting continuous current | 0,5 A |
| Nominal output voltage | DC 24 V |
| Output voltage range | DC 20 … 30 V |
| Max. voltage drop at output | ≤ DC 1,2 V |
| Voltage drop | ≤ 1.2 VDC |
| Leakage current at nominal voltage | ≤ 10 µA |
| Max. output (reverse current) | 11 mA |
| Turn-on time | ≤ 7 µs |
| Drop-out time | ≤ 15 µs |
| Switching frequency | ≤ 10 kHz |
Signaling
| Durum göstergesi | Kırmızı LED |
Safety and protection
| Anma gerilimi | 300 V |
| Aşırı gerilim kategorisi | II |
| Kirlilik derecesi | 2 |
| Dielectric strength, control/load circuit (AC, 1 min) | 2,5 kVrms |
| Insulation type (control/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Basic insulation |
| Koruma sınıfı | IP20; in connected state or when using 859-525 end plate |
Bağlantı verisi
| Bağlantı teknolojisi | CAGE CLAMP® |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar, yalıtımlı yüksüklü | 0,08 … 1,5 mm² / 28 … 16 AWG |
| Sıyırma uzunluğu | 5 … 6 mm / 0.2 … 0.24 inches |
Geometrical Data
| Width | 6 mm / 0.236 inches |
| Height | 91 mm / 3.583 inches |
| Depth | 56 mm / 2.205 inches |
Mechanical data
| Montaj | DIN-35 ray |
| Montaj pozisyonu | yatay (ayakta / yatarken); dikey |
Material Data
| Renk | gri |
| Yangın yükü | 0,338 MJ |
| Ağırlık | 18,3 g |
Environmental Requirements
| Surrounding air (operating) temperature at U N | -25 … +55 °C |
| Surrounding air (operating) temperature for UL | -25 … +40 °C |
| Surrounding air (storage) temperature | -40 … +70 °C |
| İşlem sıcaklığı | -25 … +50 °C |
| Temperature range of connection cable | ≥ (T ambient + 20 K) |
| Relative humidity | 5 … 95 % (yoğunlaşmaya izin verilmez) |
| Max. operating altitude | 2000 m |
Standartlar ve Spesifikasyonlar
| Standartlar/spesifikasyonlar | EN 61010-2-201 EN 61000-6-2 EN 61000-6-3 EN 61373 UL 508 |
Ticari Veri
| Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 10.0 | 27-26-15-03 |
| ETIM 8.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| Recupel Type | |
| Pack. unit | 1 Adet |
| SAP'den ambalaj tipi | Box |
| SAP tesis 01'den menşei | DE |
| GTIN | 4055143604673 |
| SAP tesis 01'den gümrük tarifesi no. | 85365005000 |
Environmental Product Compliance
| CAS-No. | 1303-86-2 1317-36-8 7439-92-1 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Diboron trioxide Lead Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) 7(c)-I 7(c)-II |
