Short Specifications

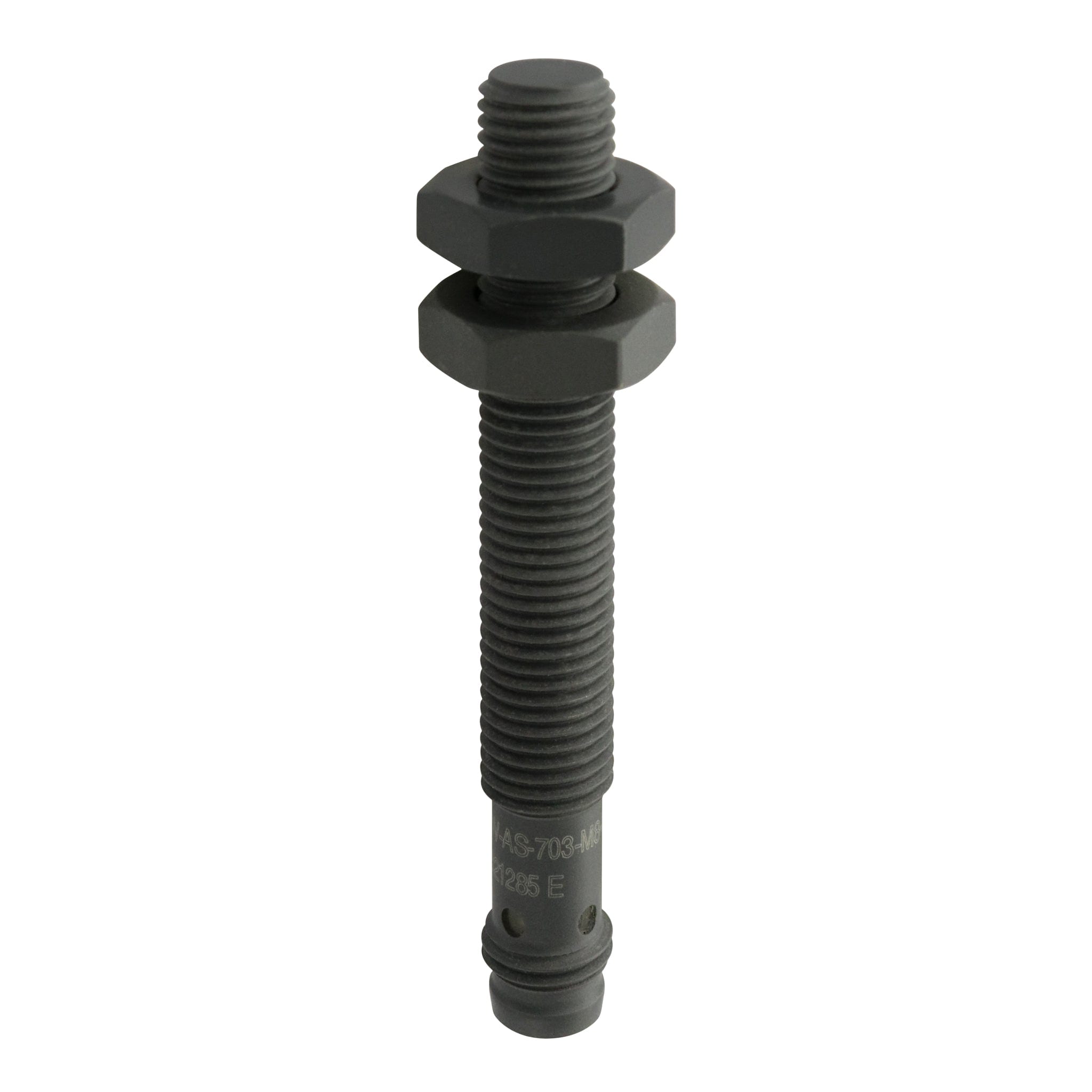

DW-AS-703-M8-693
| Operating range | 3 mm |
| Switching frequency max. | 15 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 100 bar |
| Polarity | PNP |
| Output | Normally Open (NO) |
| Connection | M8 3-pin |
| Housing size [mm] | M8 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | ActivStone-Coated S.Steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 60 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
